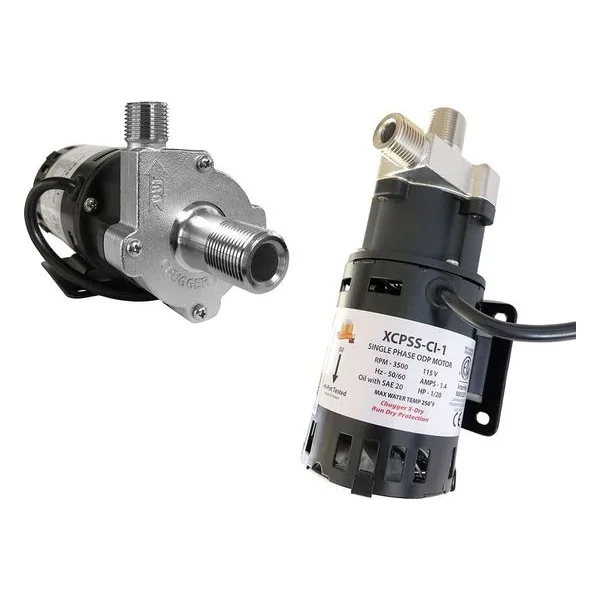

SS Center Inlet
About SS Center Inlet
Chugger-SS Center is most commonly used for homebrewing. It is a booster pump that is designed to transfer hot and cold liquids. The Chugger Pump is not a self-priming pump so DO NOT RUN DRY! The Chugger-SS Center Pump is also comparable to the March 815-SS-C Pump.
XCPSS-CI X-Dry with Run Dry Protection
Same pump as the CPSS-CI-1 but with FDA Approved Run Dry Carbon Bearing Material.
Inlet 3/4" MPT Outlet 1/2" MPT
316 STAINLESS STEEL (Front Housing), 316 Stainless Steel (Rear Housing), Teflon (Thrust Washer), CLEAR Silicone (O-Ring), Ryton/Teflon Impeller
Max Flow 7 GPM 22.7 LPM
Max Head 18.6 FT 4.1 M
Power 1/20 HP (.04 HP) .029 KW
Electrical 115V & 230V Models 50/60HZ
Non-Submersible
Motor AMP Rating - Full Load Amps (FLA)
Motor Only: 1.7 Amps
Motor and Pump: 1.9 Amps
Can handle liquids of 250F
Materials are FDA Food Compliant
Components are UL Recognized"
