Home Finish Thompson FTI AC Sealed Metallic Centrifugal PumpsAC4STS4E350B025C19

Image shown may not be actual product

AC4STS4E350B025C19

Name: AC4STS4E350B025C19 PumpCatalog Finish Thompson FTI
Brand: Finish Thompson FTI
SKU: AC4STS4E350B025C19
Price: 2164.00 USD
Availability: OutOfStock

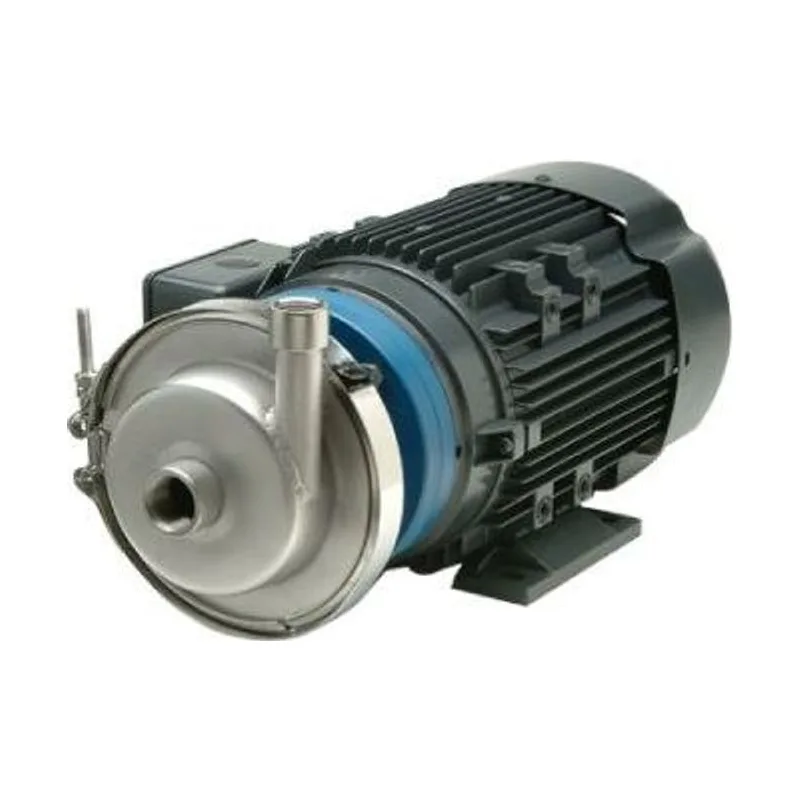

Finish Thompson AC4STS4E350B025C19, FTI AC4 Sealed Stainless Steel Centrifugal Pump, 1 x 1 Flange, 230-460 Volt, 3450 RPM, EPDM O-Ring, 3 Phase, 4 HP, 3.50" Impeller

Brand: Finish Thompson FTI

Series:

AC Sealed Metallic Centrifugal Pumps

Item: AC4STS4E350B025C19

List: ~~$2,705.00~~

$2,164.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Finish Thompson AC4STS4E350B025C19, FTI AC4 Sealed Stainless Steel Centrifugal Pump, 1 x 1 Flange, 230-460 Volt, 3450 RPM, EPDM O-Ring, 3 Phase, 4 HP, 3.50" Impeller

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	AC, AV, AK Series Pumps Brochure (2022)	View
Brochures	Chemical Processing Applications Flyer (2022)	View
Data Sheets	AC, AV, AK 4 & 5 Series Pumps Datasheet (2022)	View
Data Sheets	AP Series Series Pumps Performance Curves (2022)	View
Installation & Operation Manuals	AC4 AC5 Series Pumps Installation & Operation Manual (2022)	View

Series Information

AC Sealed Metallic Centrifugal Pumps Information

Features & Benefits
AC Series Typical Applications • Chemical processing • Plating, photo processing • Printed circuit boards • Pharmaceutical • Waste water treatment AC Sealed Metallic Centrifugal Pump Features: • Corrosion resistant 316 stainless steel • Close coupled • Back pull out design for easy service • Compact design with secure V-clamp (304 stainless steel) • Standard, recessed, or high head impellers • Bellows Type 21 seals (AC models only) • ATEX certified (AC models with ATEX motors only) • FDA compliant (AC models with Buna elastomer only) • 1.8 specific gravity with no impeller trim • Maximum temperature: 300°F (149°C) • Maximum working pressure: 100 psi (6.9 bar)
General Description
Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Popular Series

Series associated to this product and brand

Type

Title

Link

Brochures

AC, AV, AK Series Pumps Brochure (2022)

View

Brochures

Chemical Processing Applications Flyer (2022)

View

Data Sheets

AC, AV, AK 4 & 5 Series Pumps Datasheet (2022)

View

Data Sheets

AP Series Series Pumps Performance Curves (2022)

View

Installation & Operation Manuals

AC4 AC5 Series Pumps Installation & Operation Manual (2022)

View

Features & Benefits

AC Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AC Sealed Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• Bellows Type 21 seals (AC models only)
• ATEX certified (AC models with ATEX motors only)
• FDA compliant (AC models with Buna elastomer only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)

General Description

Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.
