Home Finish Thompson FTI AV Vertical Metallic Centrifugal PumpsAV8SJS1V1C6501809

Image shown may not be actual product

AV8SJS1V1C6501809

Name: AV8SJS1V1C6501809 PumpCatalog Finish Thompson FTI
Brand: Finish Thompson FTI
SKU: AV8SJS1V1C6501809
Price: 8424.00 USD
Availability: OutOfStock

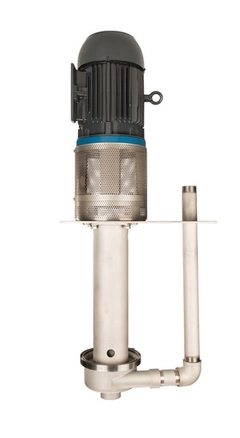

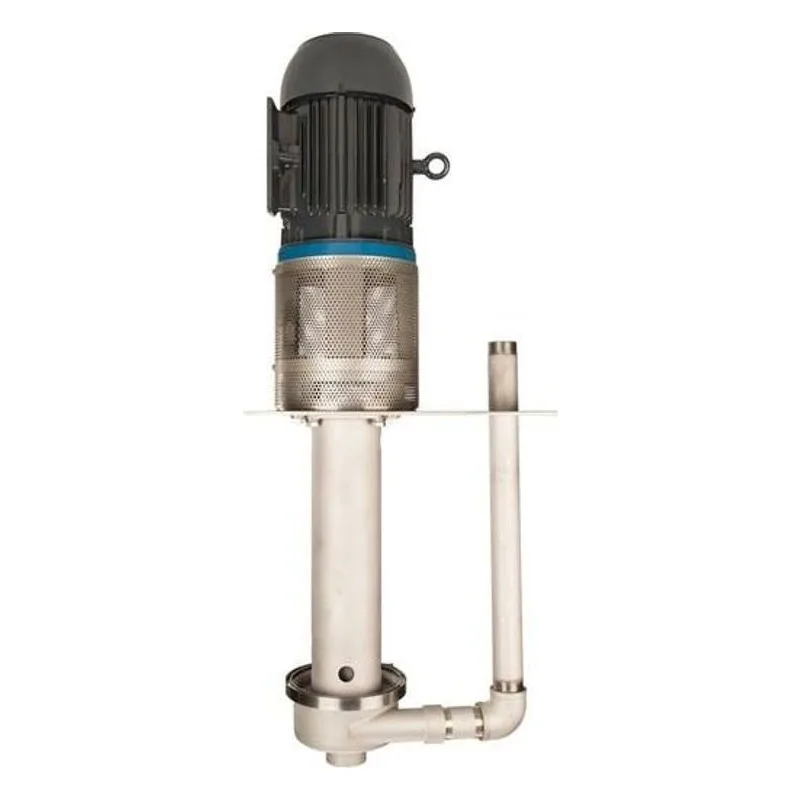

Finish Thompson AV8SJS1V1C6501809, FTI AV Series Stainless Steel Vertical Pump, AV8 2 x 1-1/2 NPT, Volt, 3450 RPM, FKM O-Ring, 3 Phase, 7 1/2 HP, 6.50" Closed design impeller, 50-60 Hz, 100 psi, 242 GPM

Brand: Finish Thompson FTI

Series:

AV Vertical Metallic Centrifugal Pumps

Item: AV8SJS1V1C6501809

List: ~~$10,530.00~~

$8,424.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	AC, AV, AK Series Pumps Brochure (2022)	View
Brochures	Chemical Processing Applications Flyer (2022)	View
Data Sheets	AC, AV, AK 6 & 8 Series Pumps Datasheet (2022)	View
Data Sheets	AP Series Series Pumps Performance Curves (2022)	View
Installation & Operation Manuals	AV6 AV8 Series Pumps Installation & Operation Manual (2022)	View

Series Information

AV Vertical Metallic Centrifugal Pumps Information

Features & Benefits
AV Series Typical Applications • Chemical processing • Plating, photo processing • Printed circuit boards • Pharmaceutical • Waste water treatment AV Vertical Metallic Centrifugal Pump Features: • Corrosion resistant 316 stainless steel • Close coupled • Back pull out design for easy service • Compact design with secure V-clamp (304 stainless steel) • Standard, recessed, or high head impellers • SS mounting plate for in-tank installation (AV models only) • FKM, EPDM, or carbon lower bushings (AV models only) • 1.8 specific gravity with no impeller trim • Maximum temperature: 300°F (149°C) • Maximum working pressure: 100 psi (6.9 bar)
General Description
AV Vertical Metallic Centrifugal Pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Popular Series

Series associated to this product and brand

Type

Title

Link

Brochures

AC, AV, AK Series Pumps Brochure (2022)

View

Brochures

Chemical Processing Applications Flyer (2022)

View

Data Sheets

AC, AV, AK 6 & 8 Series Pumps Datasheet (2022)

View

Data Sheets

AP Series Series Pumps Performance Curves (2022)

View

Installation & Operation Manuals

AV6 AV8 Series Pumps Installation & Operation Manual (2022)

View

Features & Benefits

AV Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AV Vertical Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• SS mounting plate for in-tank installation (AV models only)
• FKM, EPDM, or carbon lower bushings (AV models only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)

General Description

AV Vertical Metallic Centrifugal Pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors
and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.
