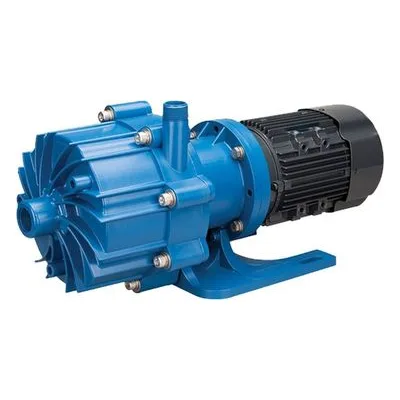

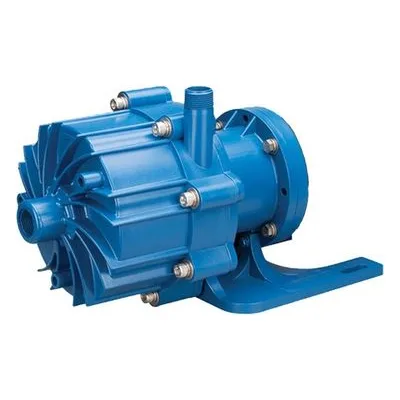

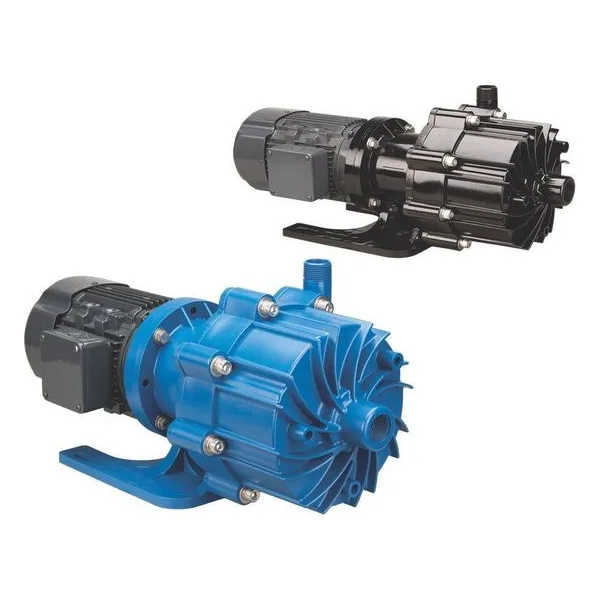

MSDB Multi Stage Sealless Centrifugal Pumps

FTI's MSDB multistage pumps are designed around the DB11 / DB15 series. Finnish Thompson's MSDB2 pump has two impellers while the MSDB3 has three impellers.

Specifically desinged to produce higher head with lower flow thanks to each stage producing the additional head. This allows the use of smaller less expensive pumps perfect for high head and low flow pumping applications.

Applications Include:

• Plating

• Water / Wastewater

• Chemical Processing

• Electronics

• Pharmaceuticals

• Wet Scrubber

• Spray Applications

• Filtration

MSDB Features:

• Multi-Stage Sealless Design

• Magnetic Drive - Neodymium High Strength Drive System

• Inner drive magnets completely encapsulated in unfilled Polypropylene or PVDF

• Polypropylene / Ryton or PVDF / Ryton construction for impecible chemical resistance

• ISO 1940 G2.5 balancing for smooth operation

• Unheard of In the Pump Industry - Five Year Warranty!

• Heads up to 300 feet / 91.5 Meters

• Minimum Flow 1 GPM (Gallons Per Minute) or .23 m3/hr

• Maximum Flow 69 GPM (Gallons Per Minute) or 15.7 m3/hr

Specifications:

• Suction / Discharge Port Size: 1 Inch

• Available Conenction Types: NPT, Flange or BSP

• Max Working Pressure: 135 PSI or 9.3 Bar

• Configuration: Horizontal

• O-Ring Material: FKM, EPDM, Simriz®, or Kalrez®

• Maximum Temperature: Polypropylene - 180º F (82º C) / PVDF 220º F (104º C)
