PFP-48-M3XV

Name: PFP-48-M3XV PumpCatalog Finish Thompson FTI
Brand: Finish Thompson FTI
SKU: PFP-48-M3XV
Price: 1589.60 USD
Availability: InStock

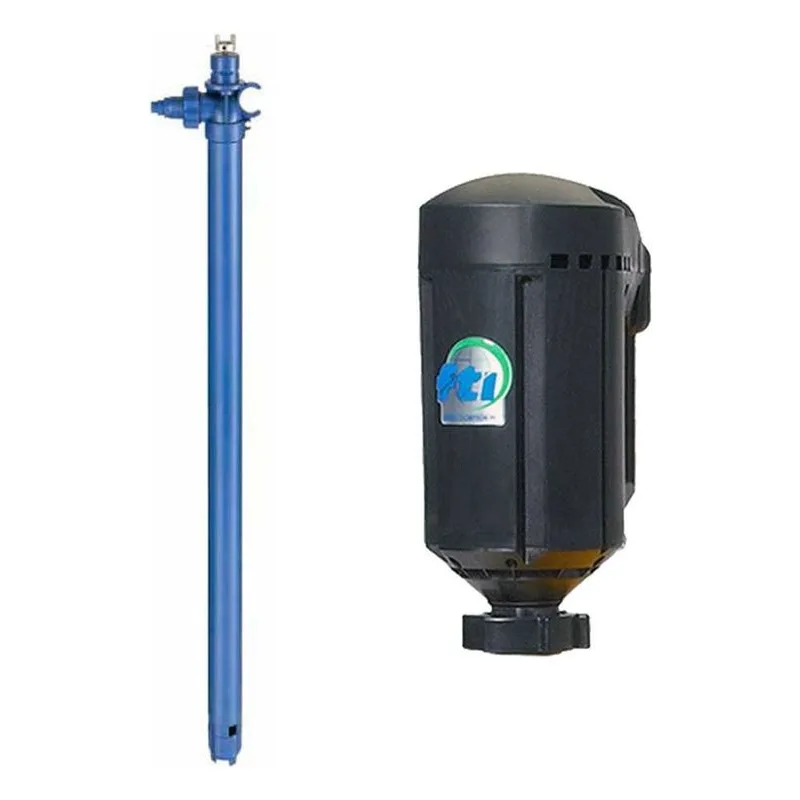

PFP-48-M3XV Finish Thompson PF Series Plastic Sealless Drum Pump & Motor, FTI DPFP007 & 110024. 40 GPM (151 LPM) Maximum Flow, 80 Feet (24m) Max Head, 115 Volt, 60 Hz, 1 Ph (Single Phase), 0-12000 RPM, XP - Explosion Proof Motor. 48" Polypropylene Tube, 1" Hose Barb Discharge, FKM O-Ring & PVDF Impeller.

Brand: Finish Thompson FTI

Series:

PF Sealless Drum Pumps

Item: PFP-48-M3XVModel #: DPFP007

List: ~~$1,987.00~~

$1,589.60

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Chemical Processing Applications Flyer (2022)	View
Brochures	Drum Pump Flow Meters FM FMBC3000 Flyer (2022)	View
Brochures	Drum Pump Flow Meters FM1000 FM2000 FMBC2000 Flyer (2022)	View
Brochures	FTI Drum Pump Accessories Flyer (2022)	View
Brochures	FTI Drum Pump Brochure (2022)	View
Brochures	FTI FDA Compliant Pumps	View
Brochures	TEFC Explosion Proof Drum Pump Motors Flyer (2022)	View
Data Sheets	Drum Pump Nozzles Datasheet (2022)	View
Data Sheets	PF Sealless Drum Pumps Datasheet	View
Data Sheets	PF Series Drum Pumps Motors Datasheet (2022)	View
Installation & Operation Manuals	MT MTV MXV Series Drum Pump Motors Operation Parts Manual (2022)	View
Installation & Operation Manuals	PF PFM PFP PFV Drum Pumps Parts Manual	View
Installation & Operation Manuals	PF Series Below Serial# 178923 Pumps Operation Installation Parts Manual (2022)	View
Installation & Operation Manuals	PF Series Drum Pumps Operation Installation Parts Manual (2022)	View
Installation & Operation Manuals	PFM PFP PFV Vapor Seal Bearing Replacement	View
Installation & Operation Manuals	PFS ATEX Drum Pumps Parts Manual	View
Installation & Operation Manuals	PFS Sealless Drum Pumps Parts Manual	View
Parts Breakdowns	DPFM001 FTI PF Drum Pump Repair Parts Exploded View	View
Parts Breakdowns	DPFM001 FTI PF Drum Pump Repair Parts Serial Number 178923 & Below	View
Parts Breakdowns	M3T FTI SF Drum Pump Motor Manual Exploded View	View

Series Information

PF Sealless Drum Pumps Information

Features & Benefits
FTI Sealless Drum Pump TB Series Features: Polypropylene, PVDF, or 316SS tubes Interchangeable with motors Greater flow control with variable orifice discharge (PFM/PFP/PFV only) Up to 2000 cP with M58P/M59P motors FDA-compliant option (Click here for more information) Built-in hose and cord clips (PFM/PFP/PFV only)
General Description
PF Series Plastic Sealless Drum Pumps PFM: Non- or mildly corrosive fluids, max temp 160˚F (71˚C) PFP: Corrosive fluids (caustics, acids, salts), max temp 160˚F (71˚C) PFV: Very corrosive fluids (concentrated acids, sodium hypochlorite), max temp 120˚F (49˚C) PF Series 316 Stainless Steel Sealless Drum Pumps PFS: Flammables, solvents, mild corrosives, & organic acids, max temp 220˚F (104˚C) PFS-MT: Flammables, solvents, mild corrosives, & organic acids w/ MNPT discharge, max temp 220˚F (104˚C) PFS-FT: Flammables, solvents, mild corrosives, & organic acids w/ FNPT discharge, max temp 220˚F (104˚C) PFS-P: Aggressive flammables, solvents, corrosives, & acids w/ Perlast o-rings, max temp 220˚F (104˚C) PFS-B & PFS-BTC: FDA compliant materials, max temp 220˚F (104˚C) FTI Sealless PF Series Applications: Acids Bases Solvents Water treatment chemicals Cleaners Plating solutions Kidney dialysis solutions DEF/AdBlue (diesel exhaust fluid)
Notes
CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit.

Popular Series

Series associated to this product and brand

Features & Benefits
FTI Sealless Drum Pump TB Series Features: Polypropylene, PVDF, or 316SS tubes Interchangeable with motors Greater flow control with variable orifice discharge (PFM/PFP/PFV only) Up to 2000 cP with M58P/M59P motors FDA-compliant option (Click here for more information) Built-in hose and cord clips (PFM/PFP/PFV only)
General Description
PF Series Plastic Sealless Drum Pumps PFM: Non- or mildly corrosive fluids, max temp 160˚F (71˚C) PFP: Corrosive fluids (caustics, acids, salts), max temp 160˚F (71˚C) PFV: Very corrosive fluids (concentrated acids, sodium hypochlorite), max temp 120˚F (49˚C) PF Series 316 Stainless Steel Sealless Drum Pumps PFS: Flammables, solvents, mild corrosives, & organic acids, max temp 220˚F (104˚C) PFS-MT: Flammables, solvents, mild corrosives, & organic acids w/ MNPT discharge, max temp 220˚F (104˚C) PFS-FT: Flammables, solvents, mild corrosives, & organic acids w/ FNPT discharge, max temp 220˚F (104˚C) PFS-P: Aggressive flammables, solvents, corrosives, & acids w/ Perlast o-rings, max temp 220˚F (104˚C) PFS-B & PFS-BTC: FDA compliant materials, max temp 220˚F (104˚C) FTI Sealless PF Series Applications: Acids Bases Solvents Water treatment chemicals Cleaners Plating solutions Kidney dialysis solutions DEF/AdBlue (diesel exhaust fluid)
Notes
CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit.
