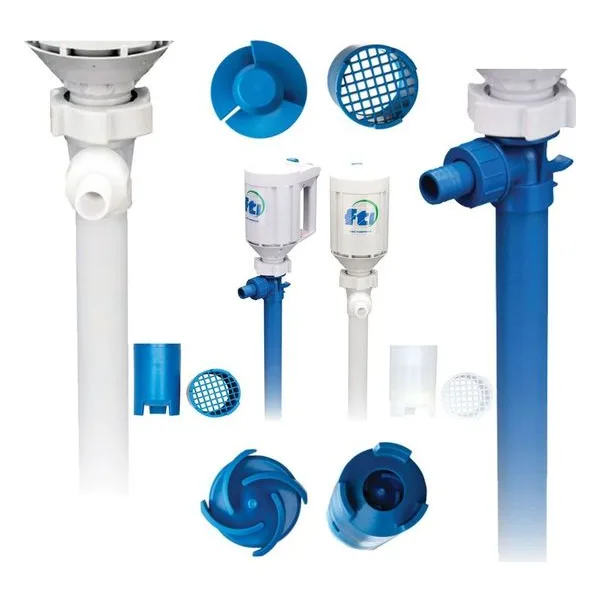

SF Sealless Drum Pumps & Motors

FTI / Finish Thompson SF Sealless Barrel / Drum Pumps - High Performance!

The SF Series is specifically designed for the transfer of chemicals, corrosives and acids between containers. There are multiple options and connections. Featureing materials best suited for specific pumping applications based on your needs. High Flow or High Head dual impeller options are available with 40mm tube diameter for small bung openings.

Pump Tube Length Options (All Models) : 27” (69 cm), 40” (102 cm), 48” (122 cm), 54” (137 cm) & 72” (183 cm)

Constructions Specifications (Outer Tube / Internals)

• SFM - PP Outer Tube, PP, 316SS, FKM, PTFE

• SFV - Pure PP / PVDF, PP, Alloy 625, FKM, ETFE, PTFE

• SFP - PP Outer Tube, PP, Alloy 625, FKM, PTFE

• SFVV - Pure PVDF, PVDF, Alloy 625, FKM, ETFE, PTFE

• SFM-DEF - PP, PP, 316SS, EPDM, PTFE

SF Pump Features Include:

• (PP) Polypropylene, Pure PVDF, Pure PP/PVDF

• Numerours Pump & Motor Option with Interchangeable Motors

• High-flow versions Contain Intergal Strainers

• Maximum Viscosity Up to 1200 cP

• Hose & Ccord Clips Built-in the Design

Applications:

• Acids, Bases, Chemicals for Water treatment, Cleaners, Plating solutions, Kidney dialysis solutions andDEF / AdBlue (Diesel Exhaust Fluid)

Motor Options

• ODP (Open Drip Proof), Splashproof, IP24 Motors

  • Quick connects to pump without tools. Downdraft cooling system and double wall housing. Continuous duty, variable speed. 12 foot (3.5 m) cord w/ integral circuit breaker.

• TEFC (Totally Enclosed Fan Cooled), IP55 Motors

  • Continuous duty. 12 ft. (3.5 m) cord with plug, downdraft cooling and quick connection to pump without tools. “T” versions feature manual reset. TV versions feature variable speed, solid state overload protection, zero voltage release.

• Explosion Proof

  • Continuous duty, IP55. 12 ft. (3.5 m) cord without plug, downdraft cooling and quick connection to pump without tools. Variable speed, solid state overload protection, zero voltage release.

• Air Motor

  • Lightweight. Operates from customer-supplied compressed air source. Variable speed. Muffler and control valve.
