SP22V-M237

Name: SP22V-M237 PumpCatalog Finish Thompson FTI
Brand: Finish Thompson FTI
SKU: SP22V-M237
Price: 7507.50 USD
Availability: OutOfStock

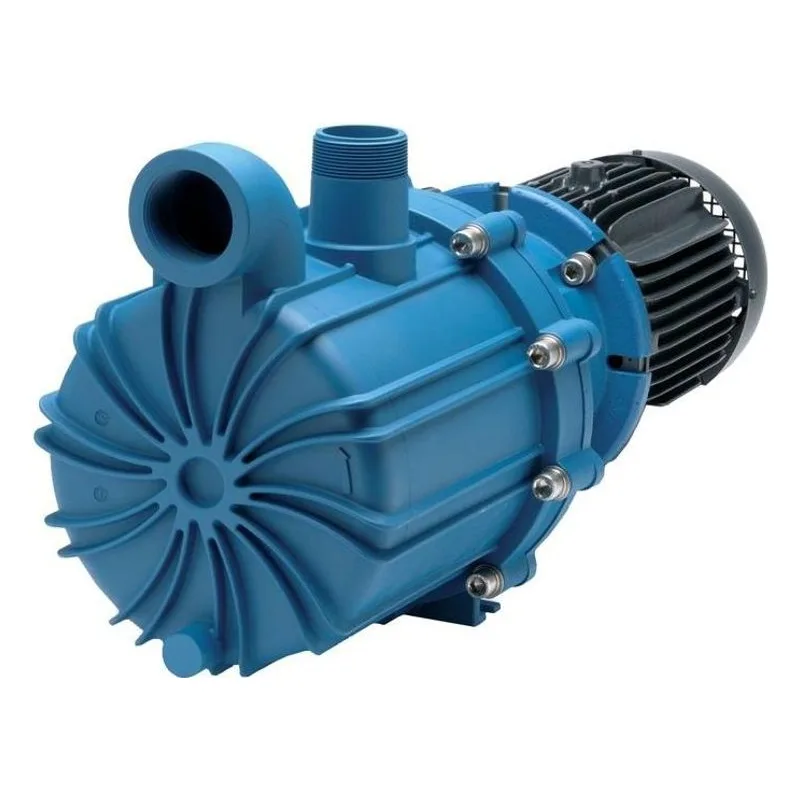

Finish Thompson SP22V-M237 Pump, FTI SP22 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 7 1/2 HP, 208-230-460 Volt, 60 HZ, 3 Phase, 2" Suction, 2" Discharge, FKM O-Ring, PVDF, 253 GPM, 90 PSI, 175 Feet of Head

Brand: Finish Thompson FTI

Series:

SP Sealless Self Priming Mag Drive Centrifugal Pumps

Item: SP22V-M237

List: ~~$9,625.00~~

$7,507.50

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Chemical Processing Applications Flyer (2022)	View
Brochures	DB, SP, MSDB Series Pumps Brochure (2022)	View
Data Sheets	DB & SP Series Baseplates Datasheet (2022)	View
Data Sheets	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)	View
Data Sheets	SP Series Sealless Self Prime Pumps Performance Curves (2022)	View
Data Sheets	SP22 Series Pumps Datasheet (2022)	View

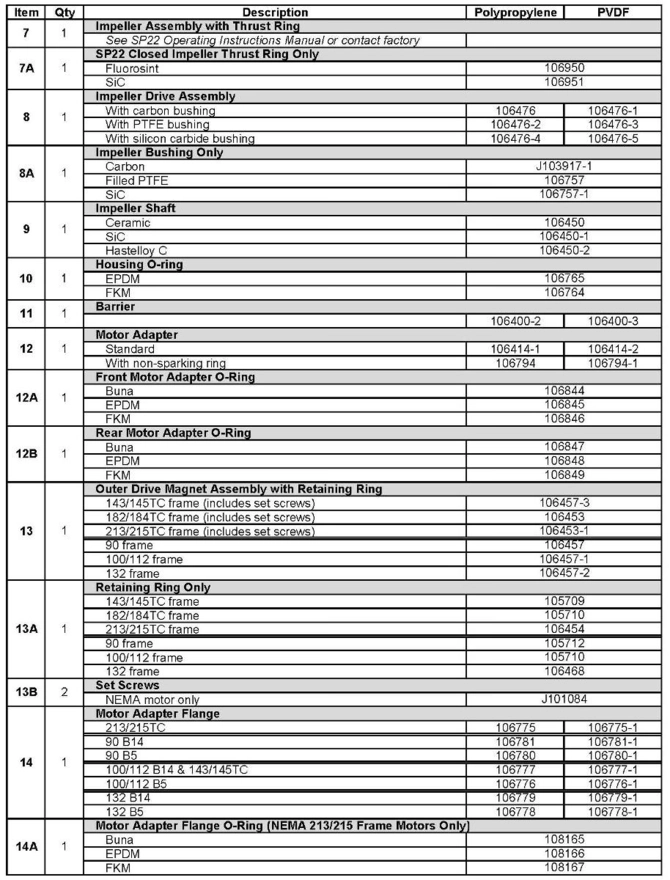

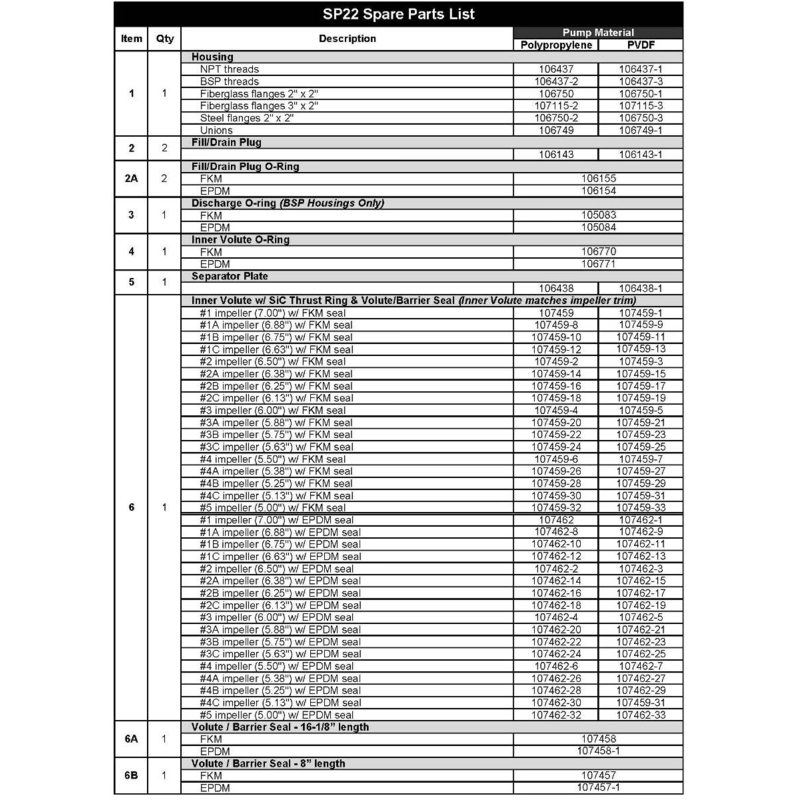

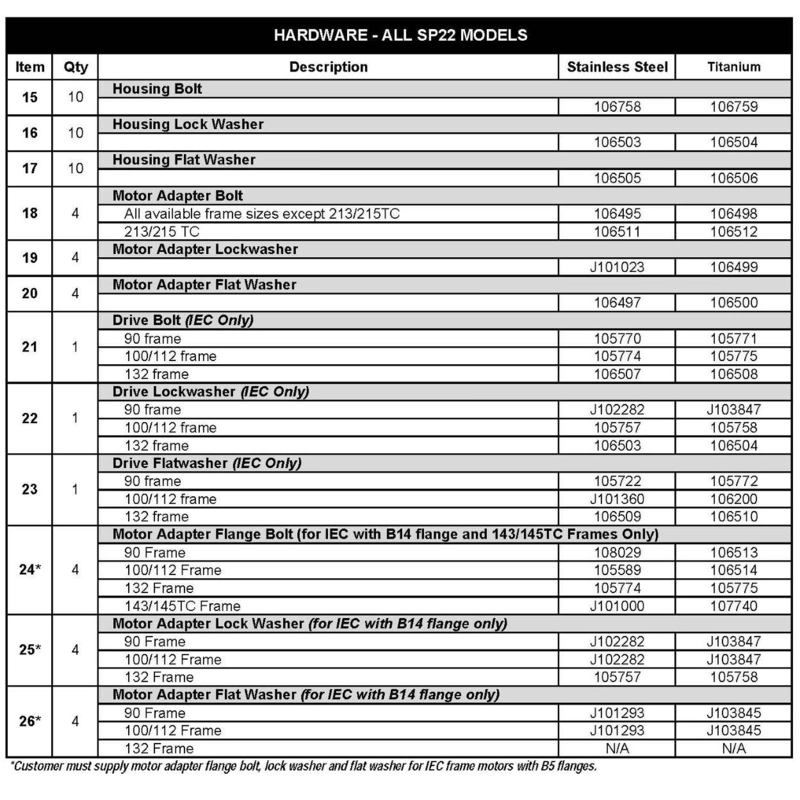

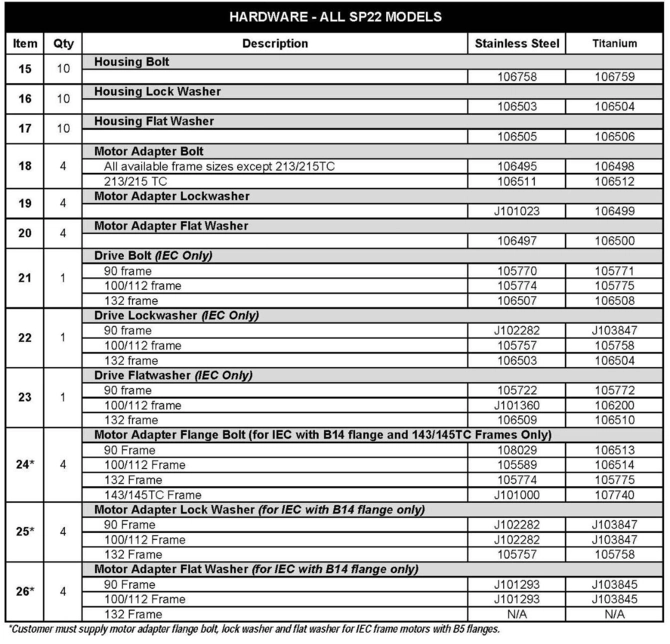

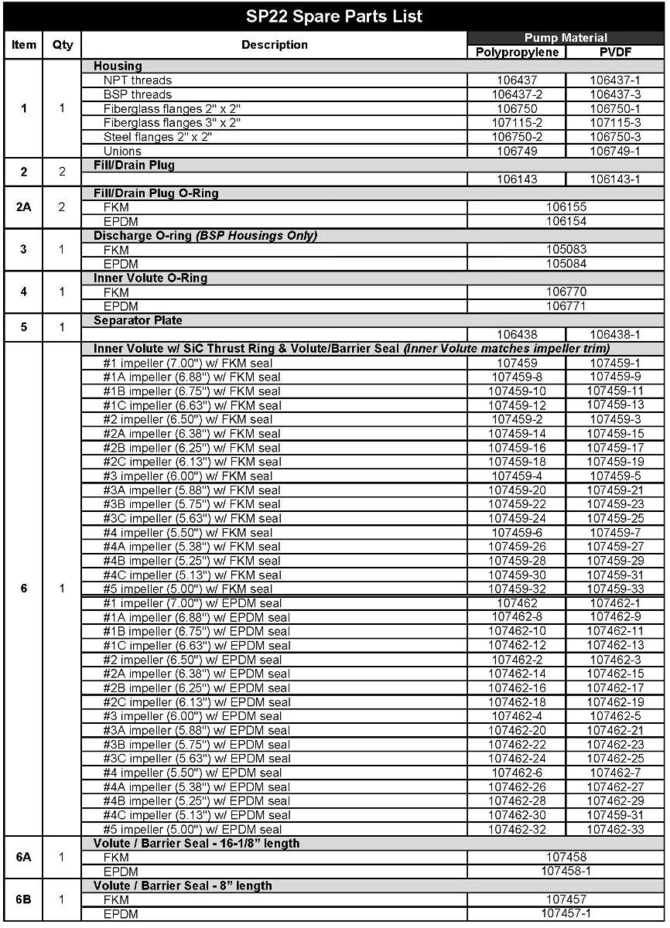

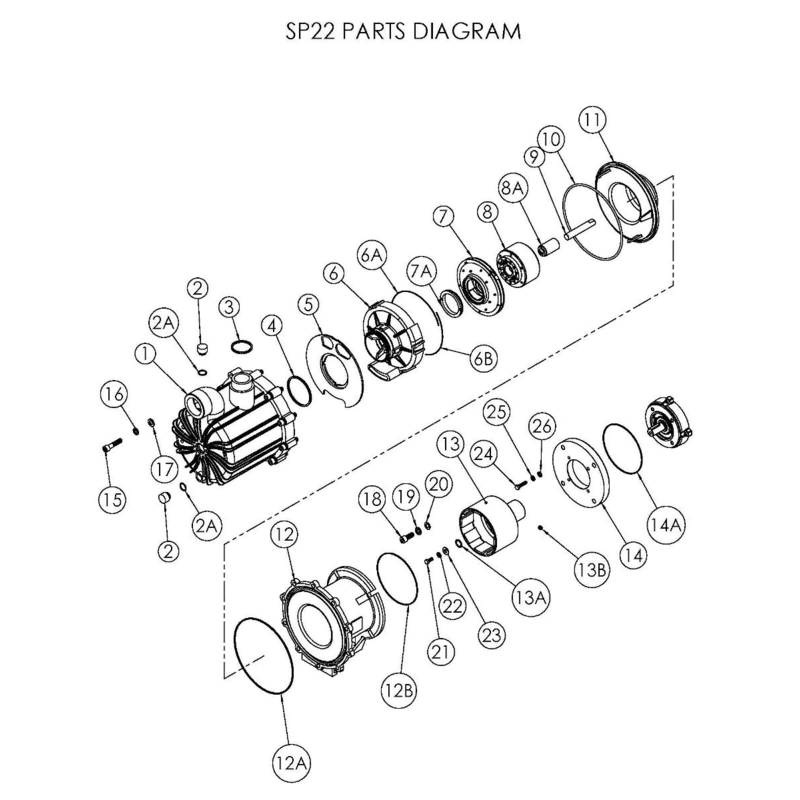

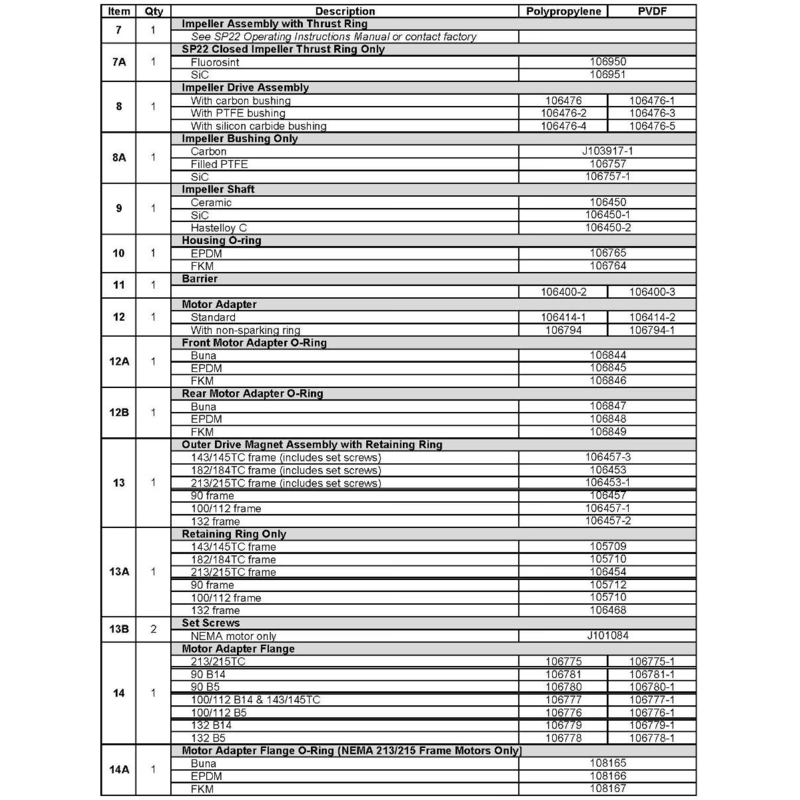

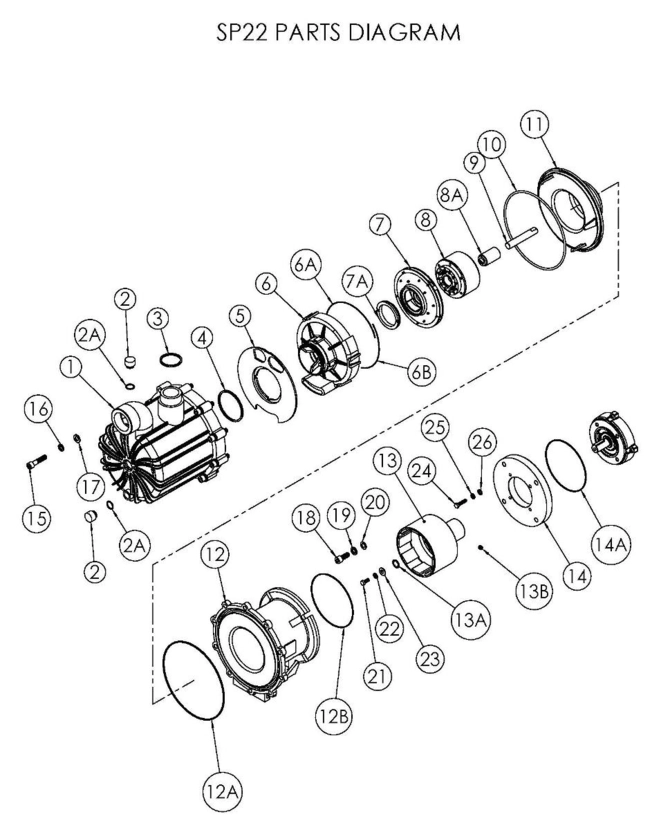

Parts Breakdowns	SP22 Series Pumps Repair Parts Breakdown & Diagram (2022)	View

Series Information

SP Sealless Self Priming Mag Drive Centrifugal Pumps Information

Features & Benefits

SP Sealless Self Priming Centrifufal Pumps Features & Capabilities:
+ Self-priming, magnetic drive
+ Five-year warranty
+ Provides up to 25 ft. (7.6 m) lift or equivalent
+ Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller. Does not apply to 1725 RPM and 200-3000 RPM models.
+ Retains fluid for re-priming when shut off without a check valve
+ Extended run dry ability (with carbon bushing)
+ High operating efficiency
+ Polypropylene or PVDF construction
+ Powerful neodymium magnets
+ Close-coupled design
+ Threaded (NPT or BSP), union or flange connections
+ Back pullout design
+ Mounts to NEMA and (B5 & B14) IEC motor frames
+ Easy set measurement free drive
+ ISO 1940 G2.5 balancing
+ CE certified
+ High working pressure up to 80 psi (5.5 bar)
+ Specific gravity over 1.8
+ Polypropylene—180o F (82o C)
+ PVDF—220o F (104o C)

Contact a PumpCatalog representative to confirm performance on 1725 rpm and 300-3000 rpm models prior to ordering.

General Description

FTI SP Series Applications:
+ Rail cars
+ Tanker trucks
+ Tanks with an opening on top
+ Bulk storage to day or process tank transfer
+ Sumps and reservoirs
+ Below grade storage tanks
+ Over-the-wall applications
+ When run-dry protection is needed
+ and many more!
