2DW1012

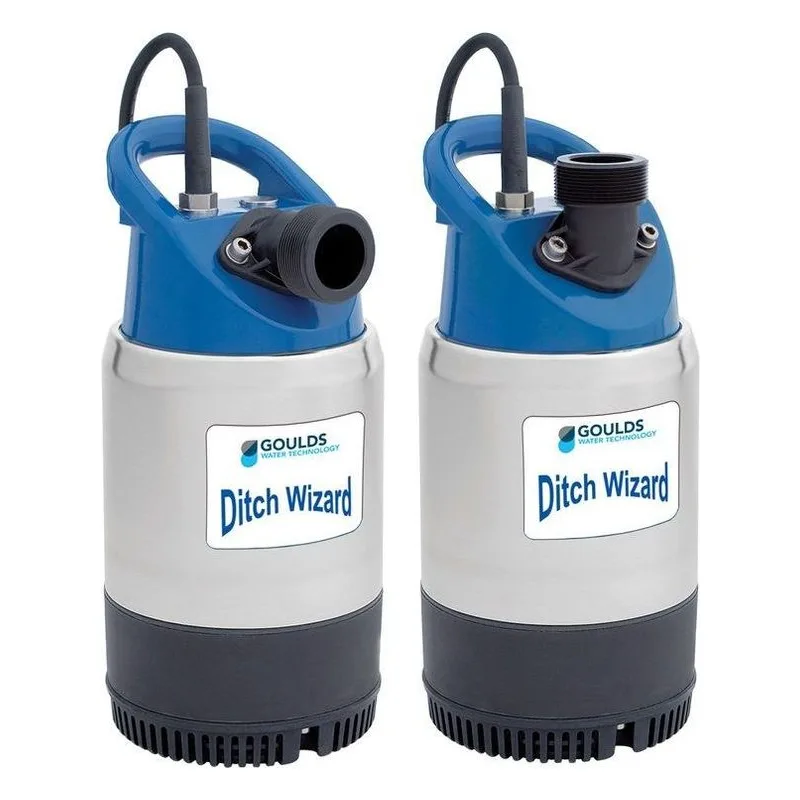

Goulds Water Technology 2DW Ditch Wizard Pump Series Range of Product Features:
Impeller: Polyurethane for wear and corrosion resistance.
Adjustable Discharge: Discharge can be installed for either vertical or horizontal installation using only 2 screws.
Diffuser: Polyurethane for wear and corrosion resistance.
Mechanical Seal: Dual seals for double leakage protection, outer seal – silicon carbide.
Rubber Liner: Protects against wear around impeller.
Bottom Strainer: Made of impact absorbing EPDM rubber, suction holes allow for low pump down.

Goulds Water Technology 2DM Submersible Dewatering Pump Specifications
• Discharge size: 2" NPSM threaded hose coupling design, can be rotated
• Capacities: up to 84 GPM
• Total heads: up to 51 feet
• Maximum solids: any particles passing through strainer
• Mechanical seals: outer seal – silicon carbide, inner seal – carbon ceramic
• Temperature limit: 95ºF (35º C) maximum
• Depth of immersion: 16.5 feet (5m) maximum

• Single phase: 3500 RPM, 1⁄2 HP and 1 HP, 115 and 230 V, 60 Hz
• Built-in starter with full overload and temperature protection.
• Class F insulation.
• Air filled design.
• Upper and lower heavy duty ball bearing construction.
• Power cord: 50 feet.
