2ED51C8DAFE

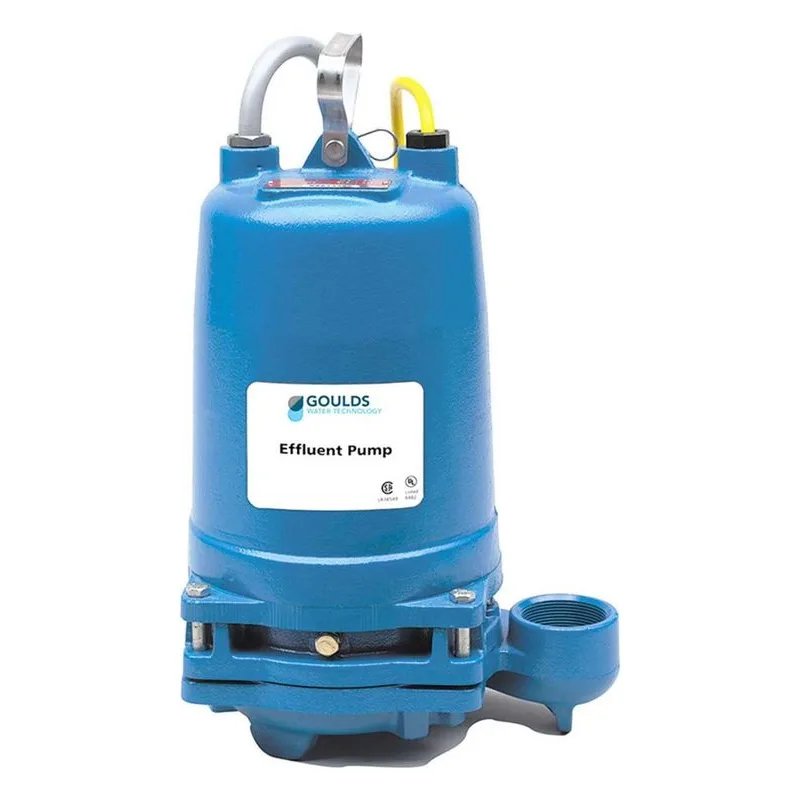

Goulds 2ED51C8DAFE 2ED Series Dual Seal Submersible Effluent Pump with Seal-Sensor Probe. 1/2 HP, 1 Ph (Single Phase), 60 Hz, 208 Volts, 3500 RPM Motor. 2" NPT Discharge, 3.56" Bronze Impeller, Carbon/Ceramic/Buna (Upper) / Sil-Carbide/Sil-Carbide/Buna (Lower) Shaft Seals, 20' Power Cord, and has Epoxy Paint, a Xylem Brand Product.

Brand: Goulds Water Technology

Series:

2ED

Item: 2ED51C8DAFE

Retail Price: $4,057.90

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Goulds 2ED Duel Seal Effluent Pump 50Hz Technical Brochure	View
Brochures	Goulds 2ED Duel Seal Effluent Pump Technical Brochure	View
Installation & Operation Manuals	Goulds 2ED Dual Seal Effluent Pump Manual	View
Installation & Operation Manuals	Goulds 2ED Duel Seal Effluent Pump Specifications	View

Series Information

2ED Information

Features & Benefits
Goulds Water Technology 2ED Pump Series Full Range of Features: Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option. Casing: Cast iron volute type for maximum efficiency. 2" NPT discharge. Dual Mechanical Seals: • Lower: SILICON CARBIDE VS. SILICON CARBIDE sealing faces. Stainless steel metal parts, BUNA-N elastomers. • Upper: CARBON VS. CERAMIC sealing faces. Stainless steel metal parts, BUNA-N elastomers. Seal Sensor Probe: Located in oil-filled chamber. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires optional Seal Fail Circuit in the control panel. Shaft: Corrosion resistant, stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation. Fasteners: 300 series stainless steel. Capable of running dry without damage to components. Designed for continuous operation when fully submerged.
General Description
Goulds 2ED Submersible Effluent Pump with Dual Seal & Seal Sensor Probe • Solids handling capabilities: ¾" maximum. • Discharge size: 2" NPT. • Capacities: up to 130 GPM. • Total heads: up to 128 feet TDH. • Temperature: 104º F (40º C) continuous, 140º F (60º C) intermittent.
Motors
• Fully submerged in high-grade turbine oil for lubrication and efficient heat transfer. • Class F insulation Single phase: • Built-in overload with automatic reset. • All single phase models feature capacitor start motors for maximum starting torque. • 1⁄3 HP – 16/3 SJTOW with 115 V or 230 V • ½ HP – 16/3 SJTOW with 230 V • ½ HP – 14/3 SJTOW with 115 V Three phase: • Overload protection must be provided in starter unit. • ½-1½ HP – 14/4 STOW with bare leads. • Designed for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits, can be operated continuously without damage when fully submerged. • Bearings: Upper and lower heavy duty ball bearing construction. • Power and Control Cable: Severe duty rated, oil and water resistant. Epoxy seal on motor end provides secondary moisture barrier in case of outer jacket damage and to prevent oil wicking. 20 foot standard with optional lengths available. • O-ring: Assures positive sealing against contaminants and oil leakage.

Related Products and Parts

Popular Series

Series associated to this product and brand

2ED51C8DAFE

Type

Title

Link

Goulds 2ED Duel Seal Effluent Pump 50Hz Technical Brochure

View

Goulds 2ED Duel Seal Effluent Pump Technical Brochure

View

Goulds 2ED Dual Seal Effluent Pump Manual

View

Goulds 2ED Duel Seal Effluent Pump Specifications

View

Features & Benefits

Goulds Water Technology 2ED Pump Series Full Range of Features:
Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option.
Casing: Cast iron volute type for maximum efficiency. 2" NPT discharge.
Dual Mechanical Seals:
• Lower: SILICON CARBIDE VS. SILICON CARBIDE sealing faces. Stainless steel metal parts, BUNA-N elastomers.
• Upper: CARBON VS. CERAMIC sealing faces. Stainless steel metal parts, BUNA-N elastomers.
Seal Sensor Probe: Located in oil-filled chamber. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires optional Seal Fail Circuit in the control panel.
Shaft: Corrosion resistant, stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation.
Fasteners: 300 series stainless steel.
Capable of running dry without damage to components.
Designed for continuous operation when fully submerged.

General Description

Goulds 2ED Submersible Effluent Pump with Dual Seal & Seal Sensor Probe
• Solids handling capabilities: ¾" maximum.
• Discharge size: 2" NPT.
• Capacities: up to 130 GPM.
• Total heads: up to 128 feet TDH.
• Temperature: 104º F (40º C) continuous, 140º F (60º C) intermittent.

Motors

• Fully submerged in high-grade turbine oil for lubrication and efficient heat transfer.
• Class F insulation
Single phase:
• Built-in overload with automatic reset.
• All single phase models feature capacitor start
motors for maximum starting torque.
• 1⁄3 HP – 16/3 SJTOW with 115 V or 230 V
• ½ HP – 16/3 SJTOW with 230 V
• ½ HP – 14/3 SJTOW with 115 V
Three phase:
• Overload protection must be provided in starter unit.
• ½-1½ HP – 14/4 STOW with bare leads.
• Designed for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits, can be operated continuously without damage when fully submerged.
• Bearings: Upper and lower heavy duty ball bearing construction.
• Power and Control Cable: Severe duty rated, oil and water resistant. Epoxy seal on motor end provides secondary moisture barrier in case of outer jacket damage and to prevent oil wicking. 20 foot standard with optional lengths available.
• O-ring: Assures positive sealing against contaminants and oil leakage.
