WS1012BF

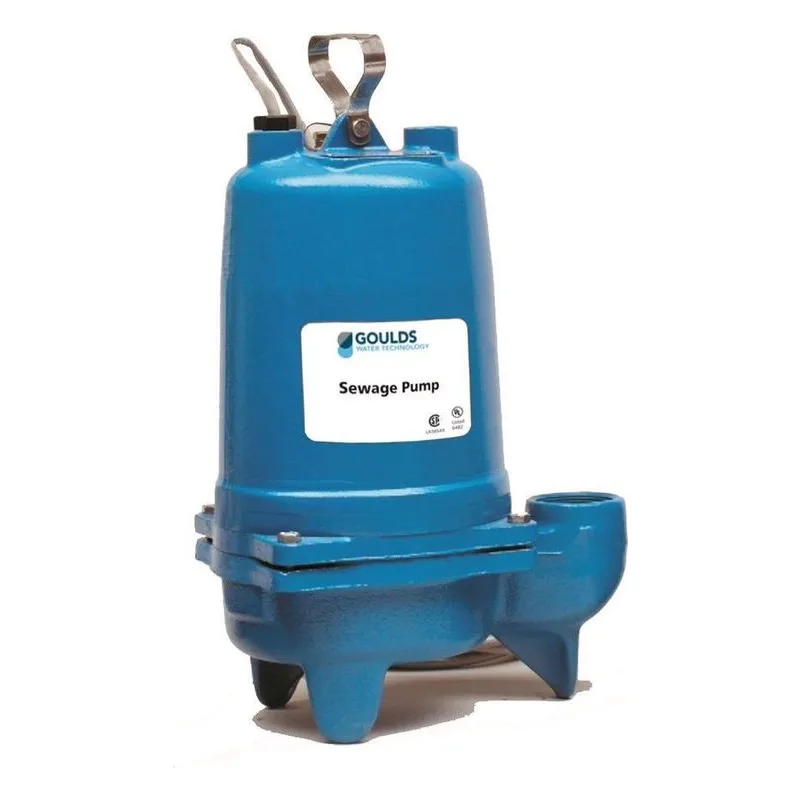

Goulds WS1012BF WS BH 3887 Series Submersible Sewage Pump, 1 HP, 1750 RPM, 5.75" Impeller Size, 230 Volt, 60 Hz, Single Phase, Up To 185 GPM, Up To 38' TDH Heads To, 2" Companion Flange Discharge, 12.3 Max Amps, 2" Solids Handling

Brand: Goulds Water Technology

Series:

3887 BF

Item: WS1012BF

Retail Price: $2,200.80

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Goulds WS BF 3887 50Hz Technical Brochure	View
Brochures	Goulds WS BF 3887 Technical Brochure	View
Installation & Operation Manuals	Goulds WS BF 3887 50Hz Specifications	View
Installation & Operation Manuals	Goulds WS BF 3887 Installation, Operation & Maintenance Instruction Manual	View
Installation & Operation Manuals	Goulds WS BF 3887 Specifications	View
Parts Breakdowns	Goulds WS BF 3887 Repair Parts	View

Series Information

3887 BF Information

Features & Benefits
Goulds Water Technology WS BH 3887 Pump Series Full Range of Features: Impeller: Cast iron, semi-open, non-clog, dynamically balanced with pump out vanes for mechanical seal protection. Casing: Cast iron flanged volute type for maximum efficiency. Designed for easy installation on A10-20 slide rail or base elbow rail systems. Mechanical Seal: SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers. Shaft: Corrosion-resistant, 300 series stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation. Fasteners: 300 series stainless steel. Capable of running dry without damage to components. Designed for continuous operation when fullysubmerged.
General Description
Goulds WS BH Series Model 3887 Submersible Sewage Pump • Solids handling capabilities: 2" maximum • Capacities: up to 185 GPM • Total heads: up to 38 feet TDH • Discharge size: 2" NPT threaded companion flange as standard. 3" option available but must be ordered separately. (Order no. A1-3) • Temperature: 104°F (40°C) continuous, 140°F (60°C) intermittent.
Motors
• Fully submerged in high grade turbine oil for lubrication and efficient heat transfer. All ratings are within the working limits of the motor. • Class B insulation Single phase (60 Hz): • Capacitor start motors for maximum starting torque. • Built-in overload with automatic reset. • SJTOW or STOW severe duty oil and water resistant power cords. • 1⁄3 – 1 HP models have NEMA three prong grounding plugs. Three phase (60 Hz): • Class 10 overload protection must be provided in separately ordered starter unit. • STOW power cords all have bare lead cord ends. • Bearings: Upper and lower heavy duty ball bearing construction. • Designed for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits, can be operated continuously without damage when fully submerged. • Power Cable: Severe duty rated, oil and water resistant. Epoxy seal on motor end provides secondary moisture barrier in case of outer jacket damage and to prevent oil wicking. Standard cord is 20'. Optional lengths are available. • Motor Cover O-ring: Assures positive sealing against contaminants and oil leakage.

Related Products and Parts

Popular Series

Series associated to this product and brand

Type

Title

Link

Goulds WS BF 3887 50Hz Technical Brochure

View

Goulds WS BF 3887 Technical Brochure

View

Goulds WS BF 3887 50Hz Specifications

View

Goulds WS BF 3887 Installation, Operation & Maintenance Instruction Manual

View

Goulds WS BF 3887 Specifications

View

Goulds WS BF 3887 Repair Parts

View

Features & Benefits

Goulds Water Technology WS BH 3887 Pump Series Full Range of Features:
Impeller: Cast iron, semi-open, non-clog, dynamically balanced with pump out vanes for mechanical seal protection.
Casing: Cast iron flanged volute type for maximum efficiency. Designed for easy installation on A10-20 slide rail or base elbow rail systems.
Mechanical Seal: SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers.
Shaft: Corrosion-resistant, 300 series stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation.
Fasteners: 300 series stainless steel.
Capable of running dry without damage to components.
Designed for continuous operation when fullysubmerged.

General Description

Goulds WS BH Series Model 3887 Submersible Sewage Pump
• Solids handling capabilities: 2" maximum
• Capacities: up to 185 GPM
• Total heads: up to 38 feet TDH
• Discharge size: 2" NPT threaded companion flange as standard. 3" option available but must be ordered separately. (Order no. A1-3)
• Temperature: 104°F (40°C) continuous, 140°F (60°C) intermittent.

Motors

• Fully submerged in high grade turbine oil for lubrication and efficient heat transfer. All ratings are within the working limits of the motor.
• Class B insulation
Single phase (60 Hz):
• Capacitor start motors for maximum starting torque.
• Built-in overload with automatic reset.
• SJTOW or STOW severe duty oil and water resistant power cords.
• 1⁄3 – 1 HP models have NEMA three prong grounding plugs.
Three phase (60 Hz):
• Class 10 overload protection must be provided in separately ordered starter unit.
• STOW power cords all have bare lead cord ends.
• Bearings: Upper and lower heavy duty ball bearing construction.
• Designed for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits, can be operated continuously without damage when fully submerged.
• Power Cable: Severe duty rated, oil and water resistant. Epoxy seal on motor end provides secondary moisture barrier in case of outer jacket damage and to prevent oil wicking. Standard cord is 20'. Optional lengths are available.
• Motor Cover O-ring: Assures positive sealing against contaminants and oil leakage.
