WS2012D3

Goulds Water Technology WS D3 Series Full Range of Features:
Impeller: Cast iron, ASTM A48, Class 30, two vane semi-open, non-clog design with pump out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller is an option.
Casing: Heavy duty gray cast iron, ASTM A48, Class 30. Volute type casing with 3", 125#, ANSI flanged, horizontal discharge. Compatible with A10-30 cast iron or A10-30B cast iron and brass (non-sparking) guide rail assembly.
Dual Mechanical Seals: Silicon carbide vs. silicon carbide outer seal and ceramic vs. carbon inner seal, stainless steel metal parts, BUNA-N elastomers. Upper and lower shaft seals are positioned independently and are separated by an oil-filled chamber.
Shaft: 300 series stainless steel keyed design.
Fasteners: 300 series stainless steel.
Capable of running dry temporarily without damage to seals or motor.

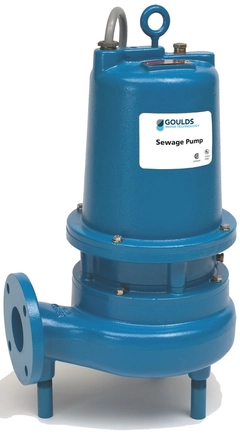

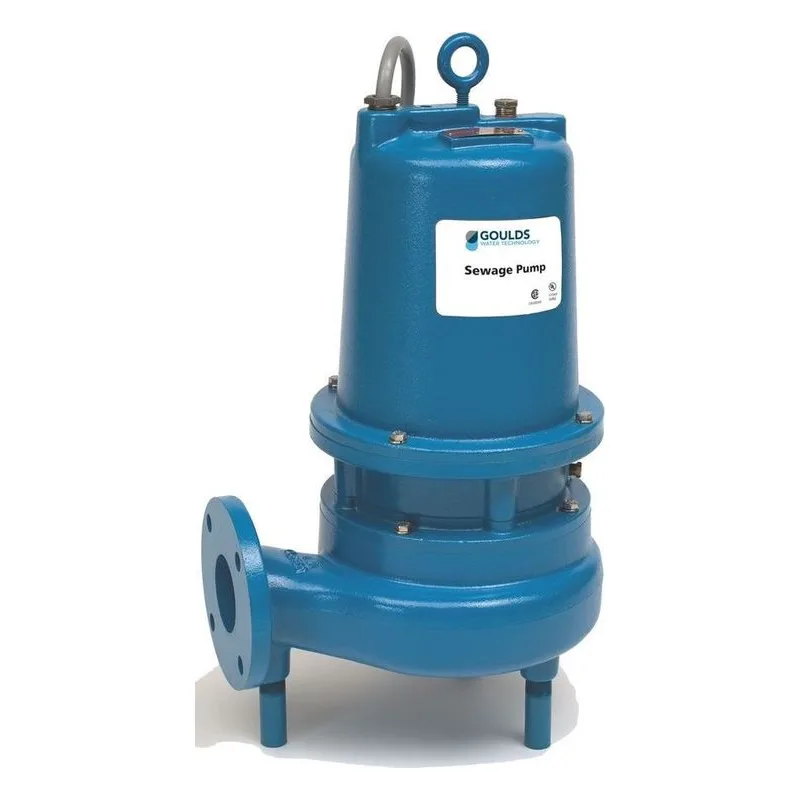

Goulds WS D3 Series Model 3888 Submersible Sewage Pump
• Maximum solid size: 2.5”
• Discharge size: 3”, 125 # ANSI flange
• Maximum capacity: 470 GPM
• Maximum total head: 65 feet
• 300 Series stainess steel fasteners
• 20’ Power cord
• Standard silicon carbide/silicon carbide outer seal

• Maximum ambient temperature: 104º F (40º C) continuous duty, 140º F (60º C) intermittent duty
• Rated for continuous duty when fully submerged
• Insulation: Class F
• 60 Hertz
• Single row ball bearings
• 300 Series stainless steel keyed shaft
Single Phase:
• 1.5 - 5 HP; 208 and 230 volts
• Built-in thermal overloads with automatic reset
• Built-in capacitors
Three Phase:
• 1.5 - 5 HP; 200, 230, 460 and 575 volts
• Class 10 overload protection must be provided in control panel

• Fully submerged in oil-filled chamber: High grade turbine oil surrounds motor for more efficient heat dissipation, permanent lubrication of bearings and mechanical seal for complete protection against outside environment.
• Class F insulation
• Designed for Continuous Operation: Pump ratings are within the motor manufacturer’s recommended working limits and can be operated continuously without damage when fully submerged.
• Bearings: Upper and lower heavy duty ball bearing construction for precision positioning of parts and to carry thrust loads.
• Power Cable: Severe duty rated, oil and water resistant. Epoxy seal on motor end provides secondary moisture barrier in case of outer jacket damage and to prevent oil wicking. 20 foot standard with optional lengths available.
• O-ring: Assures positive sealing against contaminants and oil leakage.
