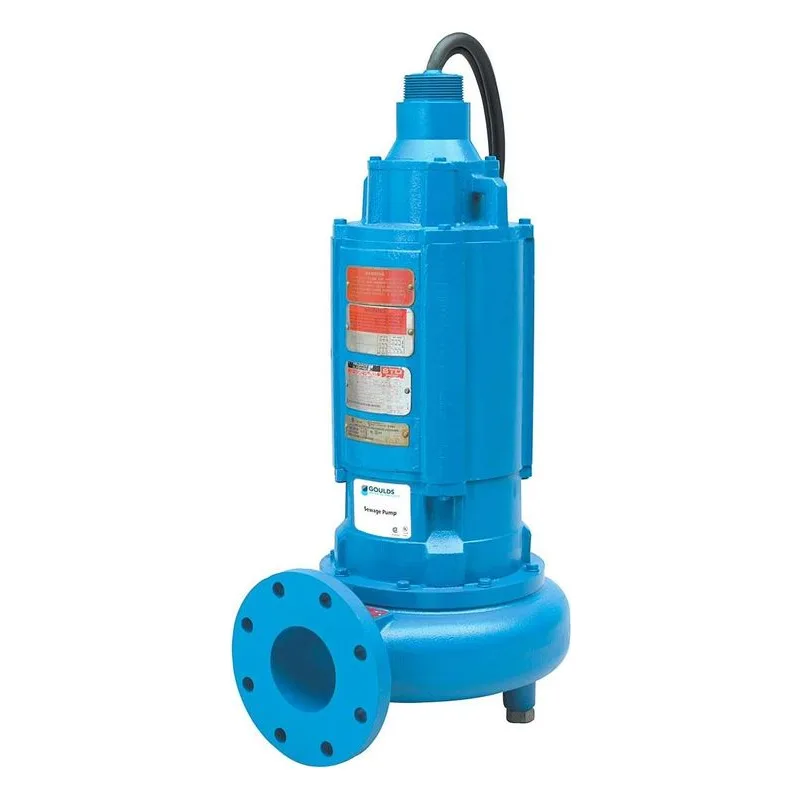

4SDX12J2JF

Goulds Water Technology 4SDX Pump Series Full Range of Features:
Casing: Heavy duty gray cast iron, ASTM A48, Class 30. Volute type casing with 4”, 125#, flanged, horizontal discharge conforming to ANSI standards. Compatible with A10 40, A10-60 cast iron or A10-40Booster, A10-60B cast iron and brass (non-sparking) slide rail assembly.
Seals: Tandem mechanical seal system in an oil filled seal chamber. Each seal operates independently to ensure fail safe performance. Standard seals are carbon rotary and ceramic stationary. Outer seals are designed for easy replacement. Optional seals are available.
Seal Sensor Probes: Pump has a standard dual probe moisture detection system located in an oil filled seal chamber. The sensor leads must be connected to a “seal fail circuit” in the control panel.

Designed for a variety of hazardous commercial and industrial applications such as:
• Sewage systems
• Flood and pollution control
• Dewatering and effluent
• Hospitals
• Trailer courts
• Hotels and motels

Goulds Water Technology 4SDX Explosion Proof Submersible Sewage Pump Class 1, Division 1, Groups C & D Hazerdous Locations:
• Maximum solid size: 3”
• Discharge size: 4” ANSI 125# Flange
• Maximum capacity: 650 GPM
• Maximum total head: 52’

Motor Specifications:
• Maximum ambient temperature: 40º C (104º F)
• Rated for continuous duty with motor fully submerged
• Service Factor: 1.15
• HP range: Single phase: 2 to 3 HP, Three phase: 2 to 7.5 HP
• 60 Hz Voltages available: Single phase: 230, Three phase: 200, 230, 460 and 575
• Insulation: Class F
• Single row ball bearings

Cast iron, ASTM A48, Class 30, two vane semi-open, non-clog design with pump out vanes for mechanical seal protection. Computer balanced for smooth operation. Silicon bronze impeller is an option.
