Home Goulds Water Technology AquaCase Residential Pressure Boosting SystemAC10

Image shown may not be actual product

AC10

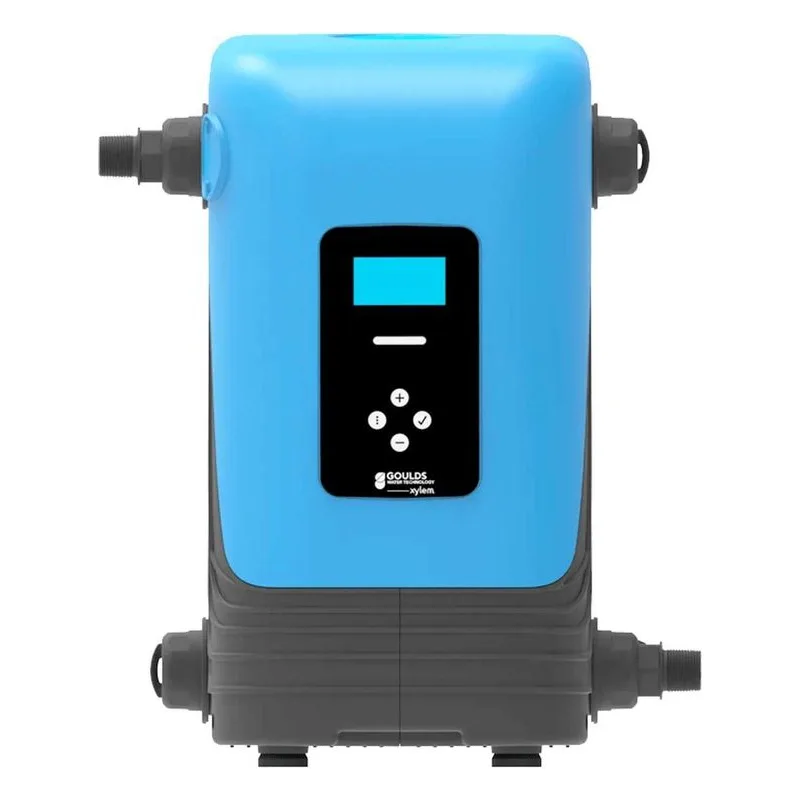

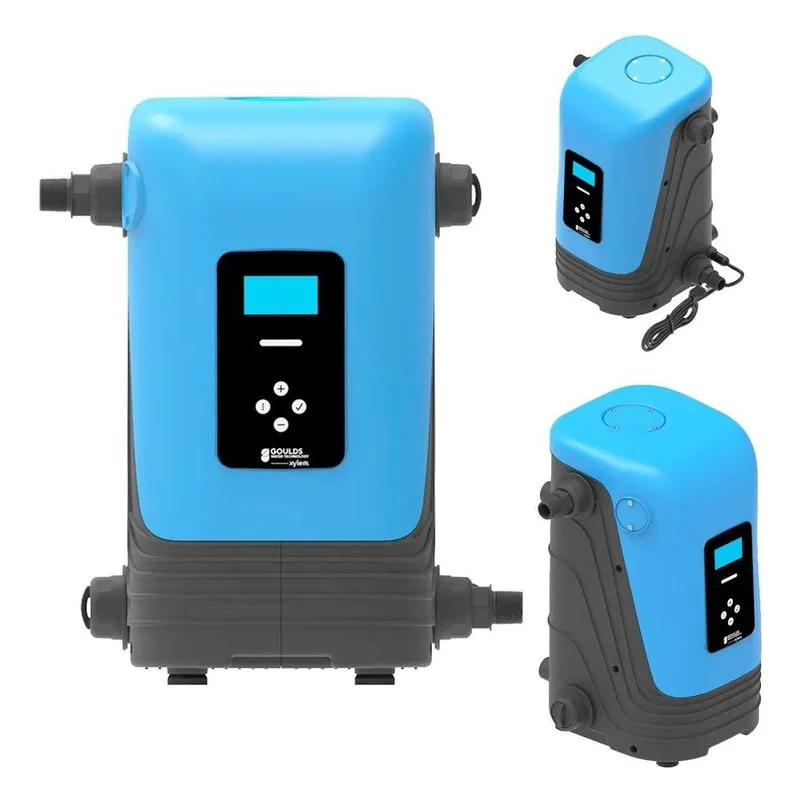

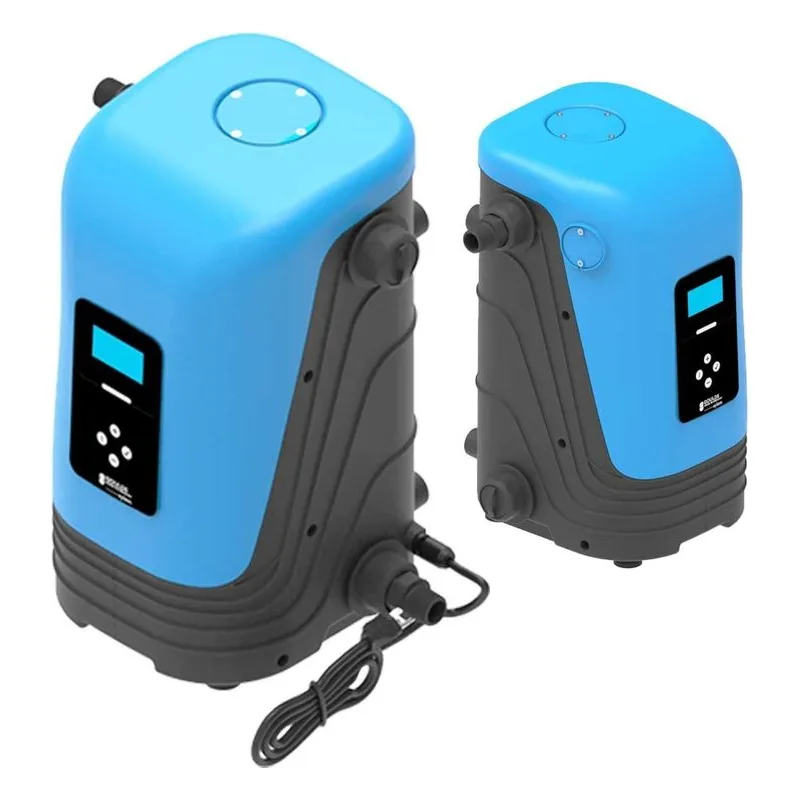

Goulds AC10 is a compact, single‑phase (1PH) booster system designed for fast installation and dependable performance. It features a variable speed pump for consistent pressure, along with built‑in Wi‑Fi and Bluetooth® connectivity for easy remote monitoring and control. Suitable for both indoor and outdoor use, the AC10 operates on 115V or 230V, delivering up to 10 GPM at 56 PSI on 115V and 20 GPM at 50 PSI on 230V. Maximum flow reaches 30-38 GPM depending on voltage, with a top setpoint of 80 PSI. A 6‑ft power cord and 15A breaker compatibility make installation simple and flexible.

Brand: Goulds Water Technology

Series:

AquaCase Residential Pressure Boosting System

Item: AC10

Retail Price: $1,905.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	AC10 AquaCase Brochure	View
Brochures	AC10 AquaCase Frequently Asked Questions	View
Data Sheets	Technical Brochure	View
Installation & Operation Manuals	AC10 Quick Guide	View
Installation & Operation Manuals	AquaCase Manual	View

Series Information

AquaCase Residential Pressure Boosting System Information

Product Type
Wi-Fi and Bluetooth® enabled, all-in-one pressure boosting system.
Features & Benefits
Energy efficient: Variable frequency drive (VFD) technology automatically adjusts pump speed to maintain steady pressure while reducing energy consumption. Wireless access: Built‑in Bluetooth® and Wi‑Fi provide remote monitoring and control through a free smartphone app. Versatile application: A single system designed for residential, light commercial, and irrigation use—eliminating the need for multiple product lines. Dual‑voltage ready: Supports both 115V and 230V installations, simplifying selection and stocking. Quiet performance: Advanced hydraulic design minimizes noise for a smoother, quieter operation. Fast installation: MNPT inlet and discharge connections are engineered for straightforward setup and reduced installation time. Dual‑seal protection: Primary and secondary mechanical seals work together to reduce leakage and extend system longevity. Rugged enclosure: UL Type 3R (NEMA 3R) housing shields the integrated system for reliable indoor or outdoor use. Upgradable software: Add new features and performance enhancements in the field—no need to remove the unit from service. Built‑in electrical safeguards: Integrated protection defends against over‑current, incorrect voltage, short circuits, and other electrical issues.
Specifications & Applications
The AC10 model operates on either 115V or 230V, offering flexibility for different installation requirements. At 115V, it delivers 10 GPM at 56 PSI (37.8 L/min at 3.86 BAR) with a maximum flow of 30 GPM (113.5 L/min). At 230V, it provides 20 GPM at 50 PSI (75.7 L/min at 3.45 BAR) with a maximum flow of 38 GPM (143.8 L/min). The system supports a maximum setpoint of 80 PSI and requires a 15A breaker for both voltage configurations. Applications: Residential and light commercial/irrigation environments in which low water pressure is a challenge. • Residential water pressure boosting • Basement or utility room installs • Irrigation and sprinkler systems • Cistern or holding tank systems • Multi-unit dwellings • Light commercial buildings

Related Products and Parts

Popular Series

Series associated to this product and brand

AC10

Type

Title

Link

AC10 AquaCase Brochure

View

AC10 AquaCase Frequently Asked Questions

Technical Brochure

AC10 Quick Guide

AquaCase Manual

Product Type

Wi-Fi and Bluetooth® enabled, all-in-one pressure boosting system.

Features & Benefits

Energy efficient: Variable frequency drive (VFD) technology automatically adjusts pump speed to maintain steady pressure while reducing energy consumption.

Wireless access: Built‑in Bluetooth® and Wi‑Fi provide remote monitoring and control through a free smartphone app.

Versatile application: A single system designed for residential, light commercial, and irrigation use—eliminating the need for multiple product lines.

Dual‑voltage ready: Supports both 115V and 230V installations, simplifying selection and stocking.

Quiet performance: Advanced hydraulic design minimizes noise for a smoother, quieter operation.

Fast installation: MNPT inlet and discharge connections are engineered for straightforward setup and reduced installation time.

Dual‑seal protection: Primary and secondary mechanical seals work together to reduce leakage and extend system longevity.

Rugged enclosure: UL Type 3R (NEMA 3R) housing shields the integrated system for reliable indoor or outdoor use.

Upgradable software: Add new features and performance enhancements in the field—no need to remove the unit from service.

Built‑in electrical safeguards: Integrated protection defends against over‑current, incorrect voltage, short circuits, and other electrical issues.

Specifications & Applications

The AC10 model operates on either 115V or 230V, offering flexibility for different installation requirements. At 115V, it delivers 10 GPM at 56 PSI (37.8 L/min at 3.86 BAR) with a maximum flow of 30 GPM (113.5 L/min). At 230V, it provides 20 GPM at 50 PSI (75.7 L/min at 3.45 BAR) with a maximum flow of 38 GPM (143.8 L/min). The system supports a maximum setpoint of 80 PSI and requires a 15A breaker for both voltage configurations.

Applications: Residential and light commercial/irrigation environments in which low water pressure is a challenge.

• Residential water pressure boosting
• Basement or utility room installs
• Irrigation and sprinkler systems
• Cistern or holding tank systems
• Multi-unit dwellings
• Light commercial buildings
