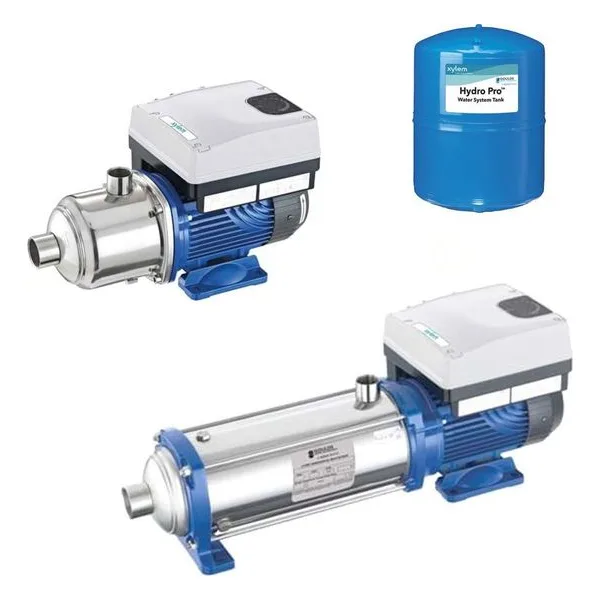

e-AB3 Booster System e-HME Packaged Smart Pump

e-AB3 Smart Pump Range Packaged Pumping System

e-HME Integrated Variable Speed Constant Pressure Systems

1/2 HP, 3/4 HP, 1 HP & 2 HP Model Configurations

Models:

• 1AB31HME04

• 1AB31HME06

• 1AB35HME03

• 2AB310HME02

• 2AB33HME08

• 2AB35HME05

• 2AB35HME06


Boosting pressures and energy reductions equal to that of the e-AB2 plus

Ultra-premium Efficiency: Features the Xylem Smart Motor, an ultra-premium IE5 permanent magnet motor and provides: - Efficiency well above a standard IE3 NEMA premium efficient asynchronous induction motor - Average of 15% in energy savings when compared to similar pumps in the market

Easy to Install: Includes a complete kit for installation: pump, Smart Motor, gauge, tank and tee › Programmed to motor electrical characteristics; just select “set pressure”

Quiet operation: High efficiency hydraulics, motor and thick metal pump body keep the noise level to a minimum

e-AB3 Features

The e-AB3 smart pump range packaged pumping system is a constant pressure booster system that is specifically designed for customers of municipal water districts with low water pressure, or those seeking a boost from a local storage tank. Featuring the e-HM pump and the Xylem Smart Motor, an ultra-premium IE5 permanent, magnet motor, the e-AB3 provides pumping efficiency well above a standard IE3 NEMA premium efficient asynchronous induction motor.

As water flows to your house, it loses some of its pressure to friction inside the pipe. The higher the flow, the more the friction reduces your water pressure. This flow increase can be caused by more homes and businesses on your water main, the size of your home piping system or increased water use in your house. As water use increases, the e-AB3 changes pump speed to keep line pressure constant. Large supply tanks are eliminated and up to 50% of the energy required by a full speed pump is saved. The e-AB3 is available with a range of flow rates to handle residential homes, irrigation systems, and office buildings. It’s a HIGH PERFORMANCE solution for both residential and commercial customers who need to increase their water pressure when water demand is high.

Pump Protection: safety and monitoring

The Smart Motor comes with a wide range of monitoring, control and safety features right out of the box with no need to configure.

In addition to these regulation functions, the Smart Motor also:

• Controls, safety features and monitoring tools

• Stops the pump at zero demand

• Stops the pump in case of water failure

• Has failure and over-temperature sensors for both the inverter and motor, which protects the pump and motor from under or over-voltage

Available control modes include:

• Control for constant pressure

• Control to match a system curve

• Control according to an external signalT

The Smart Motor offers a complete set of supervision and metering tools such as automatic test starts, auto smart cyclic change of lead and lag pump units, a memory for any inverter fault signals, and an operating-hours run counter. There’s no need to configure the product; all the listed features are already included in the standard package.
