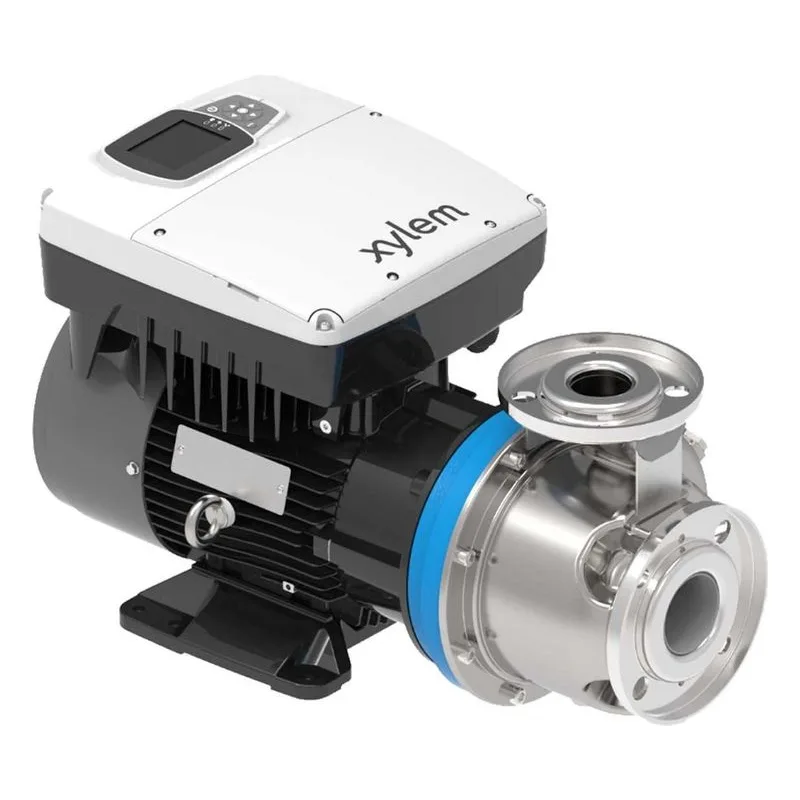

15SHX08L1544

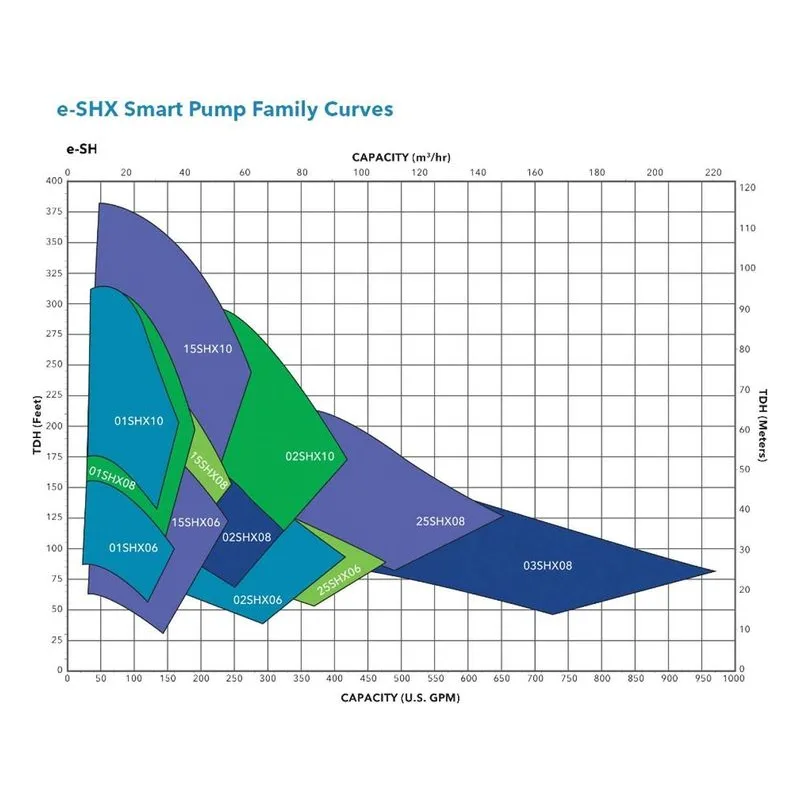

HYDRAULIC SPECIFICATIONS • Maximum flow: up to 970 GPM (220 m3/hr) • Maximum head: up to 380 ft TDH (116 m TDH) • Hydraulic performance compliant with ANSI/HI 14.6 Grade 2B • Maximum temperature: up to 250 °F (120 °C) • Maximum working pressure: 230 psi (15.8 bar) • Suction and discharge flanges: mate with ANSI class 150 flanges. • Enclosed impeller and replaceable wear ring: for high efficiency and maximum wear life. • Connection dimensions according to EN 733 (ex- cept for ESH 25 models)

MOTOR SPECIFICATIONS hydrovar X • IES2 Power drive system (PDS) efficiency (IEC 61800- 9-2:2017) • NEMA 4 enclosure • 3-Phase power supply • 3 kW to 22 kW (4 HP to 30 HP): 380-480V +/- 10%, 50/60Hz • Protection class IP 55 • RS485 Communication interface, BACnet and Mod- bus standard and BLE included • Overload and locked rotor protection with automatic reset included • Multi-pump linking (up to 8 pumps) Motor • IE5 Motor efficiency (IEC TS 60034-30-2:2016) • Rated speeds (high speed models): 3000 and 4000 RPM¹ • Insulation class 115 (Class F) • Totally enclosed fan cooled (TEFC) construction ¹ 4000 RPM data is used to determine the published net efficiency of a pump-drive system. 3600 RPM data is used to determine the net efficiency for energy efficiency listings. Pumps may or may not utilize the full speed range of hydro- var X depending on a variety of factors or limitations. PAGE 4e-SHX Series Goulds Water Technology

APPLICATIONS

The e-SHX is suitable for a wide range of non-aggressive to mildly aggressive fluids in commercial building, industrial & diverse OEM applications.

• Water intake
• Water transfer and circulation
• Pressure boosting
• Process cooling and heating
• Fluid transfer and transport
• Produced water transfer and boosting
• Boiler feed booster

PUMPED FLUIDS
• Groundwater
• Potable water
• Process water
• Gray/used water
• Heat transfer fluids
• Produced water

BENEFITS The Goulds Water Technology model e-SHX provides the following benefits:

Reliability: the high quality production, the robust construction and operation, the easily interchangeable mechanical seals, and wear rings guarantee a continuous operation without faults and a shorter down time for maintenance.

Total cost of ownership: the best hydraulic and electric efficiency and the easy and quick maintenance reduce the operation and maintenance costs and save energy.

Expert support: Since the proper selection and configuration of the e-SHX pump is critical to long-term efficiency and dependability, give us a call. We are continuously working with our customers to help them in selecting the right pump for their specific application. Solver, our user-friendly online selection tool is also available to help you configure your pump. We’ll assemble your pump and get it on its way.
