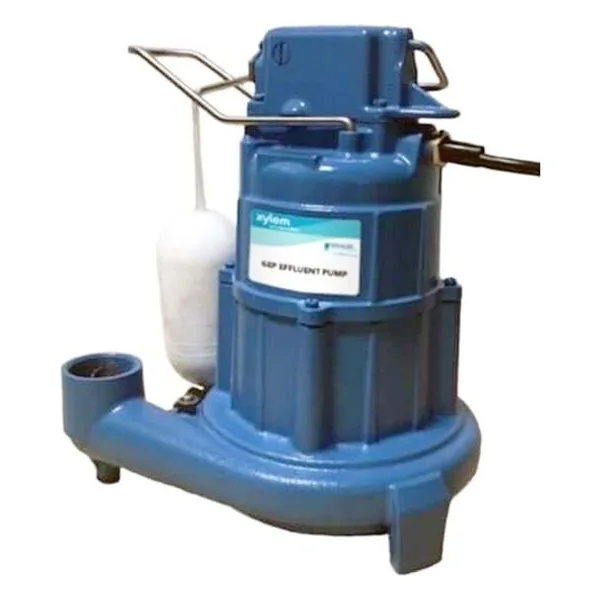

GEP Cast Iron Effluent Pumps

Goulds Water Technology Cast Iron GEP Pump Applications

Specifically Built and Designed to Drain Basements, Water Transfer, Filtered Effluent and Dewatering

GEP Features Include:

1. Reliable mechanical switch coupled with solid float for dependable performance

2. Oil-cooled motor permanently lubricated for extended service life and is powered for continuous operation

3. Premium mechanical seal design provides superior protection against sand and abrasive damage (Silicon Carbide/Silicon Carbide/BUNA)

4. Vortex impeller can handle solids up to 3/4" in size

5. Cast iron motor housing for optimal heat dissipation

6. Corrosion resistant hardware for lifetime use

7. Cast iron base

8. Built-in vent hole prevents air-binding with no added labor

9. Available in automatic and manual models

10. Approved for residential use (CSA/CUS Listed)

11. Three year warranty

Pump Specifications GEP Series

• Discharge Size: 1 ½" NPT

• Capacities: to 85 Gallons Per Minute (GPM)

• Maximum Head: 45 Foot TDH

• Maximum Solids Handling: 3/4" Spherical

• Impeller: Vortex

• Temperature: 104º F (40º C)

• Mechanical Seal: Silicon Carbide/Silicon Carbide BUNA

GEP Motor Information

• 1/2 HP & 3/4 HP, 115 & 230V, 60 Hz, Single Phase (1PH), 1750 RPM

• Automatic vertical float, manual float switch option

• Built-in Thermal Overload Protection

• Oil Filled Design

• 10', 20' and 30' Models Available. All models have NEMA three prong grounding plugs.
