GWP1111

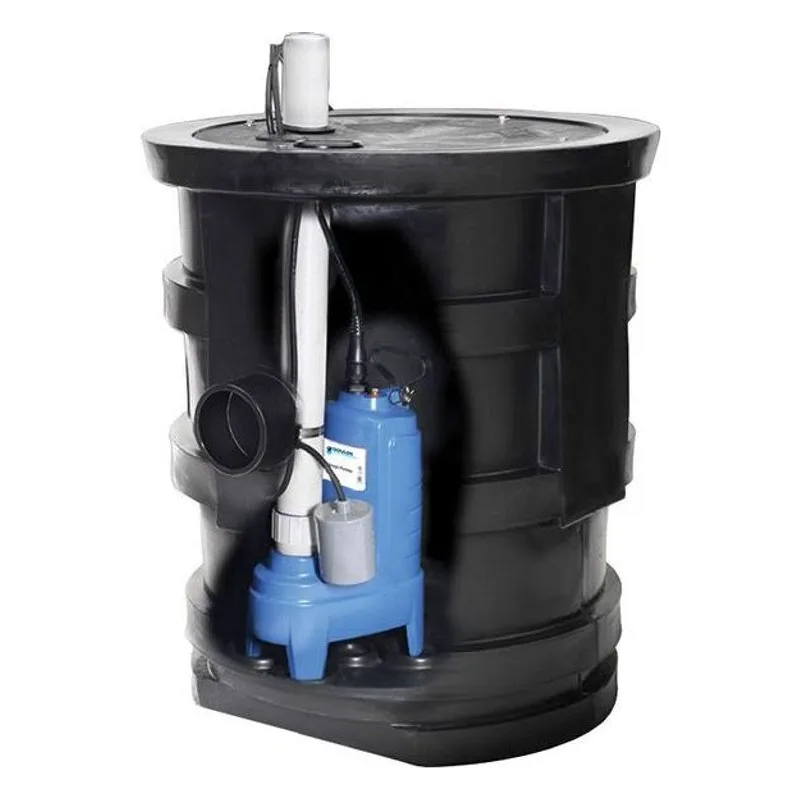

Goulds Water Technology GWP 18x30 Features & Benefits

Choice of Pumps:
• PV Vortex • PS Non-clog • WW05 Vortex
Roll Top 18x30 Polyethylene Basin.
Fully assembled at the factory for simplified installation.
Structural foam cover is strong and corrosion resistant.
Vent grommets for both 2" and 3" vent provided. Adds system flexibility and reduces inventory.
Thermoplastic 4" uniseal inlet grommet.
Factory preset mechanical float switch for dependable automatic operation.
Torque stop insert to stabilize the pump.
Swing type 2" check valve:
• A9-2PH rubber sleeve type • A9-2P compression type
Schedule 40, 2" PVC discharge pipe with 1⁄8" bleed hole is factory installed.

Goulds Water Technology GWP 23x30 Features & Benefits:
Choice of Pumps:
• PV Vortex • PS Non-clog • WW05 Vortex
Ribbed 23x30 Polyethylene Basin
Fully assembled at the factory for simplified installation.
Swing type 2" check valve:
• A9-2PH rubber sleeve type • A9-2P compression type
Schedule 40, 2" PVC discharge pipe with 1⁄8" bleed hole is factory installed.
Structural foam cover is strong and corrosion resistant.
Vent grommets for both 2" and 3" vent provided. Adds system flexibility and reduces inventory.
Torque stop insert to stabilize the pump.
Ribbed Basin Inlet Hub is a molded-in, slip-fit type for connection using flexible, slip-fit connectors and clamps (not included).

Goulds GWP Plumbers Wastewater Packages General Specifications

18 x 30 — Basin:
Roll top polyethylene basin • Usable capacity: 14 gallons
Dimensions: 18" w x 30" h • Inlet: 4" inlet grommet
23 x 30 — Basin:
Ribbed polyethylene basin • Usable capacity: 24.8 gallons
Dimensions: 23" w x 30" h • Inlet: 4" inlet hub

GWP Pumping Applications
Homes, rural water districts, parks and dewatering
Wastewater containing solids up to 2″
Sewage lift station
Anywhere waste or drainage must be disposed of quickly, quietly and efficiently
Waste drainage in new additions below sewer line
