HVB3410

Goulds HVB3410 Hydrovar Series Variable Speed Pump Control, Single Drive 3 HP, 460 Volt, 60 Hz, Three Phase

Brand: Goulds Water Technology

Series:

Hydrovar HVM (Packaged)

Item: HVB3410

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Goulds HVB3410 Hydrovar Series Variable Speed Pump Control, Single Drive 3 HP, 460 Volt, 60 Hz, Three Phase

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Goulds Pumps Hydrovar Pump Controller Brochure	View
Brochures	Goulds Pumps Hydrovar Pump Controller e-SV Technical Brochure	View
Installation & Operation Manuals	Goulds Pumps Hydrovar Pump Controller 2 HP - 15 HP Manual	View
Installation & Operation Manuals	Goulds Pumps Hydrovar Pump Controller e-SV Quick Start Guide	View
Installation & Operation Manuals	Goulds Pumps Hydrovar Pump Controller Instruction Manual	View
Installation & Operation Manuals	Goulds Pumps Hydrovar Pump Controller Performance Range	View
Installation & Operation Manuals	Goulds Pumps Hydrovar Pump Controller Specifications	View

Series Information

Hydrovar HVM (Packaged) Information

Features & Benefits
The Hydrovar Advantage • Accepts 3 different signal inputs: 0-20mA; 4-20mA and 0-10VDC • Master, Basic and Single drive options provide flexibility at lower cost • Error log and diagnostic display shows temperature and real time current and voltage • Simplified programming menu • Multiple set points available • 3 Separate start/stop inputs • Use with OFF-the–shelf TEFC 3Ø motors • KITS offer prewired drive and fused disconnect to retrofit pumps in the field • Complete e-SV Packages offer – Industry leading efficiencies – Broad performance range – Simple selection and ordering process – Factory programed and tested system
General Description

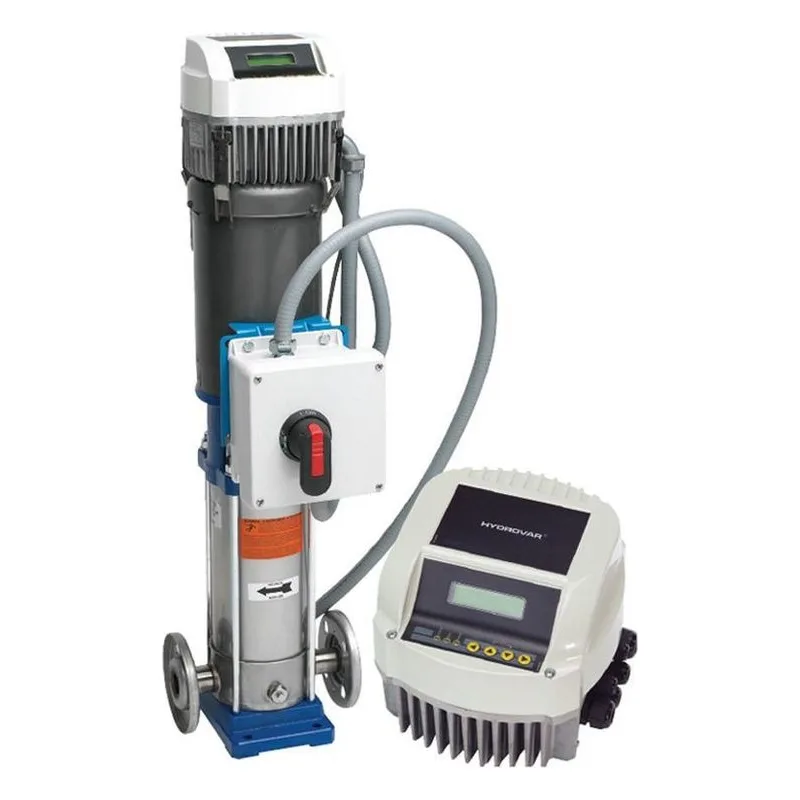

Hydrovar Variable Speed Pump Controller The HYDROVAR Pump controller is a combination of a variable frequency motor drive (VFD) and a programmable logic controller (PLC) in one compact package. It mounts on the fan cover of the TEFC pump motor. Each controller is pre-programmed with patented pump specific software. Controllers are specifically designed to work with all configurations of centrifugal pumps, matching pump output to varying system conditions while protecting the pump, the motor and the pumping system.
