A Full Range of Product Features for Goulds Water Technology Pumps ICS & ICS-F Series
Superior Materials of Construction: Precision invest-ment cast 316 stainless steel liquid end components for corrosion resistance and strength.
Frame Mounted Design: Flexibility of installation and driver arrangements.
Open Impeller Design: Spherical handling to 3⁄8” reduces chance of clogging and required maintenance time.
Back Pull-Out Design: Simplifies maintenance by allowing the casing to remain in the piping during disassembly.
Close-Coupled Design: Compact design saves space and simplifies installation.
Casing Features: Investment cast 316 stainless steel construction with NPT threaded suction and discharge, optional drain and vent with stainless steel plugs. Four position discharge orientation.
Mechanical Seals: Standard Flowserve 31 seal with carbon versus silicon-carbide faces, Viton elastomers and 316 stainless steel metal parts. Optional seals are available for high temperature and mild abrasive services.
Drive Motors: NEMA standard 56J frame motors with rugged ball bearing design for continuous duty. Versions are available in both single and three phase with a variety of enclosures and voltage to match your service requirements.

ICS / ICS-F Applications
Designed for ultra pure water, chemical and general services. Specific uses are for:
• Washer equipment
• Ultra pure water systems
• Scrubbers
• Chemical transfer
• Water reclamation and treatment
• Beverage processing
• Pharmaceutical service

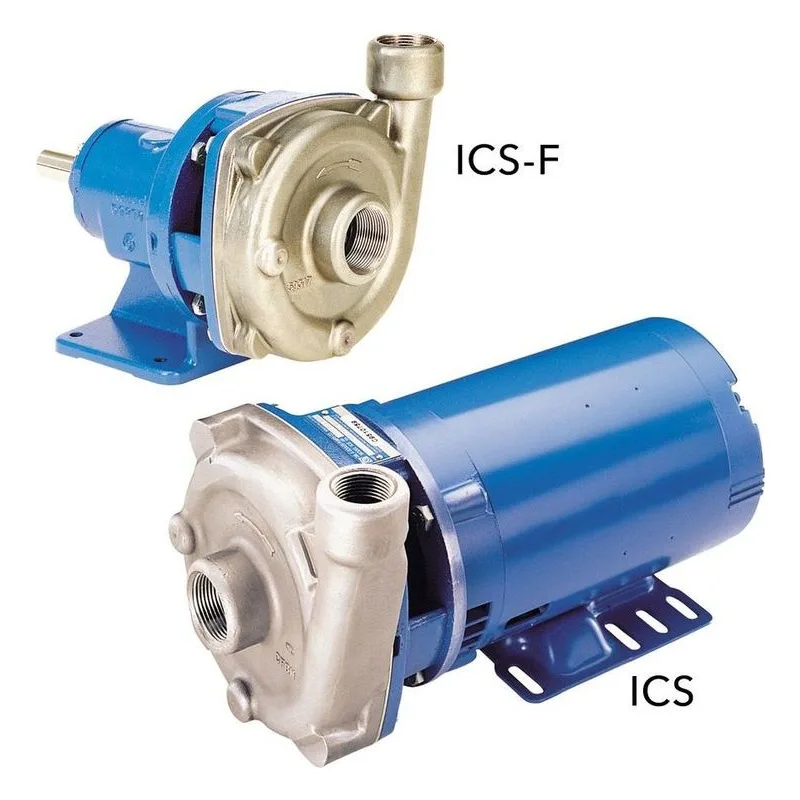

ICS / ICS-F Open Impeller, 316 Stainless Steel End Suction, Close Coupled & Frame Mounted Centrifugal Pumps

Motor (Close Coupled): NEMA standard 56J frame motors from 1⁄2 to 3 HP at 3500 RPM and 1⁄2 HP at 1750 RPM. Open drip-proof, totally enclosed fan-cooled and explosion proof enclosures are available. Single phase 115/230 V (3 HP
model is 230 V only). Built in overload with auto reset provided. Three phase 208–230/460 V. Starter and heaters must be ordered separately.
Motor (Frame Mounted): NEMA standard T frame motors from 1⁄2 to 3 HP at 3500 RPM and 1⁄2 HP at 1750 RPM. Open drip-proof, totally enclosed fan-cooled and explosion proof enclosures are available. For three phase motor, overload protection must be provided in starter unit. Starter and heaters must be ordered separately.

Clockwise when viewed from motor end.

Optional Baseplate and Coupling: Rigid channel steel baseplate, steel coupling guard designed to OSHA specifications and T.B. Woods Type “SC” spacer couplings.
