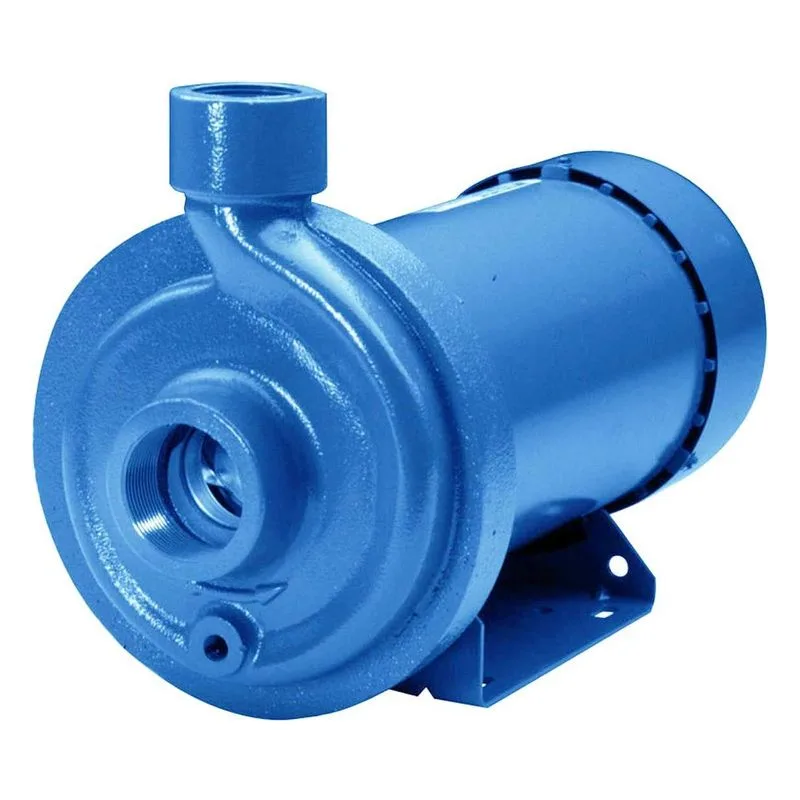

150MC1J2A5

A Full Range of Prodcut Features for Goulds Water Technology Pumps MCC Series
Superior Materials of Construction: AISI 316L stainless steel impeller and seal housing for corrosion resistance, and improved strength and ductility. Cast iron casing for strength and durability.
High Efficiency Impeller: Enclosed impeller in 316L stainless steel maintains maximum efficiencies over the life of the pump without adjustment.
Casing: Cast iron construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections. Nine position casing rotation for easy piping.
Mechanical Seal: Standard John Crane seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts. Optional high temperature and chemical duty seals available.
Motors: NEMA standard open drip- proof, totally enclosed fan cooled enclosures. Rugged ball bearing design for continuous duty under all operating conditions

NEMA 48 or 56 square flange frame. 3500 RPM ½ through 5 HP. Open drip-proof, ½ -3 HP totally enclosed fan-cooled enclosures. Stainless steel shaft with ball bearings. Single phase: Voltage 115/230 ODP and TEFC. (3 HP model – 230 V only) Built-in overload with auto-reset provided. Three phase: Voltage 208-230/460 ODP and TEFC.

For three phase motors, overload protection must be provided in starter unit. Starter and heaters must be ordered separately.

Clockwise when viewed from motor end.
