PE41MS

Goulds Water Technology Pumps PE Series Range of Product Features:
• Corrosion resistant construction
• Cast iron body
• Thermoplastic impeller and cover
• Upper sleeve and lower heavy duty ball bearing construction
• Motor is permanently lubricated for extended service life
• Powered for continuous operation
• All ratings are within the working limits of the motor
• Complete unit is heavy dury, portable and compact
• Mechanical seal is carbon, ceramic, BUNA and stainless steel
• Stainless steel fasteners

PE31 Pump:
• Maximum capacity: 53 GPM
• Maximum head: 25’ TDH
PE41 Pump:
• Maximum capacity: 61 GPM
• Maximum head: 29' TDH
PE51 Pump:
• Maximum capacity: 70 GPM
• Maximum head: 37' TDH

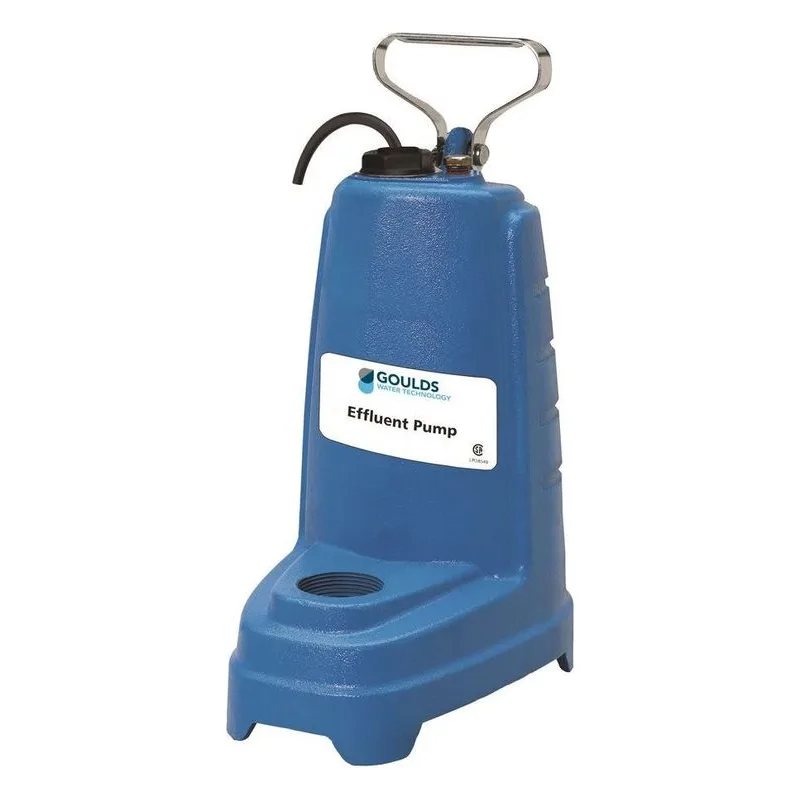

Goulds PE Submersible Effluent Wastewater & Drainage Pump
• Discharge: 11⁄2" NPT
• Temperature: 104ºF (40ºC) maximum, continuous when fully submerged.
• Solids handling: 1⁄2" maximum sphere.
• Automatic models include a float switch.
• Manual models available.
• Pumping range: see performance chart or curve.

PE31 Motor:
• .33 HP, 3000 RPM
• 115 volts
• Shaded pole design
PE41 Motor:
• .40 HP, 3400 RPM
• 115 and 230 volts
• PSC design
PE51 Motor:
• .50 HP, 3400 RPM
• 115 and 230 volts
• PSC design

General:
• Single phase
• 60 Hertz
• 115 and 230 volts
• Built-in thermal overload protection with automatic reset.
• Class B insulation
• Oil-filled design
• High strength carbon steel shaft
