75SPH70

Goulds Water Technology SP, SPM & SPH Pump Series Range of Product Features:
Self Priming Design: Features a replaceable check valve which acts to retain sufficient liquid in the casing to assure fast, reliable priming and repriming capabilities. Once initially primed the pump will reprime automatically.
Impeller and Wear Ring: Silicon Bronze construction, replaceable wear rings extend pump life, designed for maximum efficiency and repriming capabilities. Impeller is enclosed type, balanced for smooth operation, keyed to motor shaft.
Casing and Diffuser: Cast iron construction, featuring a back pull out design with tapped connections provided for casing fill and drain to simplify pump start up and removal at the end of the season. Top accessible pump feet for easy access to hold-down bolts. Casing o-ring sealing simplifies maintenance.
Shaft Sleeve: 300 series stainless steel replaceable sleeve provides motor shaft protection.
Mechanical Seal: Carbon/Ceramic faces, BUNA elastomers, 300 series stainless steel metal parts.

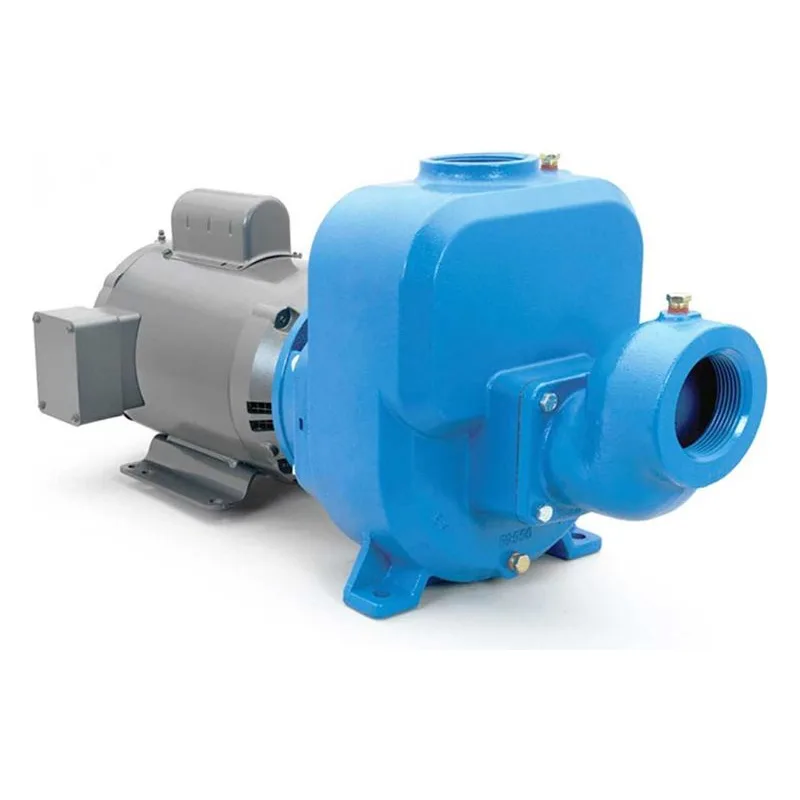

Goulds Primeline SP, SPM & SPH Series End Suction, Self Priming, Single Stage Centrifugal Pump
• Flows to 240 GPM
• Heads to 165 feet
• Reprime capabilities to 25'
• 2" through 3" suction
• 1½" through 2½" discharge
• Maximum temperature 160ºF

components for corrosion

• NEMA standard, JM shaft, Open Drip Proof or Totally Enclosed Fan Cooled.
• Single phase: 3 HP, 115/230 V; 5 HP, 230 V.
• Three phase: 3 and 5 HP, 208-230/460 V or 575 V.
• Note: Pump is not rated for 50 Hz service.

SPM = Medium Head Impeller/Diffuser
SPH = High Head Impeller/Diffuser
