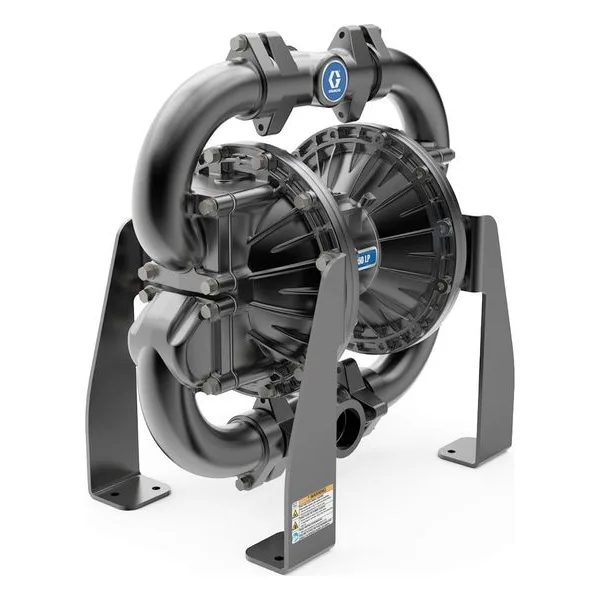

Husky 2150LP Large Particle Air Operated Double Diaphragm Pumps
About Husky 2150LP Large Particle Air Operated Double Diaphragm Pumps
HUSKY 2150LP SERIES
OVERVIEW & FEATURES
Large Particle Handling: Specialized 2-inch AODD pump featuring large-particle flapper checks designed to pass solids up to nearly 2 inches (46 mm).
Rugged Durability: Powder-coated aluminum wetted section built for continuous duty in harsh, corrosive environments like mines, sumps, and industrial waste sites.
High Performance: Delivers high-flow delivery up to 150 gpm (568 lpm) with a fluid pressure capability of 120 psi.
Anti-Clogging: Engineered to move "anything and everything," including waste, trash, slurries, and abrasive fluids with minimal clogging.
Rapid Service: Features an external air valve that can be replaced in minutes to minimize downtime during maintenance.
Extreme Suction: Capable of impressive suction lifts up to 20 ft (6.1 m) dry and 30 ft (9.14 m) wet.
FLUID PORTS
Air Ports: 1/2 in npt(f) inlet; 3/4 in npt(f) exhaust.
Fluid Inlet/Outlet: 2 in npt(f) or 2 in bspt(f) aluminum manifolds.
MATERIALS
Wetted Section & Drive: Powder-coated Aluminum wetted section; Aluminum center section and air valve.
Wetted Parts (Seats, Checks & Diaphragms):
Seats: 303 stainless steel with Buna-N seals.
Checks (Flappers): Buna-N overmolded 303 stainless steel flapper.
Diaphragms: Buna-N, Polychloroprene, Geolast, TPE, or Santoprene®.
Gaskets: Buna-N.
AIR SYSTEM & INSTALLATION
Operation: Pneumatic drive operating between 20–120 psi with high air consumption capacity for heavy solid throughput.
Maintenance: External air valve and flapper checks simplify service and reduce clogging risks in dirty or abrasive environments.
Footprint: Standard AODD mounting footprint for easy installation and replacement in existing systems.
APPLICATIONS
Wastewater and trash transfer, mines/sumps, industrial slurries, abrasive cleanup, and high-solids process streams.
TECHNICAL DATA
Max Press/Flow: 120 psi (8.27 bar) | 150 gpm (568 lpm).
Max Solids: 1.8 in (46 mm).
Speed/Volume: 145 cpm | 1 gallon (3.79 L) per cycle.
Consumption: 175 scfm max; 60 scfm @ 70 psi / 60 gpm.
Noise Level: 90 dBa @ 100 psi, 50 cpm.
