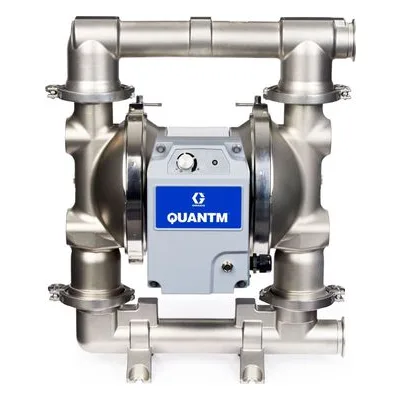

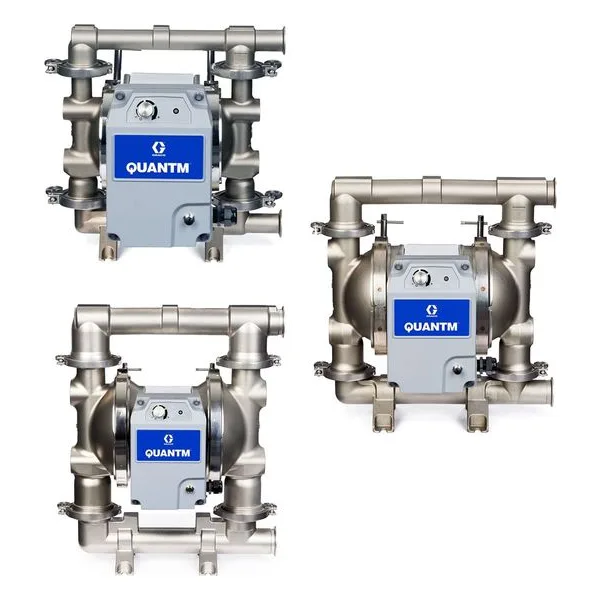

QUANTM Hygienic Food Grade Electric Double Diaphragm Pumps

QUANTM Hygienic Food Grade Series

SERIES OVERVIEW

• Energy Savings: Consumes up to 80% less energy than AODD pumps, typically paying for itself in under 12 months.

• Superior Torque: Powerful XT motor and drive delivers 8X more torque at low speeds compared to standard electric pumps.

• Sanitary Finish: 125 Ra fluid section finish designed for general food, beverage, and personal care transfer.

• Viscosity Handling: Efficiently transfers materials up to 25,000 cps depending on system configuration.

• Smooth Operation: Delivers a steady, smooth flow ideal for in-process and filling applications.

• Quiet & Clean: Muffler-free design eliminates air exhaust noise & prevents icing.

• Advanced Stalling: The only electric diaphragm pump that stalls under pressure to prevent failures from line clogs.

KEY FEATURES

• Overmolded Diaphragms: PTFE fluid side and EPDM air side plates eliminate crevices that harbor bacteria.

• Plug-and-Play: Supports 120V, 240V, and 480V installations without additional equipment investment.

• Remote Management: Integrated I/O port allows hands-free management via plant PLC.

• Rugged Design: Seal-less construction enables safe dry-run operation and eliminates leaks.

• Wash-down Rated: IP66 rated controls with FEP-compliant coating for harsh sanitation environments.

MATERIALS & PORTS

• Wetted Section: Cast 316 Stainless Steel with 125 micro-inch Ra finish.

• Elastomers: FDA-compliant Buna-N, EPDM, FKM, PTFE, or Santoprene.

• Port Sizes: 1.0 in., 1.5 in., or 2.0 in. configurations.

• Connections: Sanitary tri-clamp or DIN 11851.

TECHNICAL DATA

• Max Pressure: 100 psi (h30/h80) or 60 psi (h120).

• Max Flow Rate: 30 gpm to 120 gpm depending on model.

• Max Solids: 1/8 in. to 1/4 in. (3.2 mm to 6.3 mm).

• Suction Lift: Up to 29.0 ft (8.8 m) wet.
