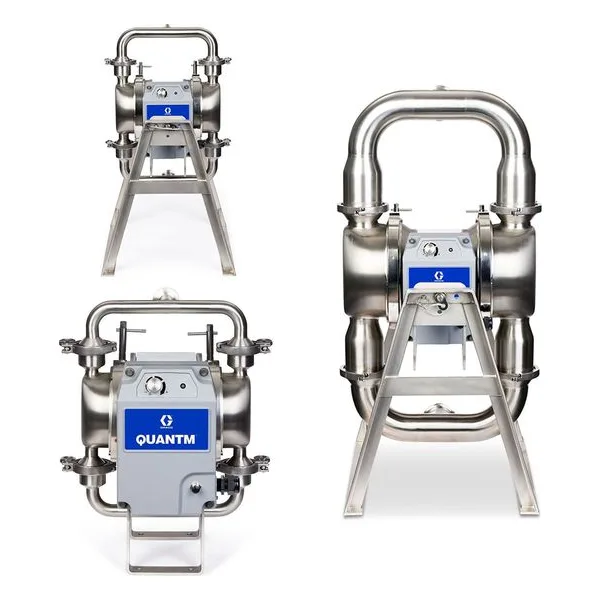

QUANTM Hygienic High Sanitation Electric Double Diaphragm Pumps

QUANTM Hygienic High Sanitation (HS) Series

SERIES OVERVIEW

• Energy Efficiency: Consumes up to 80% less energy than AODD pumps and 50% less than competitive electric technologies.

• Rapid ROI: High-efficiency design typically pays for itself in under 12 months through energy savings & rebates.

• High-Torque XT Motor: Delivers 8X more torque at low speeds compared to standard electric pumps.

• Superior Sanitation: 316L Stainless Steel wetted sections with a 32 Ra micro-inch finish for high-care transfer.

• Quiet Workspace: Muffler-free operation provides a 90% decrease in sound intensity versus air-driven models.

• Integrated Stall Feature: The only electric diaphragm pump that stalls under pressure without requiring external sensors.

• Sealless Design: Eliminates mechanical seal leaks allowing the pump to run dry

KEY FEATURES

• Overmolded Diaphragms: PTFE fluid-side plates eliminate bacterial crevices.

• Quick Knockdown: Tri-clamp or DIN connections for rapid cleaning & CIP applications.

• Automation-Ready: Standard I/O port allows hands-free management via plant PLC systems.

• Plug-and-Play: Supports 120V, 240V, and 480V for standard AODD footprints.

• Auto-Prime Feature: Intelligent control dial manages startup cycles to ensure consistent ingredient flow.

FLUID PORTS

• Port Sizes: 1.0 in, 1.5 in, or 2.0 in configurations depending on the model.

• Standard Connections: Sanitary tri-clamp or RD52 x 1/6 DIN options.

MATERIALS

• Fluid Section: 316L Stainless Steel with 32 Ra micro-inch finish.

• Check Valves: Ball or flapper options in various FDA-compliant elastomers.

• Diaphragms: PTFE/EPDM overmolded, PTFE/Santoprene two-piece, or EPDM overmolded.

APPLICATIONS

• Dairy & Ingredients: Safe transfer of yogurt, cottage cheese, and ice cream ingredients.

• High-Volume Beverage: Transfer for wineries, breweries, and distilleries.

• Personal Care: Sanitary handling of medical creams, cosmetics, and toothpaste.

• Pharma & Bio: Clean transfer of vaccines, plasma, and pharmaceutical solvents.

TECHNICAL DATA

• Max Pressure: 100 psi (6.89 bar) or 60 psi (4.1 bar) for h120 models.

• Max Flow Rate: Up to 120 gpm (454 lpm).

• Max Solids: 0.42 in. to 2.46 in. depending on ball or flapper check design.

• Wash-down Rating: IP66 for rigorous sanitation environments.
