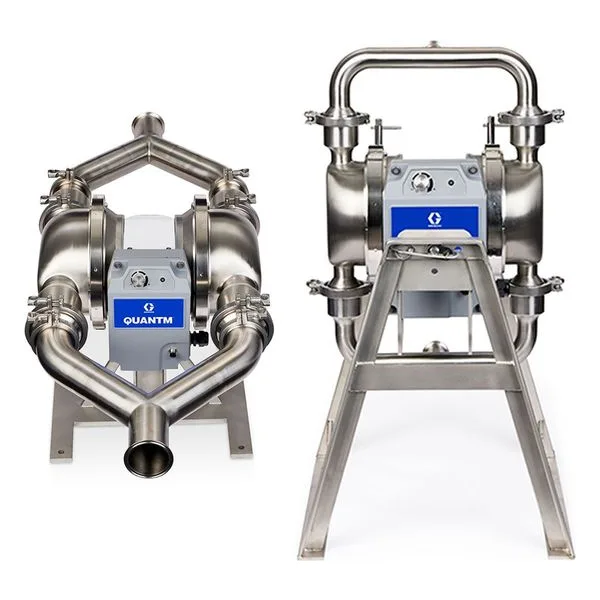

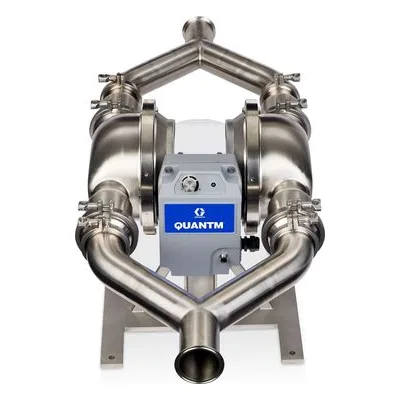

QUANTM Hygienic Large Particle Electric Double Diaphragm Pumps

QUANTM Hygienic Large Particle (LP) Series
SERIES OVERVIEW

Operational Efficiency: Reduces energy consumption by up to 80% compared to AODD pumps and eliminates the requirement for compressed air.
High-Torque XT Drive: Powerful motor technology delivers the rugged benefits of an AODD—such as stalling under pressure and self-priming—with electric drive efficiency.
Sustainability Steward: Revolutionary motor design allows facilities to improve productivity while complying with evolving environmental regulations.
Sanitary Construction: Features 316L Stainless Steel wetted sections with a 32 Ra surface finish specifically for hygienic applications.
Muffler-Free Workspace: Eliminating compressed air drives a 23% reduction in sound pressure and a 90% decrease in sound intensity.
Reliable Design: Gearbox-free architecture reduces the overall footprint and simplifies maintenance compared to other electric options.
KEY FEATURES

Solids Handling: Specifically built to transfer large particles up to 3.8 inches in diameter without product damage.
Remote Automation: Integrated I/O port enables remote or PLC control to start/stop the pump and adjust operating speed.
CIP/COP Compatibility: Sealless architecture and quick knockdown tri-clamp connections support fast Clean-In-Place or Clean-Out-of-Place procedures.
Self-Priming Capability: Electric-operated pumps can pull a suction without being gravity-fed or requiring another supply source.
Safe Dry-Run: Durable sealless design eliminates leaking and mechanical failures caused by rigorous run-dry conditions.
FLUID PORTS

Sizes: Available in configurations ranging from 1.5 inch up to 4.0 inch port sizes.
Standard Connections: Equipped with sanitary tri-clamp or DIN 11851 connections to ensure easy cleanability.
MATERIALS

Fluid Section: Constructed from Cast 316 Stainless Steel with a 32 Ra hygienic finish.
Certifications: All wetted materials are FDA-compliant for safe food and dairy handling.
Checks/Diaphragms: Options include EPDM Overmold, PTFE/EPDM Overmold, and Santoprene to eliminate crevices that harbor bacteria.
APPLICATIONS

Large Ingredient Transfer: Efficiently handles boiled eggs, meat, poultry, fruits, and vegetables without product degradation.
Meat & Poultry Processing: Transfer of sensitive materials including poultry viscera, chicken nuggets, and blood slurry.
Shear Sensitive Fluids: Gentle transfer of medium to high viscosity materials that typically damage rotary-style pumps.
TECHNICAL DATA

Max Pressure: 100 psi (7 bar) for h80 models or 60 psi (4 bar) for h120 models.
Max Flow Rate: Delivering up to 130 gpm (492 lpm) depending on series size and pump model.
Max Solids: Engineered to pass solids ranging from 1.2 inches to 3.8 inches in diameter.
Wash-down Rating: IP66 rated for use in rigorous sanitation zones and high-care environments.
