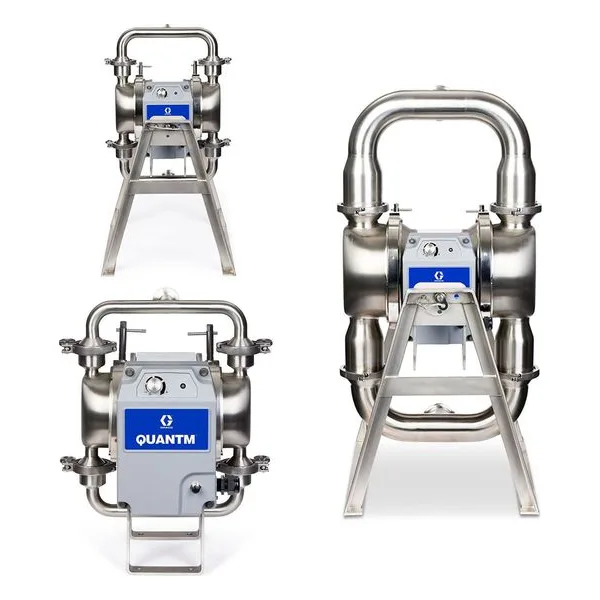

QUANTM Hygienic Pharmaceutical Grade Electric Double Diaphragm Pumps

QUANTM Hygienic Pharmaceutical Grade Series

SERIES OVERVIEW

• Operational Efficiency: Reduces energy consumption by up to 80% compared to AODD and 50% compared to other electric pumps.

• High-Torque XT Drive: Powerful motor delivers 8X more torque at low speeds than standard electric drives.

• Rapid Investment Return: Energy savings and utility rebates often result in a return on investment in under 12 months.

• Ultra-Sanitary Finish: Features a 316 Stainless Steel wetted section with a 20 Ra micro-inch surface finish.

• Reliable Stall Feature: The only electric pump designed to stall under pressure, protecting the motor and lines without external sensors.

• Muffler-Free Workspace: Muffler-free operation provides a 90% decrease in sound intensity and prevents air-valve icing.

KEY FEATURES

• Bacteria Resistance: Overmolded diaphragm plates (PTFE fluid side/EPDM air side) eliminate crevices that harbor bacteria.

• Remote Automation: Integrated I/O port enables hands-free management via plant PLC for speed and status monitoring.

• CIP Compatibility: Quick-knockdown fluid connections and sealless design are specifically engineered for CIP applications.

• Drop-In Replacement: Compact footprint fits seamlessly into existing air-operated pump installations.

• Safe Dry-Run: Sealless architecture allows the pump to run dry without damage or mechanical seal failure.

FLUID PORTS

• Sizes: Available in 1.0 in, 1.5 in, or 2.0 in port configurations.

• Standard Connections: Sanitary tri-clamp or RD52 x 1/6 DIN options for pharmaceutical compliance.

MATERIALS

• Fluid Section: 316 Stainless Steel with 20 Ra pharmaceutical-grade finish.

• Certifications: Wetted materials are FDA-compliant and USP Class VI classified.

• Checks/Diaphragms: Options include PTFE, EPDM Overmold, and Santoprene.

APPLICATIONS

• Biopharmaceuticals: Handling of vaccines, plasma, and blood products.

• Medical Transfer: Efficient transfer of medical creams and personal care lotions.

• Solvent Delivery: Pharmaceutical-grade chemical and solvent transfer in high-care environments.

TECHNICAL DATA

• Max Pressure: 100 psi (6.89 bar) or 60 psi (4.1 bar) for h120 models.

• Max Flow Rate: 30 gpm to 120 gpm depending on series size.

• Max Solids: 0.42 in. to 0.5 in. depending on model.

• Wash-down Rating: IP66 for use in rigorous cleaning and sanitation zones.
