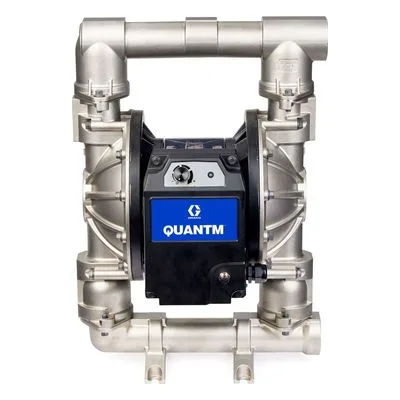

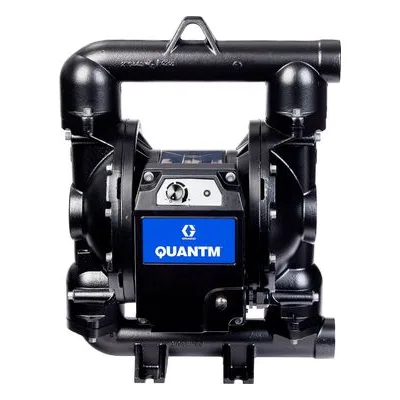

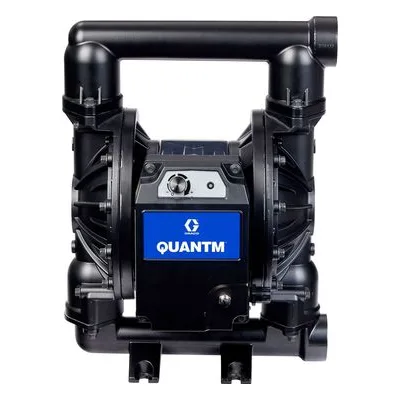

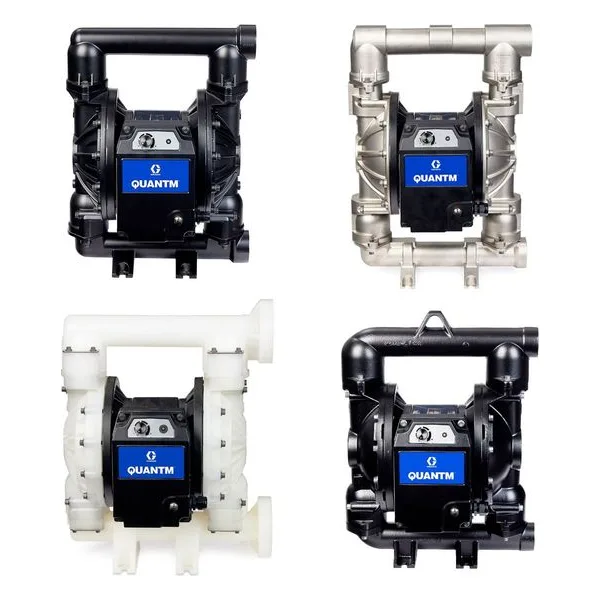

QUANTM Industrial i120 Electric Double Diaphragm Pumps

QUANTM INDUSTRIAL i120 SERIES

SERIES OVERVIEW

• 2-inch (50.8 mm) electric-operated double diaphragm pump.

• 80% reduction in energy consumption versus pneumatic alternatives.

• Direct-drive FluxCore motor removes the need for gearboxes.

• 90% decrease in sound intensity through muffler-free operation.

• Integrated control knob for manual flow and pressure management.

• IP66 wash-down rating for durability in industrial environments.

KEY FEATURES

• Stalls under pressure and handles safe dry-run operation.

• Onboard I/O port for remote PLC control and monitoring.

• Drop-in replacement footprint for standard 2-inch AODD pumps.

• No system icing or freezing issues common to air-driven systems.

• Direct-drive design with fewer moving parts for simplified maintenance.

FLUID PORTS

• Fluid inlet/outlet: 2 in. npt(f) or 2 in. bspt.

• Flange options: DIN PN16, ANSI 150, or JIS 10K (select models).

MATERIALS

• Fluid Section: Aluminum, Cast Iron, Polypropylene, PVDF, or Stainless Steel.

• Seats: Acetal, Buna-N, Stainless Steel, Polypropylene, PVDF, or Santoprene.

• Balls: Acetal, Buna-N, Polychloroprene, PTFE, Santoprene, or 440C SST.

• Diaphragms: Buna-N, Polychloroprene, PTFE/EPDM Overmold, or Santoprene.

APPLICATIONS

• High-volume chemical transfer and bulk unloading.

• Abrasive or solids-bearing industrial fluid handling.

• Industrial wastewater treatment and heavy slurry transfer.

• Paint and solvent delivery in large-scale manufacturing.

• Hazardous locations requiring ATEX/Ex certified equipment.

TECHNICAL DATA

• Max fluid pressure: 60 psi (4.1 bar, 0.41 MPa).

• Max flow rate: 120 gpm (454 lpm).

• Max suction lift: Wet 29.0 ft (8.8 m), Dry 15.9 ft (4.8 m).

• Max pumpable solids: 0.25 in (6.35 mm).

• Electrical: 240V single-phase or 480V three-phase options
