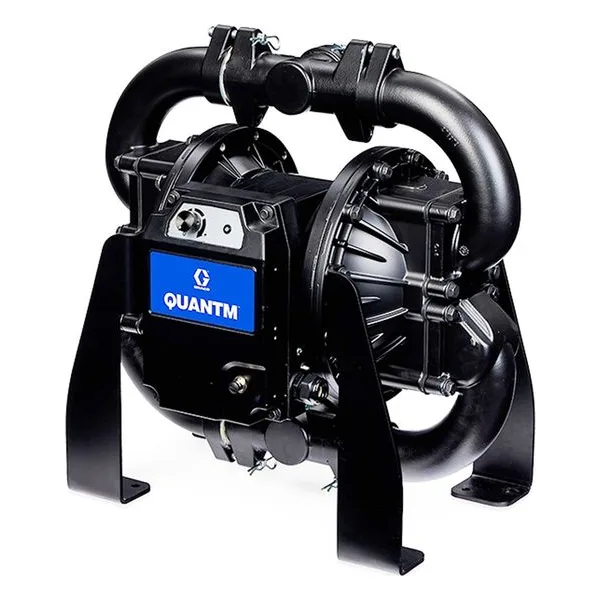

QUANTM Industrial i120LP Electric Double Diaphragm Pumps

QUANTM INDUSTRIAL i120LP SERIES

SERIES OVERVIEW

• 2-inch (50.8 mm) electric double diaphragm pump for large particles.

• 80% energy savings compared to air-operated double diaphragm pumps.

• Flapper check valve design for handling large solids without damage.

• 90% decrease in noise compared to standard air-driven pumps.

• FluxCore motor technology for direct-drive without a gearbox.

• IP66 wash-down rated for reliable service in harsh environments.

KEY FEATURES

• Gentle material transfer suitable for shear-sensitive fluids.

• Stalls under pressure to prevent pump failure from line clogs.

• Sealless design allows for indefinite dry-run capability.

• Remote PLC integration via built-in I/O connection port.

• No icing issues common to air-driven installations.

FLUID PORTS

• Fluid inlet/outlet: 2 in. npt(f) or 2 in. bspt.

MATERIALS

• Fluid Section: Aluminum.

• Seats: Stainless Steel with Buna-N seals.

• Checks: Buna-N or Polychloroprene overmolded flappers.

• Diaphragms: Buna-N, Polychloroprene, or Santoprene.

APPLICATIONS

• Heavy industrial slurries and solids-bearing waste.

• Shear-sensitive chemical transfer and processing.

• Abrasive fluid handling with large particle requirements.

• Bulk material unloading in remote or off-grid sites.

TECHNICAL DATA

• Max fluid pressure: 60 psi (4.1 bar, 0.41 MPa).

• Max flow rate: 120 gpm (454 lpm).

• Max pumpable solids: 1.8 in (46 mm).

• Max suction lift: Wet 29.0 ft (8.8 m), Dry 15.9 ft (4.8 m).

• Electrical: 240V single-phase or 480V three-phase.
