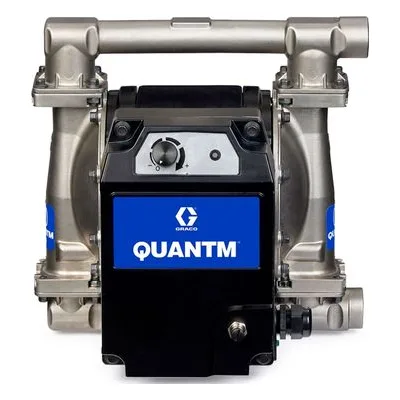

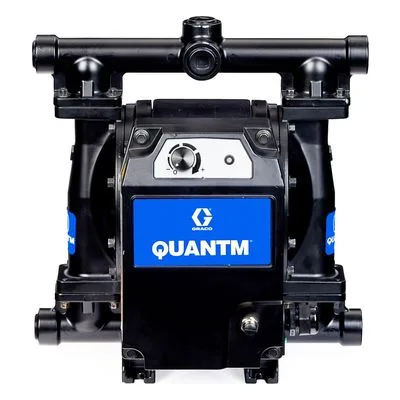

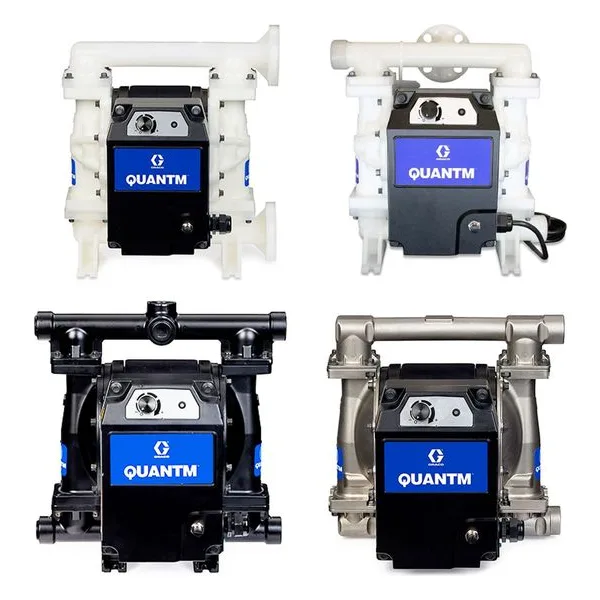

QUANTM Industrial i30 Electric Double Diaphragm Pumps

QUANTM INDUSTRIAL i30 SERIES

SERIES OVERVIEW

• 1-inch (25.4 mm) electric-operated double diaphragm pump.

• 80% less energy consumption than comparable AODD pumps.

• Direct-drive motor eliminates gearboxes and compressed air requirements.

• 90% reduction in sound intensity with muffler-free operation.

• Integrated control knob for manual flow and pressure adjustment.

• IP66 wash-down rated for protection in industrial environments.

KEY FEATURES

• Stalls under pressure and handles safe dry-run operation.

• I/O port included for remote PLC control and monitoring.

• Drop-in replacement matching standard 1-inch AODD footprints.

• No system icing or freezing issues common in pneumatic drives.

• Direct-drive design with fewer moving parts than traditional EODDs.

FLUID PORTS

• Port sizes: 1 in. NPT(f) or 1 in. BSPT.

• Flange options: DIN PN10, ANSI 150, or JIS 10K (select models).

MATERIALS

• Fluid Section: Aluminum, Cast Iron, PP, Conductive PP, PVDF, or SST.

• Seats: Acetal, AL, BN, FK, GE, PP, PV, 17-4PH, SP, or TPE.

• Balls: Acetal, BN, CR, FK, GE, PTFE, SP, 440C SST, or TPE.

• Diaphragms: BN, CO, FK, GE, PO, PS, SP, or TPE.

APPLICATIONS

• Industrial chemical transfer and drum unloading.

• Paint, ink, and solvent delivery.

• Industrial wastewater handling and slurries.

• Abrasive or solids-bearing fluid processing.

• Hazardous locations requiring ATEX/Ex certified equipment.

TECHNICAL DATA

• Max fluid pressure: 100 psi (6.89 bar, 0.69 MPa).

• Max flow rate: 30 gpm (114 lpm).

• Max suction lift: Wet 29.0 ft (8.8 m), Dry 7.9 ft (2.4 m).

• Max pumpable solids: 0.125 in (3.2 mm).

Electrical: Factory-wired 120V, 240V, or 480V options
