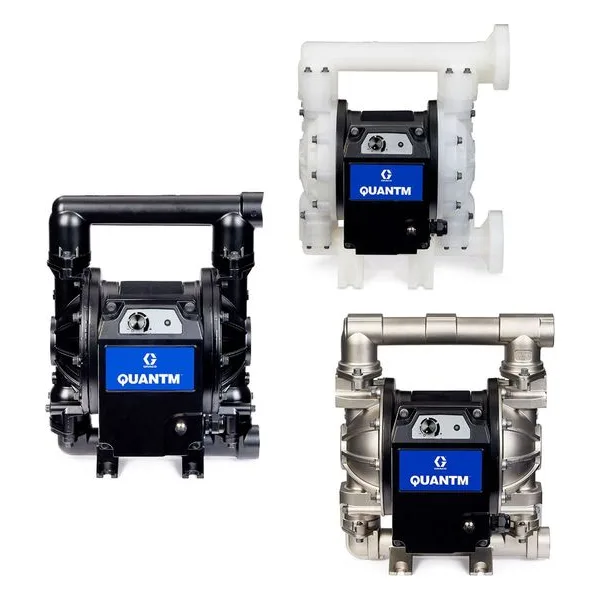

QUANTM Industrial i80 Electric Double Diaphragm Pumps

QUANTM INDUSTRIAL i80 SERIES

SERIES OVERVIEW

• 1.5-inch (38.1 mm) electric-operated double diaphragm pump.

• 80% lower energy consumption than comparable AODD pumps.

• FluxCore motor technology eliminates gearboxes and compressed air needs.

• 90% reduction in sound intensity provides a quieter workspace.

• Integrated control dial manages flow and pressure at the pump.

• IP66 wash-down rated for protection in industrial environments.

KEY FEATURES

• Stalls under pressure and handles dry-run operation safely.

• Remote monitoring through an I/O port for PLC integration.

• Drop-in replacement footprint for existing 1.5-inch AODD pumps.

• No system icing issues common to air-driven installations.

• Direct-drive design with fewer moving parts than traditional EODDs.

FLUID PORTS

• Fluid inlet/outlet: 1.5 in. npt(f) or 1.5 in. bspt.

• Flange options: DIN PN10, ANSI 150 (available on plastic models).

MATERIALS

• Fluid Section: Aluminum, Polypropylene, PVDF, or 316 Stainless Steel.

• Seats: Aluminum, Buna-N, Stainless Steel, Polypropylene, PVDF, or Santoprene.

• Balls: Acetal, Buna-N, Polychloroprene, PTFE, Santoprene, or 440C SST.

• Diaphragms: Buna-N, Polychloroprene Overmold, PTFE/EPDM Overmold, or Santoprene.

APPLICATIONS

• High-flow chemical transfer and industrial processing.

• Abrasive or solids-bearing materials handling.

• Industrial wastewater treatment and slurry transfer.

• Paint and ink manufacturing and delivery.

• Hazardous locations requiring ATEX/Ex certified equipment.

TECHNICAL DATA

• Max fluid pressure: 100 psi (6.89 bar, 0.69 MPa).

• Max flow rate: 80 gpm (300 lpm).

• Max suction lift: Wet 29.0 ft (8.8 m), Dry 19.3 ft (5.9 m).

• Max pumpable solids: 0.19 in (4.8 mm).

• Electrical: 120V, 240V, or 480V factory-wired options
