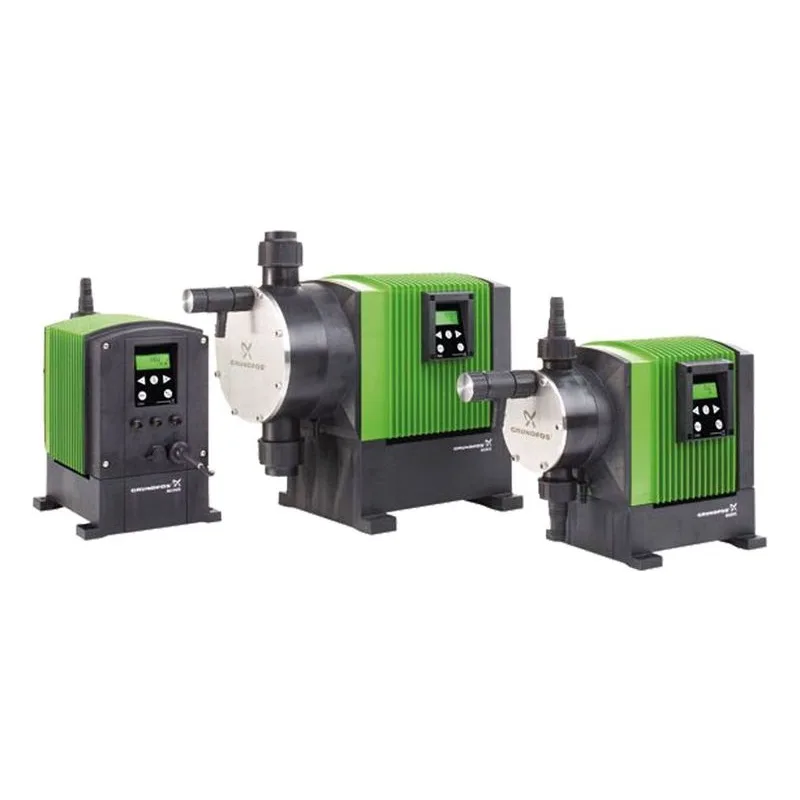

Image shown may not be actual product

97665585

Grundfos Pumps 97665585 DME Series Digital Diaphragm Dosing Metering Pump, DME 375-10 AR-SS/T/SS-S-31A4A4B. 316L Stainless Steel Head, PTFE Gasket, 316L Stainless Steel Valve Balls, Standard Valves. Side Mounted Controls, Automatic control + alarm relay Functions.

Brand: Grundfos

Series:

DME Series

Item: 97665585

Retail Price: $15,334.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	Grundfos Dosing Pumps	View
Data Sheets	DME / DMS Dosing Datasheet	View
Data Sheets	DME Dosing Datasheet	View
Installation & Operation Manuals	DME AR Variant Manual	View

Series Information

DME Series Information

Product Type
Injection / Dosing, Metering
Features & Benefits
Grundfos DME Digital Dosing pumps Features & Benifits - Performance range: 0.02 to 248 GPH (up to 940 l/hr) - Max pressure: 145 PSI - 1:800 turndown ratio, +/- 1% repeatable accuracy through entire adjustable range - Mircroprocessor controlled variable speed motor (1x100-240V, 50/60Hz) - Back lit display, precise easy setting in GPH (l/hr) - Simple calibration mode - Anti-Cavitation (slow mode) for viscous fluids - Priming button - Overload protection - Optional flow verification and leak detection DME 60-10 - 0.02 to 15.9 GPH @ 145 PSI DME 150-4 - 0.05 to 39.6 GPH @ 58 PSI DME 375-10 - 0.12 to 99.1 GPH @ 145 PSI DME 940-4 - 0.31 to 248.3 GPH @ 58 PSI
General Description
Material - Pump head - PVDF, Polypropylene, 316SS, Gaskets - FKM, EPDM, PTFE Controls - DME B - Basic manual control, DME AR - Automatic control + alarm relay, DME AP - AR + Profibus Processes - Dosing of biocides and chemicals, belt lubricant for conveyor equipment diverse range of acids, lyes, flocculation and coagulation agents, cationic and anionic polymers, precipitating agents and disinfectants, CIP applications Applications: Pulp and paper industry Textile industry Food and beverage industry Industrial process water and waste water treatment Drinking water treatment

Popular Series

Series associated to this product and brand

97665585

Brand: Grundfos

Series:

DME Series

Item: 97665585

Type

Title

Link

Brochures

Grundfos Dosing Pumps

View

Data Sheets

DME / DMS Dosing Datasheet

View

Data Sheets

DME Dosing Datasheet

View

Installation & Operation Manuals

DME AR Variant Manual

View

Product Type

Injection / Dosing, Metering

Features & Benefits

Grundfos DME Digital Dosing pumps Features & Benifits
- Performance range: 0.02 to 248 GPH (up to 940 l/hr)
- Max pressure: 145 PSI
- 1:800 turndown ratio, +/- 1% repeatable accuracy through entire adjustable range
- Mircroprocessor controlled variable speed motor (1x100-240V, 50/60Hz)
- Back lit display, precise easy setting in GPH (l/hr)
- Simple calibration mode
- Anti-Cavitation (slow mode) for viscous fluids
- Priming button
- Overload protection
- Optional flow verification and leak detection

DME 60-10 - 0.02 to 15.9 GPH @ 145 PSI
DME 150-4 - 0.05 to 39.6 GPH @ 58 PSI
DME 375-10 - 0.12 to 99.1 GPH @ 145 PSI
DME 940-4 - 0.31 to 248.3 GPH @ 58 PSI

General Description

Material - Pump head - PVDF, Polypropylene, 316SS, Gaskets - FKM, EPDM, PTFE

Controls - DME B - Basic manual control, DME AR - Automatic control + alarm relay, DME AP - AR + Profibus

Processes - Dosing of biocides and chemicals, belt lubricant for conveyor equipment diverse range of acids, lyes, flocculation and coagulation agents, cationic and anionic polymers, precipitating agents and disinfectants, CIP applications

Applications:
Pulp and paper industry
Textile industry
Food and beverage industry
Industrial process water and waste water treatment
Drinking water treatment
