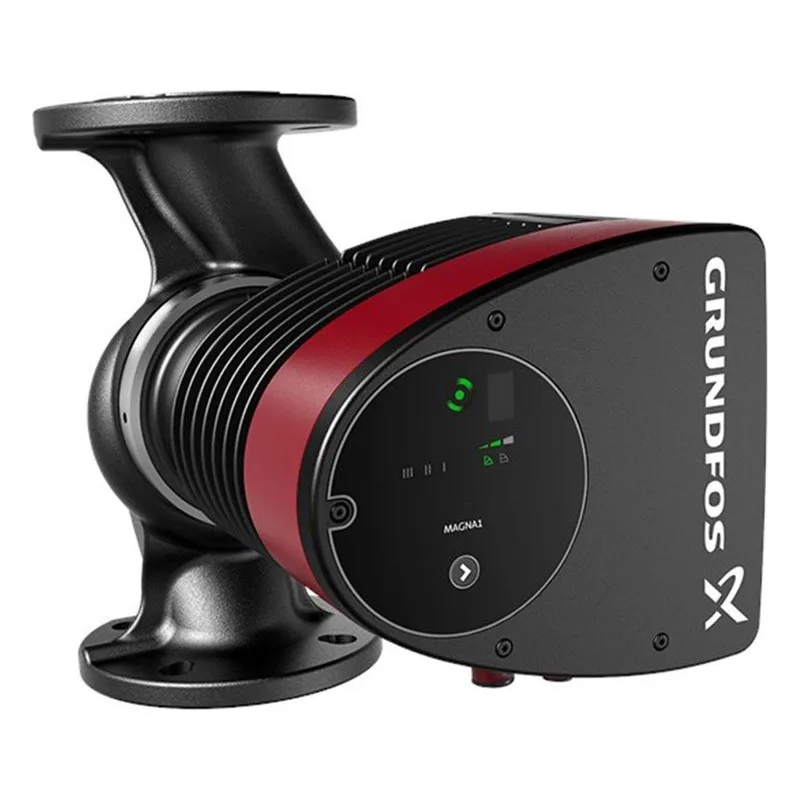

The MAGNA1 combines rugged reliability with intelligent engineering to provide a "set-it-and-forget-it" solution for commercial hydronic systems.

Optimize Your Performance

• Intelligent Control Modes: Nine distinct settings allow you to tailor the pump to your specific system demands, including three settings each for Proportional Pressure, Constant Pressure, and Fixed Speed.

• The "Grundfos Eye": Get instant visual feedback on your pump's health. The intuitive light indicator shows at a glance whether the pump is running perfectly, needs attention, or has triggered an alarm.

Maximum Efficiency & Durability

• Cut Energy Costs by 50%: The advanced electronically commutated motor (ECM) uses less than half the electricity of a standard pump motor, significantly lowering your utility bills.

• Built for Tough Environments: Featuring a Magnetite-resistant design and 360 mNm starting torque, this pump easily clears sediment and system debris that would stall lesser models.

• Maintenance-Free Operation: The wet rotor design ensures whisper-quiet performance and eliminates the need for routine servicing.

Simplified Installation

• All-in-One Design: The integrated pump, motor, and control system reduce complexity and installation time. Plus, no external motor protection is required.

• Ready to Go: Cast-iron models come standard with insulating shells to prevent heat loss and protect the unit immediately.

• Material Versatility: Available in both Cast Iron and Stainless Steel to suit any heating or cooling application.

Technical Summary

• Motor Type: High-efficiency ECM

• Starting Torque: 360 mNm (Debris clearing)

• Installation: Tool-free electrical plug options and compact design.

• Protection: Integrated motor protection and Magnetite resistance.

Reliability You Can Trust

At Grundfos, we define "Reliable Innovation" by merging cutting-edge smart features with rugged, "tried and tested" hardware. The MAGNA3 retains our unrivaled reputation for durability while offering the sophisticated control required for modern, sustainable building management.

Key Advantages at a Glance

• Industry-Leading Efficiency: Best-in-class Energy Efficiency Index (EEI).

• Smart Integration: Seamlessly communicates with Building Management Systems (BMS).

• Ultimate Versatility: A truly full-range lineup designed to fit almost any application or flow requirement.

Grundfos MAGNA1 vs. MAGNA3: Quick Comparison

Choose the model that best fits your project requirements—from simple retrofits to high-intelligence building management.
