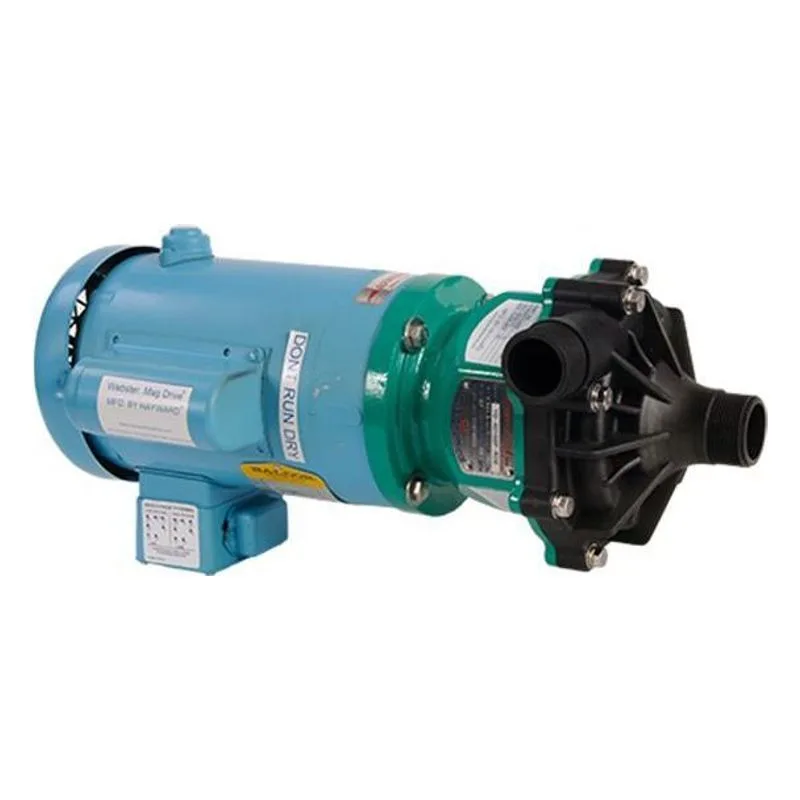

Name: 1M083TVT14 PumpCatalog Hayward
Brand: Hayward
SKU: 1M083TVT14
Price: 3000.77 USD
Availability: OutOfStock

Type

Title

Link

Data Sheets

Product Type
Magnetic Drive, Centrifugal
Features & Benefits
R Series Features, Options & Materials • GFPP and Carbon Reinforced ETFE • Seal-Less Design • Low Friction Operation • Easy Maintenance, No Special Tools Options • Carbon Bushings • Ceramic Bushings • EPDM Elastomers • 575V Motors • Explosion Proof Motors • Washdown Motors Materials • GFPP Cell Class 85580 per ASTM D4101 • ETFE
General Description
Models for flow rates from 5 to 140 GPM with TDHs of up to 141 feet. R-Series pumps and motors are matched for non-overloading, continuous duty performance throughout the entire pump performance range.
Motors
Single or three phase motors available with horsepower ratings of 1/3, 1/2, 3/4, 1, 1-1/2, 2, 3 or 5 HP, 115/230 VAC or 208-230/460 VAC. Motors are heavy-duty TEFC and epoxy painted.

Product Type
Magnetic Drive, Centrifugal
Features & Benefits
R Series Features, Options & Materials • GFPP and Carbon Reinforced ETFE • Seal-Less Design • Low Friction Operation • Easy Maintenance, No Special Tools Options • Carbon Bushings • Ceramic Bushings • EPDM Elastomers • 575V Motors • Explosion Proof Motors • Washdown Motors Materials • GFPP Cell Class 85580 per ASTM D4101 • ETFE
General Description
Models for flow rates from 5 to 140 GPM with TDHs of up to 141 feet. R-Series pumps and motors are matched for non-overloading, continuous duty performance throughout the entire pump performance range.
Motors
Single or three phase motors available with horsepower ratings of 1/3, 1/2, 3/4, 1, 1-1/2, 2, 3 or 5 HP, 115/230 VAC or 208-230/460 VAC. Motors are heavy-duty TEFC and epoxy painted.
