HS33PT1

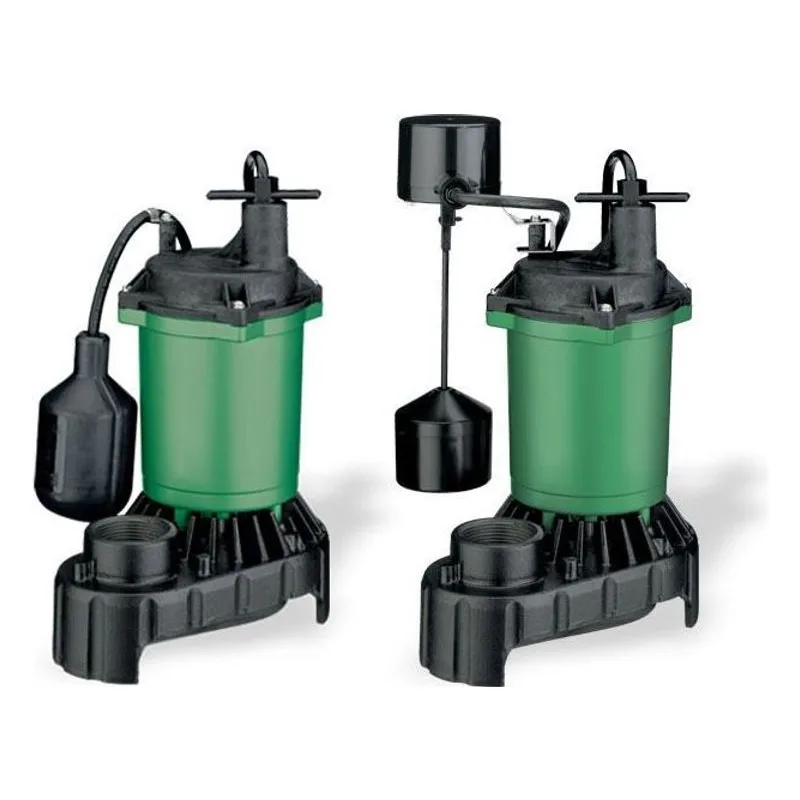

Hydromatic HS33PT1 Submersible Sump Pump, 1- 1/2" NPT Discharge, 1/3 HP, 115 Volts, 1 Phase, 3450 RPM, 3/16" Solids Handling. Replaced by Identical Myers Pump Model MS33PT10, Engineering Number NA. Manufactured by the same parent company, Pentair.

Brand: Hydromatic

Series:

HS33P HS50P Sump Pumps

Item: HS33PT1Model #: MS33PT10

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	HS33P, HS50P Specifications	View
Installation & Operation Manuals	HS33P, HS50P Manual	View

Series Information

HS33P HS50P Sump Pumps Information

Features & Benefits
HS33P HS50P Sump Pump Key Features: Maintenance-free operation, Wide-angle or vertical mechanical switch for small 10" diameter sumps, Dual ball-bearing motor and additional lip seal for durability and longer pump life, Durable PSC motor for years of service, Oil-filled PSC motor for maximum heat dissipation and continuous bearing lubrication, Thermal overload protection with automatic reset, Piggy-back style float for automatic or manual operation, CSA Listed
General Description
HS33P HS50P Sump Pump General Specifications: HORSEPOWER: 1/3 HP or 1/2 HP MAX CAPACITY: 75 GPM (250 LPM) SHUT-OFF HEAD: 25' (7.6 m) VERTICAL FLOAT SWITCH SETTINGS: On: 8" (203 mm)/ Off: 3.5" (89 mm) TETHERED FLOAT SWITCH SEETINGS: On: 14" (356 mm)/Off: 6" (53mm) INTERMITTENT LIQUID TEMP.: Up To 140°F (60°C) 1/3 HP MOTOR SPECS: 115V AC, 60 Hz, 3.9 FLA; Shaded Pole Motor 3000 RPM with Thermal Overload protection 1/2 HP MOTOR SPECS: 115V AC, 60 Hz, 4.1 FLA PSC Motor 3000 RPM with Thermal Overload Protection POWER CORD: 8', (2.4 m) MAX SOLIDS HANDLING CAPACITY: 1/4" (6.4 mm) DISCHARGE SIZE: 1-1/2" MINIMUM SUMP DIAMETER: Tethered Switch: 14" (356mm) / Vertical Switch: 10" (254mm)

Related Products and Parts

Popular Series

Series associated to this product and brand

HS33PT1

Type

Title

Link

Data Sheets

HS33P, HS50P Specifications

View

Installation & Operation Manuals

HS33P, HS50P Manual

View

Features & Benefits

HS33P HS50P Sump Pump Key Features: Maintenance-free operation, Wide-angle or vertical mechanical switch for small 10" diameter sumps, Dual ball-bearing motor and additional lip seal for durability and longer pump life, Durable PSC motor for years of service, Oil-filled PSC motor for maximum heat dissipation and continuous bearing lubrication, Thermal overload protection with automatic reset, Piggy-back style float for automatic or manual operation, CSA Listed

General Description

HS33P HS50P Sump Pump General Specifications:
HORSEPOWER: 1/3 HP or 1/2 HP
MAX CAPACITY: 75 GPM (250 LPM)
SHUT-OFF HEAD: 25' (7.6 m)
VERTICAL FLOAT SWITCH SETTINGS: On: 8" (203 mm)/ Off: 3.5" (89 mm)
TETHERED FLOAT SWITCH SEETINGS: On: 14" (356 mm)/Off: 6" (53mm)
INTERMITTENT LIQUID TEMP.: Up To 140°F (60°C)
1/3 HP MOTOR SPECS: 115V AC, 60 Hz, 3.9 FLA; Shaded Pole Motor 3000 RPM with Thermal Overload protection
1/2 HP MOTOR SPECS: 115V AC, 60 Hz, 4.1 FLA PSC Motor 3000 RPM with Thermal Overload Protection
POWER CORD: 8', (2.4 m)
MAX SOLIDS HANDLING CAPACITY: 1/4" (6.4 mm)
DISCHARGE SIZE: 1-1/2"
MINIMUM SUMP DIAMETER: Tethered Switch: 14" (356mm) / Vertical Switch: 10" (254mm)
