HTS33M1

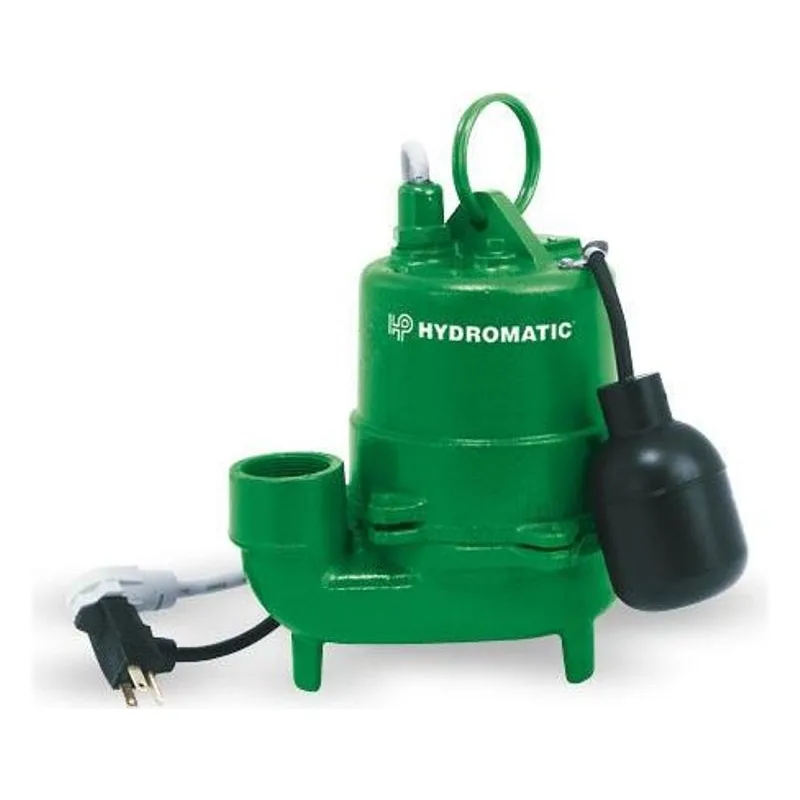

Hydromatic HTS33M1 Submersible Sump Pump, 1-1/2" Discharge, 0.33 HP, 115 Volts, 1 Phase, 1550 RPM, 1-1/2" Solids Handling. Replaced by Identical Myers Pump Model S40HT-11, Engineering Number 26609D000. Manufactured by the same parent company, Pentair.

Brand: Hydromatic

Series:

HTS High Temp Sump Pumps

Item: HTS33M1Model #: S40HT-11

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	HTS50 Manual	View
Data Sheets	HTS33 Specifications	View
Data Sheets	HTS50 Specifications	View
Installation & Operation Manuals	HTS33 Manual	View

Series Information

HTS High Temp Sump Pumps Information

Features & Benefits
HTS High Temp Sump Pump Key Features: Designed for High Temperature Use -- up to 194 degrees F, Easily Field Serviceable, Oil Filled Motor for Bearing Lubrication and Better Heat Dissipation, Thermal Overload Protection, Heavy Cast Iron Motor Housing for Cooler Operation -- Extends Unit Life, Maintenance-Free Operation
General Description
HTS High Temp Sump Pump General Specifications: BODY CONSTRUCTION: Cast Iron HORSEPOWER: Available in 1/3 or 1/2 HP MAXIMUM HEAD: 21' MAXIMUM CAPACITY: 45 GPM (170 LPM) FLOW at 10' LIFT: 45 GPM (170 LPM) SWITCH TYPE: Wide-Angle High-Temperature Tethered type MINIMUM SUMP DIAMETER: 18" DISCHARGE PIPE SIZE: 1-1/2" NPT MAXIMUM SOLIDS HANDLING: 3/4" AMP DRAW (full load): 12 Amps POWER CORD: 20', 16/3 SJ00W-A/SJOW VOLTAGE: 115V, 60 Hz MAXIMUM (continuous) WATER TEMPERATURE: 194°F (90°C) with switch / 200°F (93°C) manual MOTOR: Shaded Pole / 1550 RPM / 115v / 12 full-load amps IMPELLER CONSTRUCTION: Cast Iron

Related Products and Parts

Popular Series

Series associated to this product and brand

HTS33M1

Type

Title

Link

Brochures

Data Sheets

Data Sheets

Installation & Operation Manuals

HTS33 Manual

View

Features & Benefits

HTS High Temp Sump Pump Key Features: Designed for High Temperature Use -- up to 194 degrees F, Easily Field Serviceable, Oil Filled Motor for Bearing Lubrication and Better Heat Dissipation, Thermal Overload Protection, Heavy Cast Iron Motor Housing for Cooler Operation -- Extends Unit Life, Maintenance-Free Operation

General Description

HTS High Temp Sump Pump General Specifications:
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 1/3 or 1/2 HP
MAXIMUM HEAD: 21'
MAXIMUM CAPACITY: 45 GPM (170 LPM)
FLOW at 10' LIFT: 45 GPM (170 LPM)
SWITCH TYPE: Wide-Angle High-Temperature Tethered type
MINIMUM SUMP DIAMETER: 18"
DISCHARGE PIPE SIZE: 1-1/2" NPT
MAXIMUM SOLIDS HANDLING: 3/4"
AMP DRAW (full load): 12 Amps
POWER CORD: 20', 16/3 SJ00W-A/SJOW
VOLTAGE: 115V, 60 Hz
MAXIMUM (continuous) WATER TEMPERATURE: 194°F (90°C) with switch / 200°F (93°C) manual
MOTOR: Shaded Pole / 1550 RPM / 115v / 12 full-load amps
IMPELLER CONSTRUCTION: Cast Iron
