HUP4

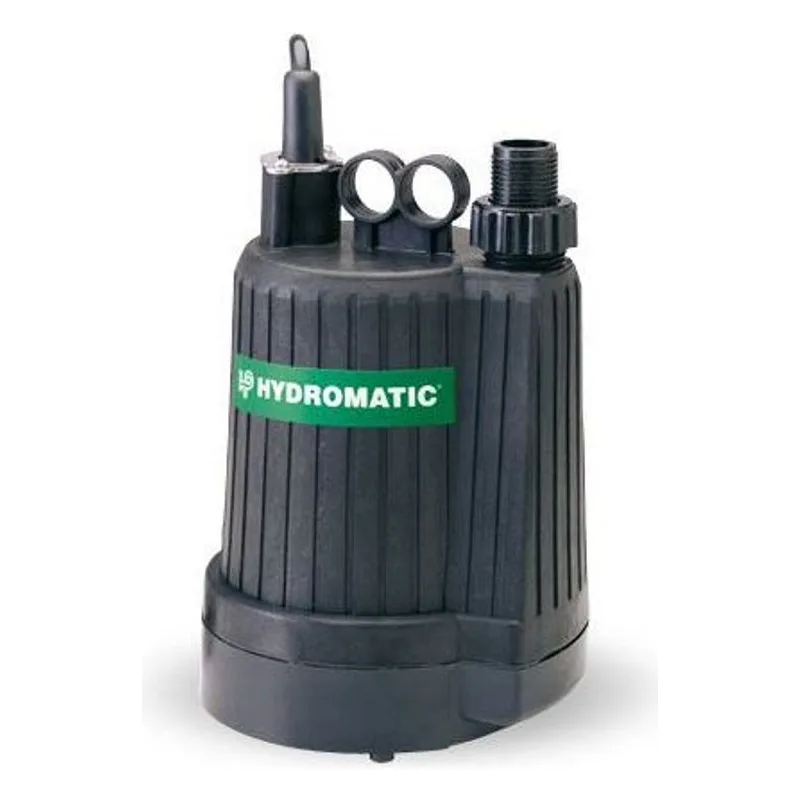

Hydromatic HUP4 Utility Water Pump, 1" Discharge, 1/4 HP, 115 Volts, 1 Phase, 1550 RPM, 1/8" Solids Handling. Replaced by Identical Myers Pump Model SPS-4, Engineering Number NA. Manufactured by the same parent company, Pentair.

Brand: Hydromatic

Series:

HUP Utility Water Removal Pump

Item: HUP4Model #: SPS-4

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	HUP Brochure	View
Brochures	HUP4 Brochure	View
Data Sheets	HUP4 Specifications	View
Installation & Operation Manuals	HUP4 Manual	View

Series Information

HUP Utility Water Removal Pump Information

Features & Benefits
HUP Utility Water Removal Pump Key Features: Removes Standing Water Down To 1/8", Weighs Only 7 lbs, Energy-Efficient PSC (Permanent Split Capacitor) Motor, Carbon-Ceramic Shaft Seal Can Last Ten Times As Long AsStandard Lip Seals, Built-In Thermal Overload Protection, Built-In Carrying Handle
General Description
HUP Utility Water Removal Pump General Specifications: BODY CONSTRUCTION: Thermoplastic HORSEPOWER: 1/6 HP MAXIMUM HEAD: 22 ft. (6.4 m) MAXIMUM CAPACITY: 20 GPM (75.71 LPM) FLOW at 10' LIFT: 15.5 GPM SWITCH TYPE: Manual Operation (No Switch) DISCHARGE PIPE SIZE: 1" NPT (Includes Garden Hose Adapter) MAXIMUM SOLIDS HANDLING SIZE: 1/8 in. (3.18mm) AMP DRAW (full load): 2 Amps CORD LENGTH: 10' VOLTAGE: 115V, 60 Hz MAXIMUM WATER TEMPERATURE: 140°F (60°C)

Related Products and Parts

Popular Series

Series associated to this product and brand

HUP4

Type

Title

Link

Brochures

Brochures

Data Sheets

Installation & Operation Manuals

HUP4 Manual

View

Features & Benefits

HUP Utility Water Removal Pump Key Features: Removes Standing Water Down To 1/8", Weighs Only 7 lbs, Energy-Efficient PSC (Permanent Split Capacitor) Motor, Carbon-Ceramic Shaft Seal Can Last Ten Times As Long AsStandard Lip Seals, Built-In Thermal Overload Protection, Built-In Carrying Handle

General Description

HUP Utility Water Removal Pump General Specifications:
BODY CONSTRUCTION: Thermoplastic
HORSEPOWER: 1/6 HP
MAXIMUM HEAD: 22 ft. (6.4 m)
MAXIMUM CAPACITY: 20 GPM (75.71 LPM)
FLOW at 10' LIFT: 15.5 GPM
SWITCH TYPE: Manual Operation (No Switch)
DISCHARGE PIPE SIZE: 1" NPT (Includes Garden Hose Adapter)
MAXIMUM SOLIDS HANDLING SIZE: 1/8 in. (3.18mm)
AMP DRAW (full load): 2 Amps
CORD LENGTH: 10'
VOLTAGE: 115V, 60 Hz
MAXIMUM WATER TEMPERATURE: 140°F (60°C)
