Home Hydromatic OSP Effluent PumpsOSP50AB1 20

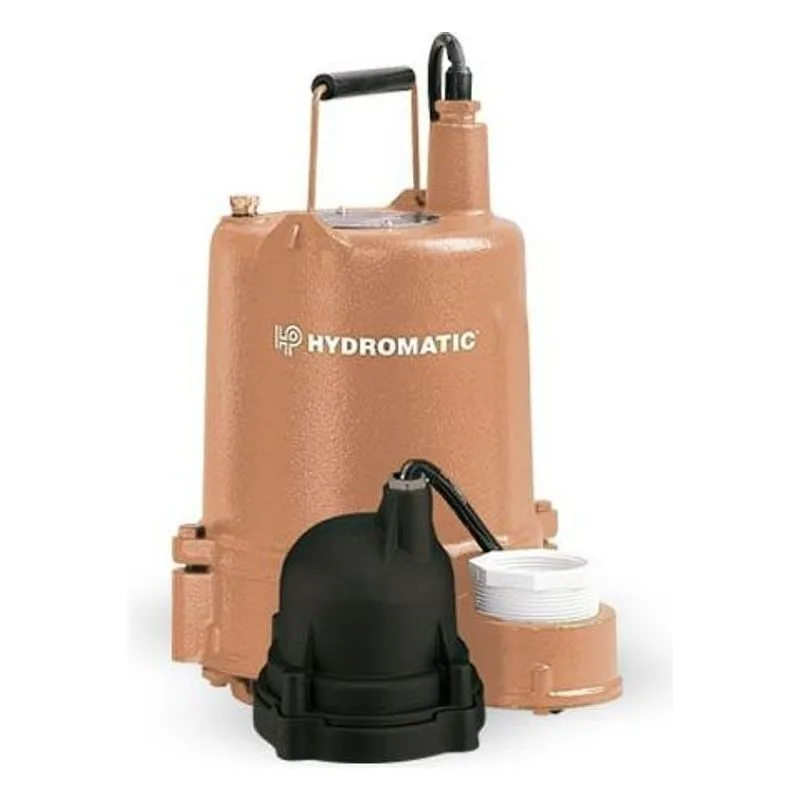

Image shown may not be actual product

OSP50AB1 20

Hydromatic OSP50AB1 20 OSP Navel Bronze Effluent Pump, 1-1/2" /2 Discharge, 1/2 HP, 115 Volts, 1 Phase, 1750 RPM, 5/8" Solids Handling. Replaced by Identical Myers Pump Model MEOSP50AB1 20, Engineering Number 28214D400. Manufactured by the same parent company, Pentair.

Brand: Hydromatic

Series:

OSP Effluent Pumps

Item: OSP50AB1 20Model #: MEOSP50AB1 20

Price on request

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	OSP50B Brochure	View
Data Sheets	OSP50 Specifications	View
Data Sheets	OSP50, OSP50AB Brochure	View
Data Sheets	OSP50AB Specifications	View
Installation & Operation Manuals	OSP50, OSP50AB Manual	View

Series Information

OSP Effluent Pumps Information

Features & Benefits
OSP Effluent Pumps Key Features: Continuous Duty Rated, Naval Bronze model Aailable for Corrosion Resistance, Carbon/Ceramic Type 21 Mechanical Shaft Seal, Oil-filled Motor with Automatic Thermal Overload for Maximum Protection, Upper and Lower Single-Row Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Replacement
General Description
OSP Effluent Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron OR Naval Bronze HORSEPOWER: 1/2 HP MAXIMUM HEAD: 25 ft. (7.6 m) MAXIMUM CAPACITY: 60 GPM (3.8 LPS) FLOW at 10' LIFT: 52 GPM SWITCH TYPE: Diaphragm Pressure Switch MINIMUM SUMP DIAMETER: Simplex: 18" Duplex: 30" DISCHARGE PIPE SIZE: 1-1/2" NPT (38.1 mm) OR 2" NPT (50.8 mm) MAXIMUM SOLIDS HANDLING SIZE: 5/8" AMP DRAW (full load): 9.5 on 115v / 5.2 on 230v CORD LENGTH: 10' SJTW (20' optional) VOLTAGE: Available in 115v or 230v AC, 60 Hz (Naval Bronze models in 115v only) MAXIMUM LIQUID TEMPERATURE: 140°F (60°C) MOTOR: 1/2 HP split-phase with Thermal Overload IMPELLER OPTIONS: Open vane Naval Bronze or Thermoplastic Vortex

Popular Series

Series associated to this product and brand

OSP50AB1 20

Brand: Hydromatic

Series:

OSP Effluent Pumps

Item: OSP50AB1 20Model #: MEOSP50AB1 20

Type

Title

Link

Brochures

Data Sheets

Data Sheets

OSP50, OSP50AB Brochure

View

Data Sheets

OSP50AB Specifications

View

Installation & Operation Manuals

OSP50, OSP50AB Manual

View

Features & Benefits

OSP Effluent Pumps Key Features: Continuous Duty Rated, Naval Bronze model Aailable for Corrosion Resistance, Carbon/Ceramic Type 21 Mechanical Shaft Seal, Oil-filled Motor with Automatic Thermal Overload for Maximum Protection, Upper and Lower Single-Row Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Replacement

General Description

OSP Effluent Pump General Specifications:
BODY CONSTRUCTION: Class 30 Cast Iron OR Naval Bronze
HORSEPOWER: 1/2 HP
MAXIMUM HEAD: 25 ft. (7.6 m)
MAXIMUM CAPACITY: 60 GPM (3.8 LPS)
FLOW at 10' LIFT: 52 GPM
SWITCH TYPE: Diaphragm Pressure Switch
MINIMUM SUMP DIAMETER: Simplex: 18" Duplex: 30"
DISCHARGE PIPE SIZE: 1-1/2" NPT (38.1 mm) OR 2" NPT (50.8 mm)
MAXIMUM SOLIDS HANDLING SIZE: 5/8"
AMP DRAW (full load): 9.5 on 115v / 5.2 on 230v
CORD LENGTH: 10' SJTW (20' optional)
VOLTAGE: Available in 115v or 230v AC, 60 Hz (Naval Bronze models in 115v only)
MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
MOTOR: 1/2 HP split-phase with Thermal Overload
IMPELLER OPTIONS: Open vane Naval Bronze or Thermoplastic Vortex
