Rail Systems & Accessories

About Rail Systems & Accessories

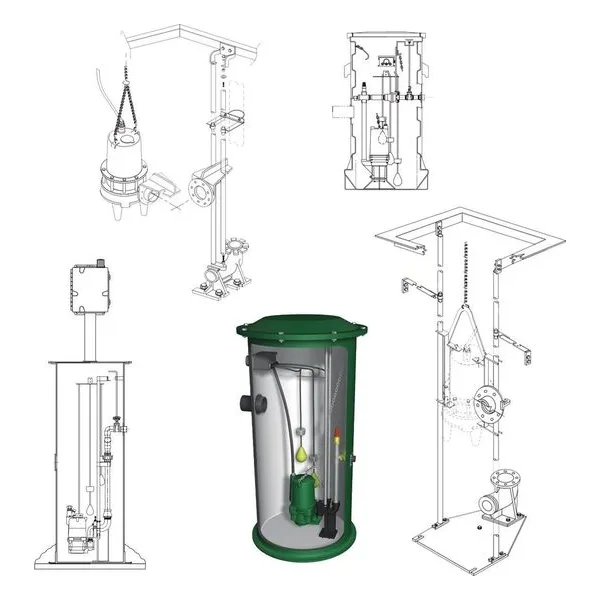

Hydromatic Rail Systems & Accessories

Pentair Submersible - EZ-Out, Hydrorail, MTM, TG Pro, TL Pro, TL Series & All Accessories (Basins & Floats)

EZ-OUT GUIDE RAIL SYSTEM

Package - Pre-assembled package. To install, simply slide pump assembly down guide rail system, connect plumbing and electrical service, and system is ready to go

Cover - Rated to withstand momentary loads of residential lawn equipment

Guide Rails - Package includes pre-assembled cast iron discharge elbow, discharge flanges, steel spacer, stainless steel upper guide rail bracket and lift chain. Also includes bronze gate valve and ball check valve

Junction Box - Allows for simple electrical connections, easy service access and protection of connections

Hydromatic TG-Pro Complete Grinder System

Key Features:

Flexible piping system with slip-fit discharge connection ensures easy installation and removal for all 2 HP grinders. Pumps come with a stainless steel stand.
Compatible with HPD200, HPG200, or HPGR200 models.
Heavy-duty 1¼" flexible pipe and slip-fit connection facilitate quick installations and servicing.
Optional fiberglass basins are available.
Configurations, rails, and accessories include:
- Rail Systems
- Controls and Accessories

Hydromatic TL-Pro Complete Grinder System

Key Features:

A turnkey lift-out rail system for centrifugal grinders that simplifies pump installation and removal.
Utilizes a cast iron discharge elbow with an integrated ball check valve, and available with spark-proof rails for hazardous locations.
Compatible with HPGR200, HPGX200, or HPG200 models.
Lift-out valve includes an integral ball check valve.
Optional fiberglass basins.
Available configurations, rail systems, and accessories:
- Rail Systems
- Controls and Accessories

Showing Results for "Rail Systems & Accessories"

351 Products

Filters

No filters available

Hydromatic

039620165

Pentair Hydromatic 039620165 Sewage Pump Electrical Accessories, Float Bracket, Door and Frame Mounted, Up to 5 Floats.

$597.36

Hydromatic

039620295

Pentair Hydromatic 039620295 Sewage Pump Electrical Accessories, Float Bracket, Wall Mounted, 5 Floats.

$1,194.72

Hydromatic

039620365

Pentair Hydromatic 039620365 Sewage Pump Electrical Accessories, Float Bracket, Wall Mounted, 4 Floats.

$361.56

Hydromatic

039620375

Pentair Hydromatic 039620375 Sewage Pump Electrical Accessories, Float Bracket, Door and Frame Mounted, Up to 5 Floats.

$597.36

Hydromatic

055200005

Pentair Hydromatic 055200005 Sewage Pump Rail System Accessories, All Discharge Piping with Ball Check Valve, Discharge 3' from basin bottom. Riser pipe, 90° elbow, pipe nipple and ball check valve w/ hydraulically sealed discharge flange and diaphragm. 2 required for duplex systems, 1-1/4" NPT - Diaphragm seal .

$896.04

Hydromatic

063750135

Pentair Hydromatic 063750135 Sewage Pump Rail System Accessories, HPG(X) Gate Valve Assembly, 1-1/4" Discharge, Flange adapter and brass gate valve. 2 required for duplex systems. Tank depths 6' or less.

$746.70

Hydromatic

063750635

Pentair Hydromatic 063750635 Sewage Pump Rail System Accessories, HPG(X) Gate Valve Assembly, 1-1/4" Discharge, Flange adapter and brass gate valve. 2 required for duplex systems. Tank depths 6' or less.

$825.30

Hydromatic

063750975

Pentair Hydromatic 063750975 Sewage Pump Rail System Accessories, HPGX Discharge Piping with Ball Check Valve, Discharge 3' from basin bottom. Riser pipe, 90° elbow, pipe nipple and ball check valve w/ hydraulically sealed discharge flange and diaphragm. 2 required for duplex systems.

$2,468.04

Hydromatic

063751565

Pentair Hydromatic 063751565 Sewage Pump Rail System Accessories, HPG Discharge Piping with Ball Check Valve, Discharge 3' from basin bottom. Riser pipe, 90° elbow, pipe nipple and ball check valve w/ hydraulically sealed discharge flange and diaphragm. 2 required for duplex systems.

$1,273.32

Hydromatic

063751575

Pentair Hydromatic 063751575 Sewage Pump Rail System Accessories, HPG Discharge Piping with Ball Check Valve, Discharge 3' from basin bottom. Riser pipe, 90° elbow, pipe nipple and ball check valve w/ hydraulically sealed discharge flange and diaphragm. 2 required for duplex systems, CI Valve (SST pipe).

$1,799.94

Hydromatic

066143025

Pentair Hydromatic 066143025 Sewage Pump Rail System Accessories, Flange Adapter Gate Valve Assembly, 1-1/4" Discharge, Flange adapter and brass gate valve. 2 required for duplex systems. Tank depths 6' or less.

$463.74

Hydromatic

066710015

Pentair Hydromatic 066710015 Hydrorail Sewage Pump Rail System. Base Plate Assembly for S6L(X) Model Pumps. Base Plate Assembly includes base plate, bottom rail guides and discharge elbow. (req 1)

$5,494.14

Hydromatic

066720045

Pentair Hydromatic 066720045 Hydrorail Sewage Pump Rail System. Base Plate Assembly for S4H Model Pumps. Base Plate Assembly includes base plate, bottom rail guides and discharge elbow. (req 1)

$4,676.70

Hydromatic

069030017

Pentair Hydromatic 069030017 Sewage Pump Rail System Accessories, HPG Pump Guide Kit Assembly, Galvanized, ORDER 2 FOR DUPLEX SYSTEMS.

$691.68

Hydromatic

069120025

Pentair Hydromatic 069120025 Sewage Pump Rail System Accessories, Flange Adapter Gate Valve Assembly, 2" Discharge, Flange adapter and brass gate valve. 2 required for duplex systems. Tank depths 6' or less.

$715.26

Hydromatic

069120075

Pentair Hydromatic 069120075 Sewage Pump Rail System Accessories, Flange Adapter Gate Valve Assembly, 2" Discharge, Flange adapter and brass gate valve. 2 required for duplex systems. Tank depths 6' or less.

$597.36

Hydromatic

069180015

Pentair Hydromatic 069180015 Sewage Pump Rail System Accessories, All Discharge Piping with Ball Check Valve, Discharge 3' from basin bottom. Riser pipe, 90° elbow, pipe nipple and ball check valve w/ hydraulically sealed discharge flange and diaphragm. 2 required for duplex systems, 2" NPT -Diaphragm seal .

$1,147.56

Hydromatic

071060015

Pentair Hydromatic 071060015 Hydrorail Sewage Pump Rail System. Sealing Flange - Ordinary Location for S4H(X) Model Pumps. Hydraulic Sealing Flange incl the sealing flange with diaphragm and pump mounting hardware. (req 1)

$1,862.82

Hydromatic

071820005

Pentair Hydromatic 071820005 Hydrorail Sewage Pump Rail System. Sealing Flange - Ordinary Location for S6L(X)/S6A(X) Model Pumps. Hydraulic Sealing Flange incl the sealing flange with diaphragm and pump mounting hardware. (req 1)

$2,200.80

Hydromatic

071830015

Pentair Hydromatic 071830015 Hydrorail Sewage Pump Rail System. Sealing Flange - Ordinary Location for S4N(X), S4NRC/NVX, S4P(X), S4T(X), S4B(X), S4HRC/HVX, S4M(X), S4MRC/MVX, S4L(X), S4K(X), S4LRC/LVX Model Pumps. Hydraulic Sealing Flange incl the sealing flange with diaphragm and pump mounting hardware. (req 1)

$1,650.60

Hydromatic

077340437

Pentair Hydromatic 077340437 Sewage Pump Rail System Accessories, HPGH(X) Duplex Guide Rail Brace, Top Guide Rail Braces, Sump Diameter 48" - 72", SST.

$2,868.90

Hydromatic

077343077

Pentair Hydromatic 077343077 Sewage Pump Rail System Accessories, HPGH(X) Duplex Guide Rail Brace, Intermediate Guide Rail Braces, Sump Diameter 48" - 72", SST.

$3,293.34

Hydromatic

077343087

Pentair Hydromatic 077343087 Sewage Pump Rail System Accessories, HPG(X) Duplex Guide Rail Brace, Intermediate Guide Rail Braces, Sump Diameter 36" - 72", SST.

$3,293.34

Hydromatic

077343207

Pentair Hydromatic 077343207 Sewage Pump Rail System Accessories, HPGF(X) Duplex Guide Rail Brace, Intermediate Guide Rail Braces, Sump Diameter 48" - 72", SST.

$3,780.66
