Image shown may not be actual product
528280147

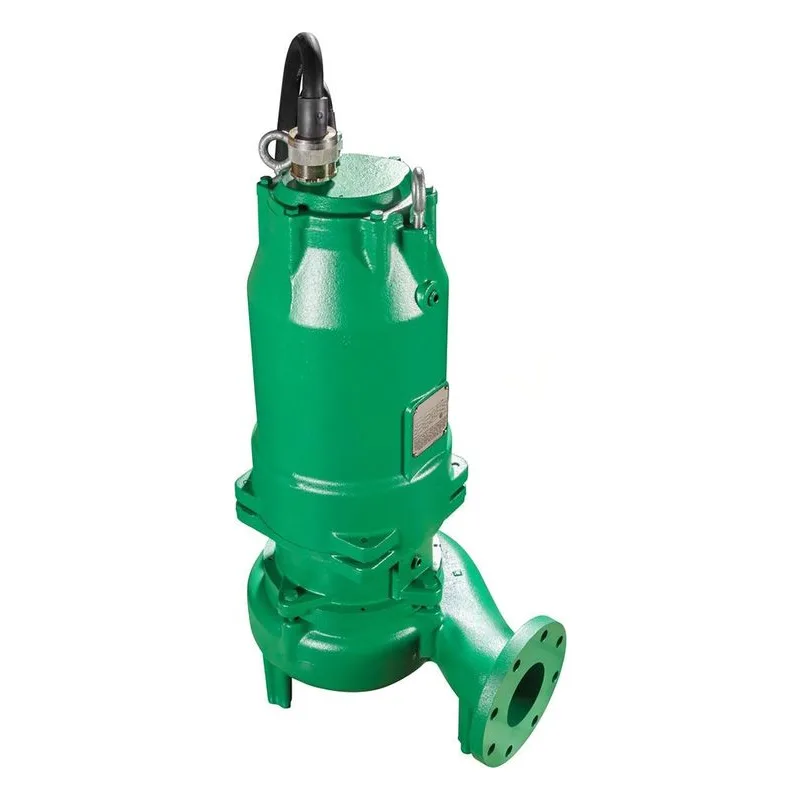

Pentair Hydromatic 528280147 C4SXP HPE Series Premium Efficient Solids Handling Chopper Pump, Model C4SXP1000GC. 10 HP, 575 Volts, 3 Ph (Three Phase), 1750 RPM, Premium Efficient NEMA MG1, IEC 60034 - 30 Level IE3 Motor. 4" Discharge, Carbon/Silicon Carbide Type 2100 (Upper); Type 2 (Lower) Seal. Cast Iron Housing & Casing, 416 Stainless Steel Shaft, Ductile Iron Balanced, Semi-Open Impeller, 440 Stainless Steel Hardened Cutter, Radial Single Row-Ball (Upper) / Thrust Double Row, Anglular Contact-Ball (Lower) Bearings. W or SOOW, Water Resistant 10-4 Cord.
List: $25,130.00
$19,752.18
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
Pentair Hydromatic 528280147 C4SXP HPE Series Premium Efficient Solids Handling Chopper Pump, Model C4SXP1000GC. 10 HP, 575 Volts, 3 Ph (Three Phase), 1750 RPM, Premium Efficient NEMA MG1, IEC 60034 - 30 Level IE3 Motor. 4" Discharge, Carbon/Silicon Carbide Type 2100 (Upper); Type 2 (Lower) Seal. Cast Iron Housing & Casing, 416 Stainless Steel Shaft, Ductile Iron Balanced, Semi-Open Impeller, 440 Stainless Steel Hardened Cutter, Radial Single Row-Ball (Upper) / Thrust Double Row, Anglular Contact-Ball (Lower) Bearings. W or SOOW, Water Resistant 10-4 Cord.
Literature & Manuals
Find the manuals, product sheets and all the information you need
- HPE Premium Efficient Solids Handling BrochureBrochures (PDF)
- C4S(X)P Technical DatasheetData Sheets (PDF)
- HPE Premium Efficient Electrical DatasheetData Sheets (PDF)
- C4SP Installation & Service ManualInstallation & Operation Manuals (PDF)
| Type | Title | Link |
|---|---|---|
| Brochures | HPE Premium Efficient Solids Handling Brochure | View |
| Data Sheets | C4S(X)P Technical Datasheet | View |
| Data Sheets | HPE Premium Efficient Electrical Datasheet | View |
| Installation & Operation Manuals | C4SP Installation & Service Manual | View |
