Image shown may not be actual product
528340077

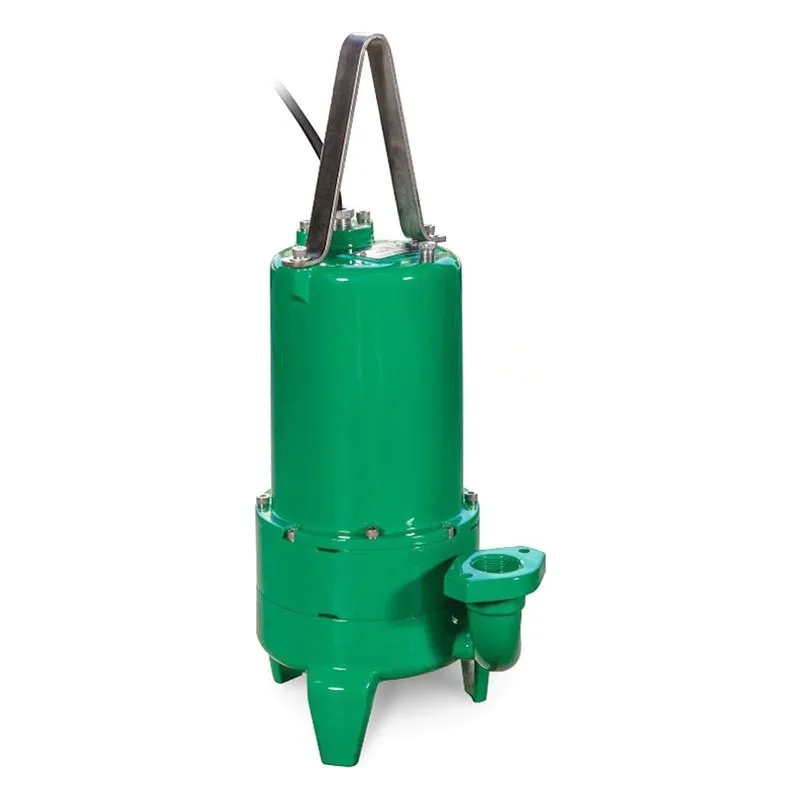

Pentair Hydromatic 528340077 HV200 Series Grinder Pump, Model HVS200M4-2-35. 2 HP, 460 Volts, 60 Hz, 3 Ph (Three Phase), 3450 RPM, Induction Run Motor. 1-1/4" NPTF Discharge, Type 21 Seal. Cast Iron Housing & Casing, 416 Stainless Steel Shaft, 316 Stainless Steel / CF8M Semi-Open 8-Vane Impeller, 440C Hardened Cutter, Radial Single Row Ball 6203 (Upper) / Double Row Angular Contact 3205A (Lower) Bearings. 35' SOOW 12-7 Cord.
List: $4,440.00
$3,489.84
1
Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.
Returns accepted within 30 days. View Returns Policy
Estimate Shipping
Overview
Pentair Hydromatic 528340077 HV200 Series Grinder Pump, Model HVS200M4-2-35. 2 HP, 460 Volts, 60 Hz, 3 Ph (Three Phase), 3450 RPM, Induction Run Motor. 1-1/4" NPTF Discharge, Type 21 Seal. Cast Iron Housing & Casing, 416 Stainless Steel Shaft, 316 Stainless Steel / CF8M Semi-Open 8-Vane Impeller, 440C Hardened Cutter, Radial Single Row Ball 6203 (Upper) / Double Row Angular Contact 3205A (Lower) Bearings. 35' SOOW 12-7 Cord.
Literature & Manuals
Find the manuals, product sheets and all the information you need
| Type | Title | Link |
|---|---|---|
| Brochures | HV200 Brochure | View |
| Data Sheets | HVH HVS HVF200 Dimensional Datasheet | View |
| Data Sheets | HVH HVS HVF200 Electrical Datasheet | View |
| Data Sheets | HVH HVS HVF200 Technical Datasheet | View |
| Installation & Operation Manuals | HVF200 Installation & Service Manual | View |
