S3SD150M2-4

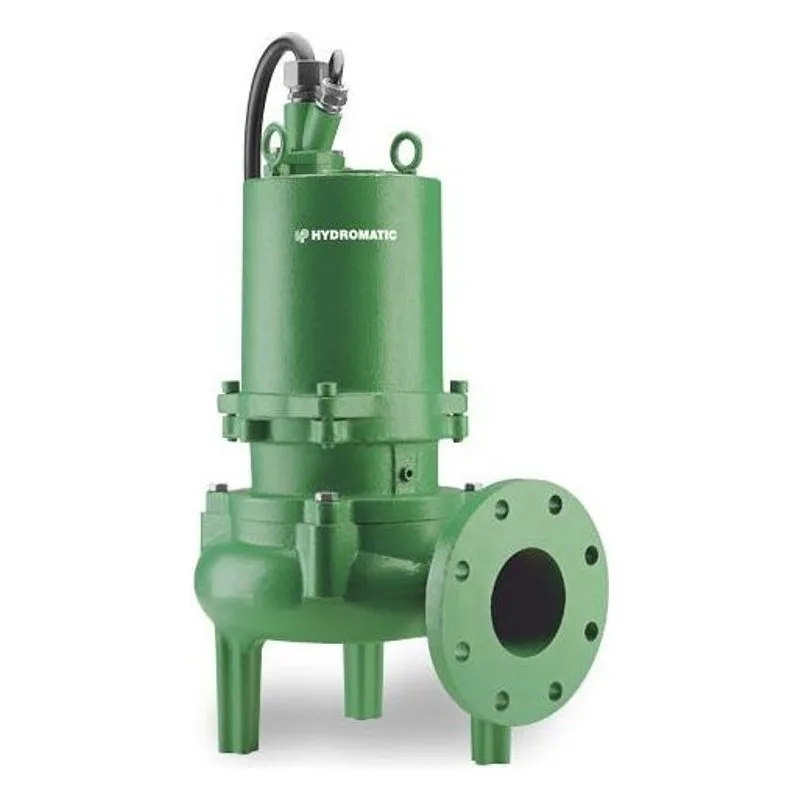

Hydromatic S3SD150M2-4 S3SD Series Double Seal Sewage Ejector Pump, 3" Discharge, 1.5 HP, 230 Volts, 1 Phase, 1750 RPM, 2-1/2" Solids Handling

Brand: Hydromatic

Series:

S3SD SB3SD Sewage Ejector Pumps

Item: S3SD150M2-4

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Hydromatic S3SD150M2-4 S3SD Series Double Seal Sewage Ejector Pump, 3" Discharge, 1.5 HP, 230 Volts, 1 Phase, 1750 RPM, 2-1/2" Solids Handling

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	S3SD, S4SD, SB3SD, SB4SD Brochure	View
Data Sheets	S3S, S3SD, SB3S, SB3SD Specifications	View
Data Sheets	S3SD Specifications	View
Data Sheets	S3SD, SB3SD 1150 RPM Specifications	View
Data Sheets	S3SD, SB3SD Specifications	View
Data Sheets	SB3SD Specifications	View
Installation & Operation Manuals	S3SD, S4SD, SB3SD, SB4SD Manual	View

Series Information

S3SD SB3SD Sewage Ejector Pumps Information

Features & Benefits
S3SD SB3SD Sewage Ejector Pumps Key Features: Available configurations, rails and accessories: Rail Systems Available, Controls and Accessories Available
General Description
S3SD SB3SD Sewage Ejector Pump General Specifications: HORSEPOWER: 1150 rpm: 1-2 HP / 1750 RPM: 1.5-7.5 HP MATERIALS OF CONSTRUCTION: Class 30 cast iron; ASTM A-48 MAXIMUM HEAD: up to 44 ft. (13.4 m) MAXIMUM CAPACITY: up to 385 GPM (24.3 LPS) SWITCH TYPE: Control panel requiredMaterials of Construction Class 30 cast iron; ASTM MINIMUM SUMP DIAMETER: Simplex = 30" (762 mm) DISCHARGE PIPE SIZE: 3" (76.2 mm) NPT MAXIMUM SOLIDS HANDLING SIZE: 2.5" (63.5 mm) CORD LENGTH: 35' STW cable VOLTAGE: 1ø, 230V, 60Hz;1.5-7.5 HP / 3ø, 200V/230V/460V/575V, 60Hz MAXIMUM WATER TEMPERATURE: 140°F (60°C) MOTOR: Enclosed, oil cooled induction IMPELLER CONSTRUCTION: Ductile iron; ASTM 536

Related Products and Parts

Popular Series

Series associated to this product and brand

Type

Title

Link

S3SD, S4SD, SB3SD, SB4SD Brochure

View

S3S, S3SD, SB3S, SB3SD Specifications

View

S3SD Specifications

View

S3SD, SB3SD 1150 RPM Specifications

View

S3SD, SB3SD Specifications

View

SB3SD Specifications

View

S3SD, S4SD, SB3SD, SB4SD Manual

View

Features & Benefits

S3SD SB3SD Sewage Ejector Pumps Key Features: Available configurations, rails and accessories: Rail Systems Available, Controls and Accessories Available

General Description

S3SD SB3SD Sewage Ejector Pump General Specifications:
HORSEPOWER: 1150 rpm: 1-2 HP / 1750 RPM: 1.5-7.5 HP
MATERIALS OF CONSTRUCTION: Class 30 cast iron; ASTM A-48
MAXIMUM HEAD: up to 44 ft. (13.4 m)
MAXIMUM CAPACITY: up to 385 GPM (24.3 LPS)
SWITCH TYPE: Control panel requiredMaterials of Construction Class 30 cast iron; ASTM
MINIMUM SUMP DIAMETER: Simplex = 30" (762 mm)
DISCHARGE PIPE SIZE: 3" (76.2 mm) NPT
MAXIMUM SOLIDS HANDLING SIZE: 2.5" (63.5 mm)
CORD LENGTH: 35' STW cable
VOLTAGE: 1ø, 230V, 60Hz;1.5-7.5 HP / 3ø, 200V/230V/460V/575V, 60Hz
MAXIMUM WATER TEMPERATURE: 140°F (60°C)
MOTOR: Enclosed, oil cooled induction
IMPELLER CONSTRUCTION: Ductile iron; ASTM 536
