S3W100M2-2

Name: S3W100M2-2 PumpCatalog Hydromatic
Brand: Hydromatic
SKU: S3W100M2-2
Price: 2876.76 USD
Availability: OutOfStock

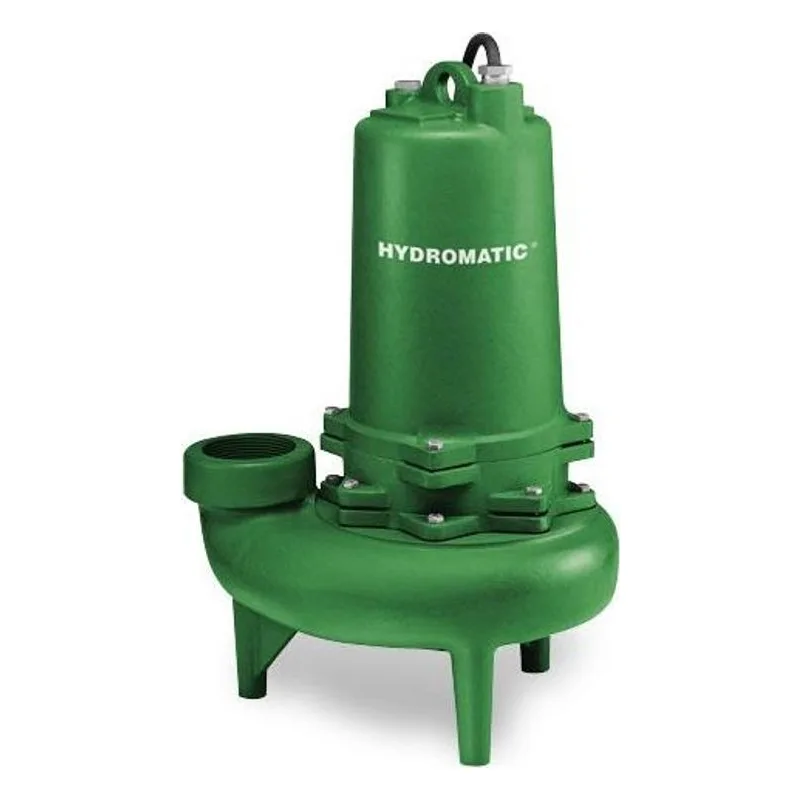

Hydromatic S3W100M2-2 S3W Series Single Seal Solids Handling Pump, 3" Discharge, 1 HP, 230 Volts, 1 Phase, 3450 RPM, 2-1/2" Solids Handling

Brand: Hydromatic

Series:

S3W Solids Handling Pumps

Item: S3W100M2-2

List: ~~$3,660.00~~

$2,876.76

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Hydromatic S3W100M2-2 S3W Series Single Seal Solids Handling Pump, 3" Discharge, 1 HP, 230 Volts, 1 Phase, 3450 RPM, 2-1/2" Solids Handling

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	S3W 1750 Specifications	View
Data Sheets	S3W 1750 Specifications	View
Data Sheets	S3W 3450 Specifications	View
Data Sheets	S3W 3450 Specifications	View
Data Sheets	S3W Specifications	View
Installation & Operation Manuals	S3W, S3WR Manual	View

Series Information

S3W Solids Handling Pumps Information

Features & Benefits
S3W Solids Handling Pumps Key Features: Two-vaned rounded port impellers, Offered in two speeds, Hydraulic end virtually maintenance-free, Volute seal ring replaceable in minutes, Oil-filled motor for constant bearing lubrication, High torque, permanent split capacitor (PSC), single-phase motors; No starting switches or relays, Optional seal leak probe (dual seal motors only), Current and temperature overload (single phase only)
General Description
S3W Solids Handling Pump General Specifications: BODY CONSTRUCTION: Class 30 cast iron; ASTM A48 HORSEPOWER: 1.5–3 HP (1750 RPM) or 1–3 HP (3450 RPM) MAXIMUM HEAD: up to 92 ft. (28.0 m) MAXIMUM CAPACITY: up to 330 GPM (20.8 LPS) SWITCH TYPE: Control panel required MINIMUM SUMP DIAMETER: Duplex = 48" (1219.2 mm) DISCHARGE PIPE SIZE: 3" (76.2 mm) NPT vertical MAXIMUM SOLIDS HANDLING SIZE: 1750 RPM: 2.5" (63.5 mm) / 3450 RPM: 2" (50.6 mm) AMP DRAW (full load): model and voltage dependent CORD LENGTH: 20'; type SJOW/SJOWA VOLTAGE: 1ø, 208V/230V, 60Hz / 3ø, 208V/230V/460V/575V, 60Hz MAXIMUM LIQUID TEMPERATURE: 140°F (60°C) MOTOR: Enclosed, oil cooled induction IMPELLER CONSTRUCTION: Ductile iron; Class 65; ASTM A536

Related Products and Parts

Popular Series

Series associated to this product and brand

Type

Title

Link

S3W 1750 Specifications

View

S3W 1750 Specifications

View

S3W 3450 Specifications

View

S3W 3450 Specifications

View

S3W Specifications

View

S3W, S3WR Manual

View

Features & Benefits

S3W Solids Handling Pumps Key Features: Two-vaned rounded port impellers, Offered in two speeds, Hydraulic end virtually maintenance-free, Volute seal ring replaceable in minutes, Oil-filled motor for constant bearing lubrication, High torque, permanent split capacitor (PSC), single-phase motors; No starting switches or relays, Optional seal leak probe (dual seal motors only), Current and temperature overload (single phase only)

General Description

S3W Solids Handling Pump General Specifications:
BODY CONSTRUCTION: Class 30 cast iron; ASTM A48
HORSEPOWER: 1.5–3 HP (1750 RPM) or 1–3 HP (3450 RPM)
MAXIMUM HEAD: up to 92 ft. (28.0 m)
MAXIMUM CAPACITY: up to 330 GPM (20.8 LPS)
SWITCH TYPE: Control panel required
MINIMUM SUMP DIAMETER: Duplex = 48" (1219.2 mm)
DISCHARGE PIPE SIZE: 3" (76.2 mm) NPT vertical
MAXIMUM SOLIDS HANDLING SIZE: 1750 RPM: 2.5" (63.5 mm) / 3450 RPM: 2" (50.6 mm)
AMP DRAW (full load): model and voltage dependent
CORD LENGTH: 20'; type SJOW/SJOWA
VOLTAGE: 1ø, 208V/230V, 60Hz / 3ø, 208V/230V/460V/575V, 60Hz
MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
MOTOR: Enclosed, oil cooled induction
IMPELLER CONSTRUCTION: Ductile iron; Class 65; ASTM A536
