SKHS100A2 20

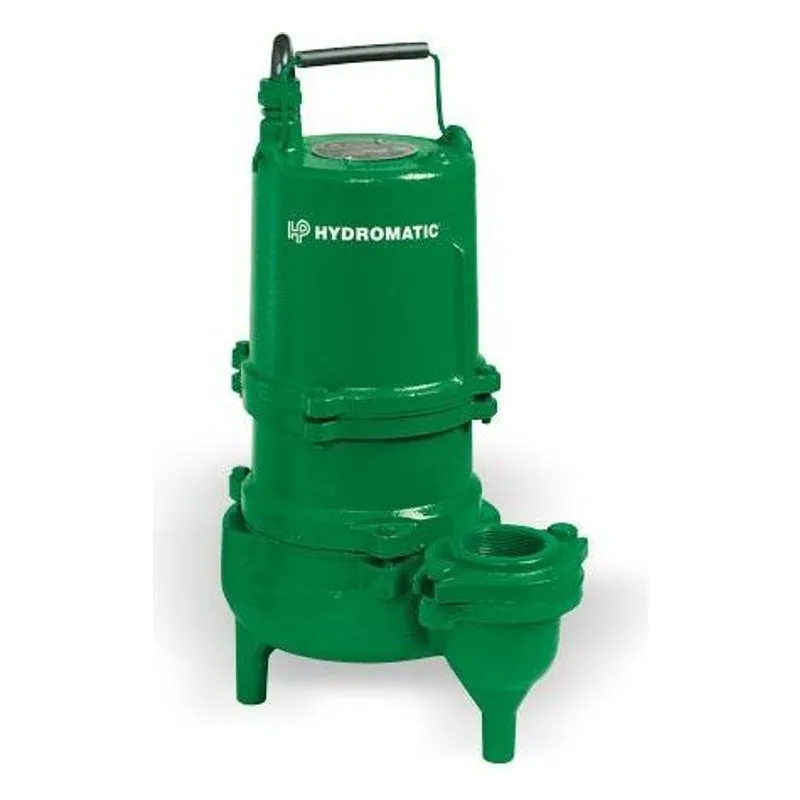

Hydromatic SKHS100A2 20 SKHS Series Cast Iron High Head Sewage Pump, 2" Discharge, 1 HP, 230 Volts, 1 Phase, 3450 RPM, 2" Solids Handling. Replaced by Identical Myers Pump Model MSKHS100A2 20, Engineering Number 28220D102. Manufactured by the same parent company, Pentair.

Brand: Hydromatic

Series:

SKHS Sewage Ejector Pumps

Item: SKHS100A2 20Model #: MSKHS100A2 20

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	SKHS Specifications	View
Installation & Operation Manuals	SKHS Manual	View

Series Information

SKHS Sewage Ejector Pumps Information

Features & Benefits
SKHS Sewage Ejector Pumps Key Features: Carbon-Ceramic Type 21 Mechanical Shaft Seal, Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection (single phase models), Upper and Lower Single Row Ball-Bearing Construction, Submersible, Two-Vane, Semi-Open Cast Iron Impeller, Piggyback Plug Available for Easy Maintenance and Switch Replacement
General Description
SKHS Sewage Ejector Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron HORSEPOWER: available in 1/2 thru 2 HP MAXIMUM HEAD: to 45' (13.7m) MAXIMUM CAPACITY: SKHS200: 175 GPM (11.0 LPS) FLOW at 10' LIFT: n/a -- 10' Head is Below Recommended Performance Range for These Pumps SWITCH TYPE: Wide-angle Tethered style; Manual Available MINIMUM SUMP DIAMETER: Simplex: 24" / Duplex: 30" DISCHARGE PIPE SIZE: 2" NPT (3" NPT optional) MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): Varies by HP & Voltage. See Model Spec Sheet CORD LENGTH: 20', 14/3, STMA, on 1-phase; 20', 18/4, STWA on 3-phase VOLTAGE: available in 115v, 208v, 230v, 460v, and 575v MAXIMUM LIQUID TEMPERATURE: 140 F (60 C) IMPELLER CONSTRUCTION: Class 30 Cast Iron, Semi-Open

Related Products and Parts

Popular Series

Series associated to this product and brand

SKHS100A2 20

Brand: Hydromatic

Series:

SKHS Sewage Ejector Pumps

Item: SKHS100A2 20Model #: MSKHS100A2 20

Type

Title

Link

SKHS Specifications

View

SKHS Manual

View

Features & Benefits

SKHS Sewage Ejector Pumps Key Features: Carbon-Ceramic Type 21 Mechanical Shaft Seal, Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection (single phase models), Upper and Lower Single Row Ball-Bearing Construction, Submersible, Two-Vane, Semi-Open Cast Iron Impeller, Piggyback Plug Available for Easy Maintenance and Switch Replacement

General Description

SKHS Sewage Ejector Pump General Specifications:
BODY CONSTRUCTION: Class 30 Cast Iron
HORSEPOWER: available in 1/2 thru 2 HP
MAXIMUM HEAD: to 45' (13.7m)
MAXIMUM CAPACITY: SKHS200: 175 GPM (11.0 LPS)
FLOW at 10' LIFT: n/a -- 10' Head is Below Recommended Performance Range for These Pumps
SWITCH TYPE: Wide-angle Tethered style; Manual Available
MINIMUM SUMP DIAMETER: Simplex: 24" / Duplex: 30"
DISCHARGE PIPE SIZE: 2" NPT (3" NPT optional)
MAXIMUM SOLIDS HANDLING SIZE: 2"
AMP DRAW (full load): Varies by HP & Voltage. See Model Spec Sheet
CORD LENGTH: 20', 14/3, STMA, on 1-phase; 20', 18/4, STWA on 3-phase
VOLTAGE: available in 115v, 208v, 230v, 460v, and 575v
MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)
IMPELLER CONSTRUCTION: Class 30 Cast Iron, Semi-Open
