Home Hydromatic SP Sewage PumpsSP40A2 20

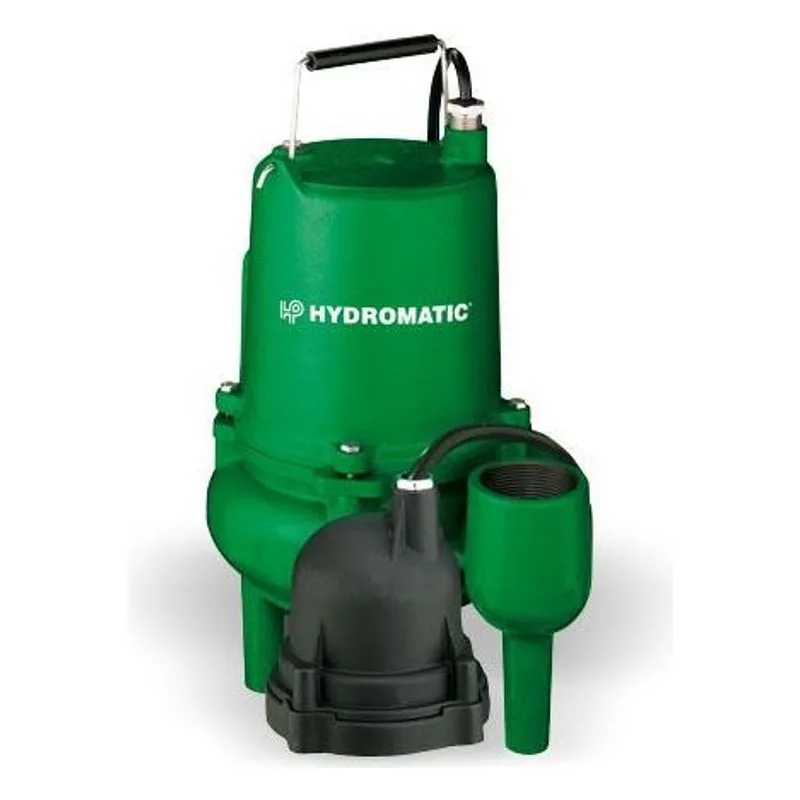

Image shown may not be actual product

SP40A2 20

Hydromatic SP40A2 20 SP Series Sewage Pump, 2" Discharge, 4/10 HP, 230 Volts, 1 Phase, 1750 RPM, 1-1/4" Solids Handling. Replaced by Identical Myers Pump Model MSP40A220, Engineering Number NA. Manufactured by the same parent company, Pentair.

Brand: Hydromatic

Series:

SP Sewage Pumps

Item: SP40A2 20Part #: 518140027Model #: MSP40A220

Price on request

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns generally accepted within 30 days; manufacturer terms apply. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	SP40 Specifications	View
Data Sheets	SP50 Specifications	View
Data Sheets	SP50AB Specifications	View
Installation & Operation Manuals	SP40 Manual	View
Installation & Operation Manuals	SP40 Manual	View

Series Information

SP Sewage Pumps Information

Features & Benefits
SP Sewage Pumps Key Features: Carbon/Ceramic Type 21 Mechanical Shaft Seal, Oil-Filled Motor with Automatic Reset, Thermal Overload for Maximum Protection (on single phase motors only), Upper and Lower Single-Row Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Switch Replacement
General Description
SP Sewage Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron (SP50AB models are naval bronze) HORSEPOWER: Available in 4/10 or 1/2 HP MAXIMUM HEAD: SP40: 25' / SP50: 28' MAXIMUM CAPACITY: SP40: 140 GPM / SP50: 148 GPM FLOW at 10' LIFT: SP40: 112 GPM / SP50: 132 GPM SWITCH TYPE: Available With or Without Diaphragm Pressure Switch MINIMUM SUMP DIAMETER: 18" for simplex / 30" for duplex DISCHARGE PIPE SIZE: SP40: 2" NPT / SP50: 2" NPT (3" opt.) MAXIMUM SOLIDS HANDLING SIZE: SP40: 1-1/4" / SP50: 1-1/2" AMP DRAW (full load): See Spec Sheet (Model, HP, and Voltage Dependent) CORD LENGTH: 10' SJTW (20' optional) VOLTAGE: Available in 115v/230v 1-phase OR 200V, 230V, 460V, or 575V 3-phase MAXIMUM WATER TEMPERATURE: 140 degrees F (60 degrees C) MOTOR: 4/10 or 1/2 HP PSC with Thermal Overload Protection IMPELLER CONSTRUCTION: SP40 is Thermoplastic / SP50 is Cast Iron

Popular Series

Series associated to this product and brand

SP40A2 20

Brand: Hydromatic

Series:

SP Sewage Pumps

Item: SP40A2 20Part #: 518140027Model #: MSP40A220

Type

Title

Link

Data Sheets

Data Sheets

Data Sheets

SP50AB Specifications

View

Installation & Operation Manuals

SP40 Manual

View

Installation & Operation Manuals

SP40 Manual

View

Features & Benefits

SP Sewage Pumps Key Features: Carbon/Ceramic Type 21 Mechanical Shaft Seal, Oil-Filled Motor with Automatic Reset, Thermal Overload for Maximum Protection (on single phase motors only), Upper and Lower Single-Row Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Switch Replacement

General Description

SP Sewage Pump General Specifications:
BODY CONSTRUCTION: Class 30 Cast Iron (SP50AB models are naval bronze)
HORSEPOWER: Available in 4/10 or 1/2 HP
MAXIMUM HEAD: SP40: 25' / SP50: 28'
MAXIMUM CAPACITY: SP40: 140 GPM / SP50: 148 GPM
FLOW at 10' LIFT: SP40: 112 GPM / SP50: 132 GPM
SWITCH TYPE: Available With or Without Diaphragm Pressure Switch
MINIMUM SUMP DIAMETER: 18" for simplex / 30" for duplex
DISCHARGE PIPE SIZE: SP40: 2" NPT / SP50: 2" NPT (3" opt.)
MAXIMUM SOLIDS HANDLING SIZE: SP40: 1-1/4" / SP50: 1-1/2"
AMP DRAW (full load): See Spec Sheet (Model, HP, and Voltage Dependent)
CORD LENGTH: 10' SJTW (20' optional)
VOLTAGE: Available in 115v/230v 1-phase OR 200V, 230V, 460V, or 575V 3-phase
MAXIMUM WATER TEMPERATURE: 140 degrees F (60 degrees C)
MOTOR: 4/10 or 1/2 HP PSC with Thermal Overload Protection
IMPELLER CONSTRUCTION: SP40 is Thermoplastic / SP50 is Cast Iron
