SPD50MH2-2

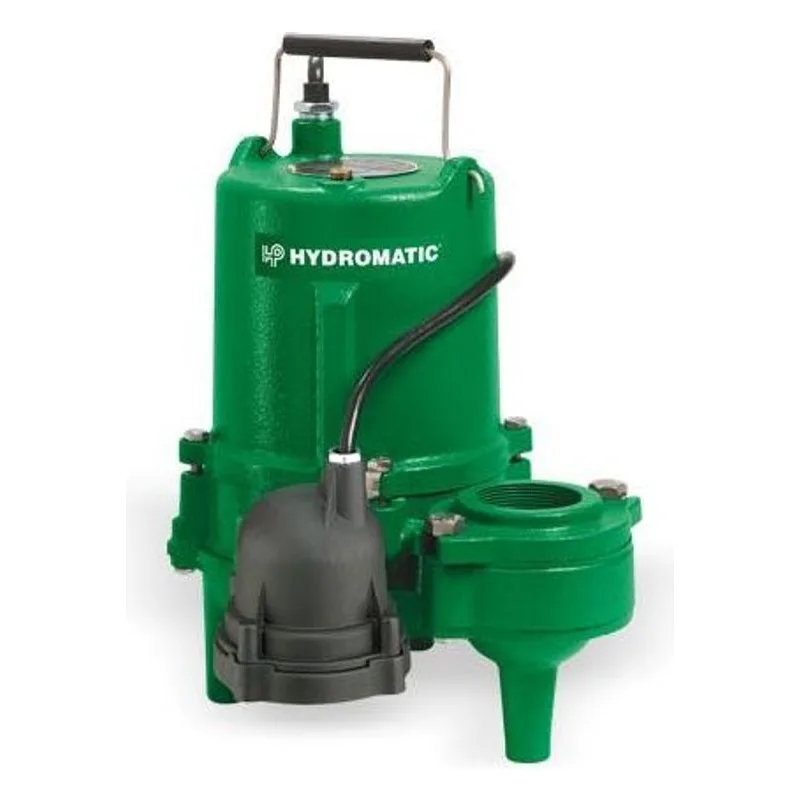

Hydromatic SPD50MH2-2 SPD Series Sump / Effluent Pump, 2" Discharge, 1/2 HP, 230 Volts, 1 Phase, 3450 RPM, 3/4" Solids Handling. Replaced by Identical Myers Pump Model MESPD50MH2-2, Engineering Number 28215D012. Manufactured by the same parent company, Pentair.

Brand: Hydromatic

Series:

SPD High Head Sump Effluent Pumps

Item: SPD50MH2-2Model #: MESPD50MH2-2

Request a Quote

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Data Sheets	SPD50H, SPD100H Specifications	View
Installation & Operation Manuals	SPD50H, SPD100H Manual	View

Series Information

SPD High Head Sump Effluent Pumps Information

Features & Benefits
SPD High Head Sump Effluent Pumps Key Features: Two (2) Carbon/Ceramic Type 21 Mechanical Seals Mounted in Tandem, Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection (single-phase models), Upper & Lower Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Switch Replacement, Optional Seal Failure Probe Warns of Seal Leak, Capacitor Start for Increased Starting Torque (single-phase models)
General Description
SPD High Head Sump Effluent Pump General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron HORSEPOWER: 1/2 HP MAXIMUM HEAD: 50 ft. (15.2 m) MAXIMUM CAPACITY: 112 GPM (7.1 LPS) FLOW at 10' LIFT: 104 GPM SWITCH TYPE: Diaphragm Pressure Switch MINIMUM SUMP DIAMETER: Simplex: 24" / Duplex: 36" DISCHARGE PIPE SIZE: 2" NPT (3" NPT optional) MAXIMUM SOLIDS HANDLING SIZE: 3/4" AMP DRAW (full load): 14 amps on 115v / 7 amps on 230v 1-phase / 3.6 amps on 208v / 3.5 amps on 230v 3-phase / 1.8 amps on 460v / 1.9 amps on 575v CORD LENGTH: 10' SJTW (20' optional) VOLTAGE: Available in 115v or 208v 1-phase, OR 230v, 460v, or 575v 3-phase 60 Hz MAXIMUM LIQUID TEMPERATURE: 140°F (60°C) IMPELLER CONSTRUCTION: Class 30 Cast Iron, 2-vane

Related Products and Parts

Popular Series

Series associated to this product and brand

SPD50MH2-2

Type

Title

Link

SPD50H, SPD100H Specifications

View

SPD50H, SPD100H Manual

View

Features & Benefits

SPD High Head Sump Effluent Pumps Key Features: Two (2) Carbon/Ceramic Type 21 Mechanical Seals Mounted in Tandem, Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection (single-phase models), Upper & Lower Ball Bearing Construction, Piggyback Plug Available for Easy Maintenance and Switch Replacement, Optional Seal Failure Probe Warns of Seal Leak, Capacitor Start for Increased Starting Torque (single-phase models)

General Description

SPD High Head Sump Effluent Pump General Specifications:
BODY CONSTRUCTION: Class 30 Cast Iron
HORSEPOWER: 1/2 HP
MAXIMUM HEAD: 50 ft. (15.2 m)
MAXIMUM CAPACITY: 112 GPM (7.1 LPS)
FLOW at 10' LIFT: 104 GPM
SWITCH TYPE: Diaphragm Pressure Switch
MINIMUM SUMP DIAMETER: Simplex: 24" / Duplex: 36"
DISCHARGE PIPE SIZE: 2" NPT (3" NPT optional)
MAXIMUM SOLIDS HANDLING SIZE: 3/4"
AMP DRAW (full load): 14 amps on 115v / 7 amps on 230v 1-phase / 3.6 amps on 208v / 3.5 amps on 230v 3-phase / 1.8 amps on 460v / 1.9 amps on 575v
CORD LENGTH: 10' SJTW (20' optional)
VOLTAGE: Available in 115v or 208v 1-phase, OR 230v, 460v, or 575v 3-phase 60 Hz
MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
IMPELLER CONSTRUCTION: Class 30 Cast Iron, 2-vane
