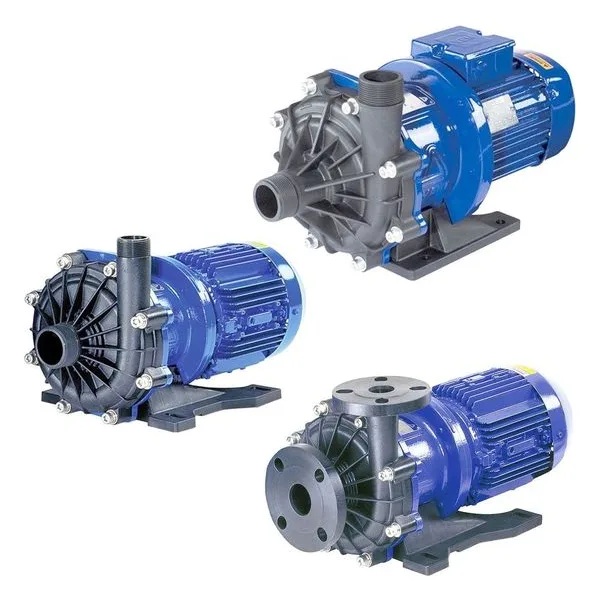

MX / MX-F Magnetic Drive Chemical Transfer Pumps

MX / MX-F Magnetic Drive Chemical Transfer Pumps

The MX Series magnetic drive pumps showcase the latest advancements in non-metallic pump design. Building on the expertise from previous MDH pump generations, the MX Series is crafted to withstand the most demanding operating conditions. These MX(F) pumps are particularly well-suited for transferring chemicals like bleach and sulfuric acid.

Maximum Capacity: Up to 225 Gallons Per Minute (GPM)

Self-Radiating Structure: When equipped with a carbon bearing, the MX Series can handle brief periods of dry running. The patented “self-radiating structure,” along with the proven non-contact principle featuring front and rear supported spindles, significantly enhances resistance to cavitation and operation against a closed discharge valve.

Split Volute Casing: The MX Series is the first resin magnet pump to feature a split volute pump casing, forming a vortex chamber. This design limits the liquid flow from the impeller, efficiently guiding it back to the pump and towards the discharge port, thereby enhancing overall efficiency.

Applications: MX Series pumps are highly recommended for various production processes, including filtering, spraying, washing, plating, chemical transfer/blending, and etching in surface treatment applications.

Easy Installation: The MX Series utilizes standard NEMA frame motors, making installation straightforward. IEC and JIS versions are also available.

Durability: The non-metallic baseplate ensures resistance to corrosion in hostile environments.

MX / MX-F Process Pump Applications:

• Chemical Blending

• Water Treatment

• Plating

• Sodium Hypochlorite Generators

• Bio Fuels

• Desalination

• Fume Scrubbers
