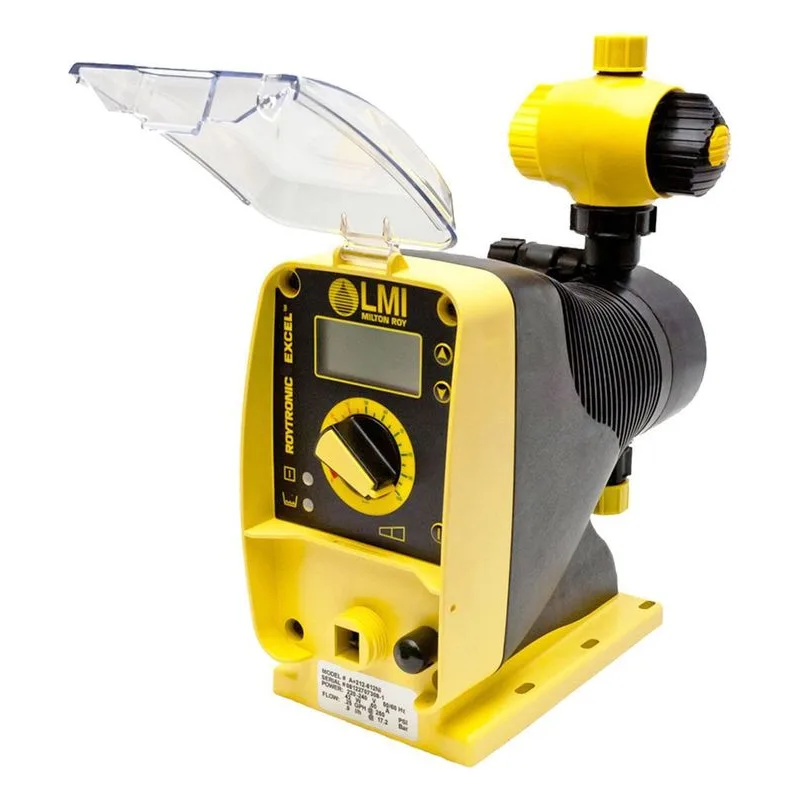

Image shown may not be actual product

AD941-626VP

Name: AD941-626VP PumpCatalog LMI
Brand: LMI
SKU: AD941-626VP
Price: 2256.00 USD
Availability: InStock

LMI Pumps AD941-626VP Excel Series AD Solenoid Electronic Chemical Metering Pump. 0.5 GPH, 250 PSI (17.2 Bar) Maximum Pressure, 50/60 Hz, 110/120V, US Plug. Pulse/Analog Input w/ Dual Manual Control - Advanced Features (Universal Power Supply). High Viscosity Acrylic/Polypropylene Head & Fittings, 316SS Valve Balls, PTFE Valve Seat & O-Ring, Fluorofilm™ Diaphragm. Double-Ball Check Valve, 1/2" NPT/BSP Pipe (SS 1/4" NPT) Suction/Discharge Connections, an Ingersoll Rand Brand.

Brand: LMI

Series:

Series AD

Item: AD941-626VP

$2,256.00

Ships within 1 business day (in-stock items). Delivery typically 1-5 business days.

Returns accepted within 30 days. View Returns Policy

Estimate Shipping

Zip Code

Overview

Literature & Manuals

Find the manuals, product sheets and all the information you need

Type	Title	Link
Brochures	LMI Roytronic Excel Series AD Electronic Metering Pump Brochure	View
Data Sheets	LMI Series AD Electronic Metering Pump Specification Sheet	View
Installation & Operation Manuals	LMI Roytronic Excel Series AD Electronic Metering Pump Instruction Manual	View

Series Information

Series AD Information

General Description
LMI Roytronic Excel Series AD chemical metering pumps shall be positive displacement, Liquifram type pumps. Relevant models are UL/CUL or CE certified. Output volume shall be adjustable while pumps are in operation from zero to maximum capacity.
Pump Controls
Series AD2 metering pumps shall have a liquid crystal display to indicate stroke speed of the pump and theoretical flow. Control and adjustment for stroke frequency shall be by means of a tactile keypad. Adjustment for stroke length shall be by means of a readily accessible dial knob. A pulse indicator light shall flash green between strokes when pumping. The pump shall be equipped with an on/off button and a low level float switch Input. When the low level sensor registers empty, the low level indicator light shall turn red and the pump shall turn off when it registers an empty level.
Drive Assembly
The pump drive shall be totally enclosed with no exposed moving parts. Electronic pulser shall be supplied with quick connect terminals at least 0.110 inch wide (2.79 mm). Electronics shall be housed in a chemical resistant enclosure for maximum protection against chemical spillage. Electrical power consumption shall not exceed 25 watts per hour under full speed and maximum pressure conditions. Pump weight shall not exceed 10 lbs (4.75 kg).
Pressure Relief
Models with the LMI 4-Function Valve installed on a FastPrime or AutoPrime Liquid End are recommended to provide automatic pressure relief.
Materials of Construction
Chemical metering pump housing shall be of chemically resistant glass fiber reinforced thermoplastic. All exposed fasteners shall be stainless steel. Chemical metering pump valves shall be ball type. Valves shall be serviceable by replacing the cartridge valve assembly.
Check Valve / Tubing Connections
A total of 16 ft (4.8 m) of tubing shall be provided per pump complete with compressing connections (on models with tubing connections). A foot valve with integral one piece strainer shall be provided for the suction line (on non-high viscosity models with tubing connections), and an injection check/back pressure valve with 1/2" NPT male connection for the injection point (on models with tubing connections).
