KBL Series

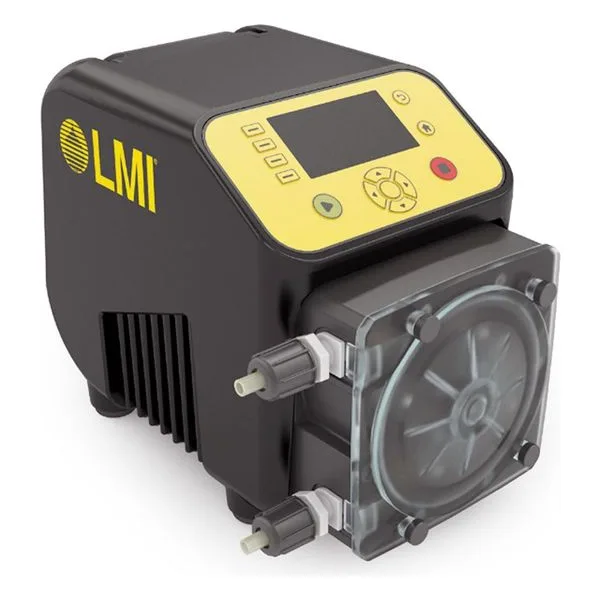

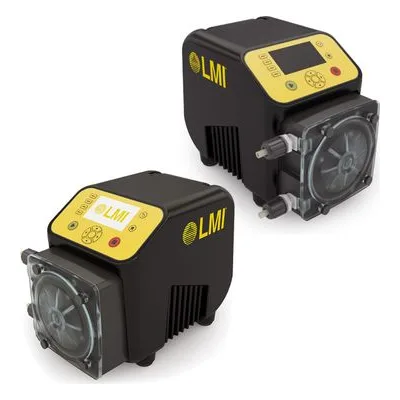

KBL Peristaltic Metering Pumps

LMI's KBL Peristaltic Pumps are self priming to deliver the smoothest chemical feed possible. Manufactured by Ingersol Rand, each model contains a 4.33" LCD color display with standard tube leak detection. These pumps have a huge benefit where you will never have to worry about running the pump dry. These are the perfect peristaltic pump options for industrial water treatment pumping applications.

Pump Features:

• Tool-free tube change

• Improved safety - No rotating parts during tube change

• Easy-to-Use interface with one-button switching between local and remote mode

• USBC interface allows for downloading of operating history and installation of new software versions

• Expandable platform can be field-upgraded to add features and communication options

• Multiple tubing options to cover a wide range of chemicals and applications

• Assembled in USA

• Standard 2-year warranty

Operating Ranges:

• Maximum flow up to 600 lph (158.5 gph "Gallons Per Hour") at full speed

• Up to 7.6 bar (110 psi "Pounds Per Square Inch")

• 200:1 Turndown Ratio

Pumping Applications:

• Industrial Water Treatment

• Ink, Dye, and Pigment

• Sulfuric Acid

• Plating Solutions

• Fungicide/Biocide

• Anti-scalant

• Seed Coating

• Reagents
