4GT

Lutz Drum Pump Motors

B28 Universal Motor
Power - 800 watt/1.07 HP
Voltage - 120V
Frequency - 860 Hz
Enclosure - open drip proof, 16' cord and plug

B36 /MI 4 | B36-SC / MI 4E Speed Control, Universal Motor
Power - 640 watt/0.85 HP
Voltage - 120V (230V available)
Frequency - 60 Hz
Enclosure - open drip proof, 16' cord and plug

B 55-T-5 /MA II 5 | B55-T-7 / MA II 7, Universal Motor
Power - 510 watt/0.68 HP | 700 watt/0.93 HP
Voltage - 120V (230V available)
Frequency - 60 Hz
Enclosure - TEFC, 16' cord and plug

MD-1 (Ex) / MD-2 (Ex), Compressed Air Motors (EN 50 014)
Power - 400 watt / 0.54 HP
Operating Pressure - 87 PSI
Air Consumption - 32 CFM

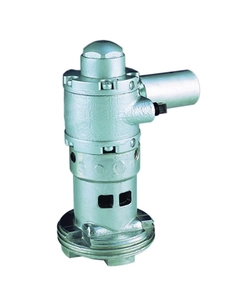

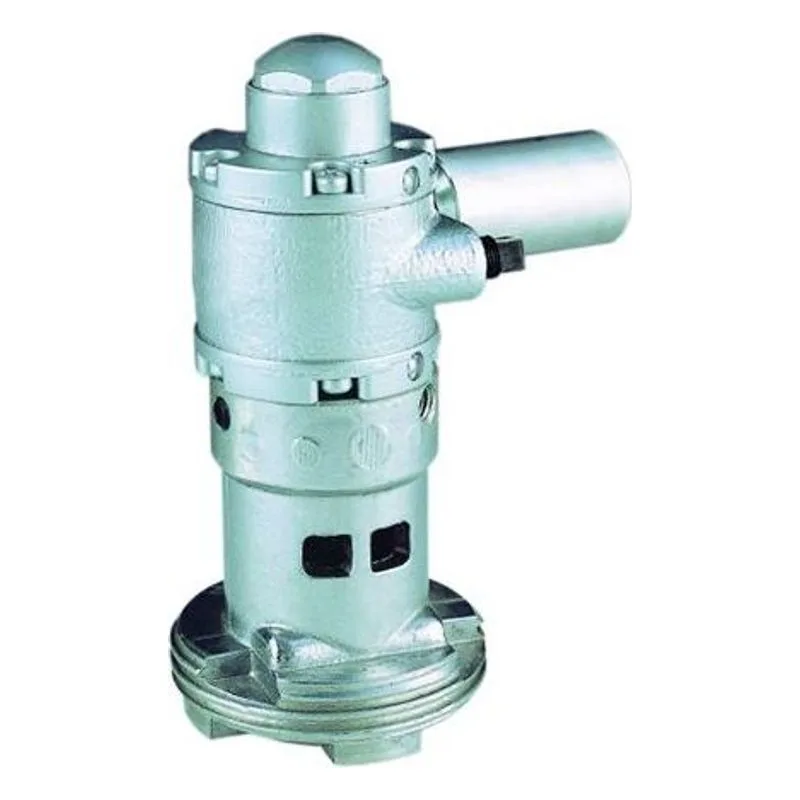

4GT (Non-Ex), Compressed Air Motor
Power - 220 watt / 0.3 HP
Operating Pressure - 87 PSI
Air Consumption - 14 CFM

Silver Star ME I 6 (Ex), Universal Motor
Power - 0.5 HP
Voltage - 120V
Frequency - 60 Hz

MA II 3-12V, Universal Motor
Power - 260 watt / 0.35 HP
Voltage - 12V DC
Enclosure - TEFC, 10' cord with alligator clamps

B4 / GT, Continuous Duty, Three Phase Gear Motor
Power - 750 watt / 1.0 HP
Voltage - 230/440V
Frequency - 60 Hz
Enclosure - TEFC or EX
